Specifications
Product Description

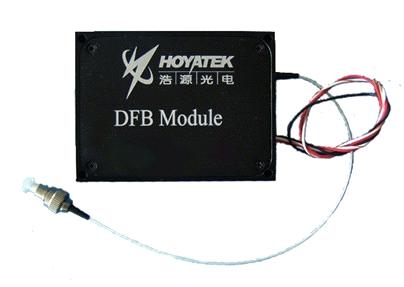

DFB Light source hight stable
Product Feature
Hight stablility
Supper narrow bandwitch
Remote control available
Wavelength tuning available
Output power tuning available
Special wavelength in requested
Product Specification/Models
parameter symbol unit value
min. type max.
nm 1268 - 1650
Operating wavelength
Po mW - 10 50
Output power
®3dB BW nm - - 0.1
Spectrum band width
Ps dB <±0.005 ®15 min.
Spectrum stability
Pss dB <±0.005 ®15 min.
Short-term stability
PsL dB <±0.02 ®8h.
Long-term stability
Top Module :-20 ~ +60
Operating temperature Bench-top:0 ~ +60
Ts -20 ~+70
Storage temperature
RH % 20~80
Relative humidity
Pc W <1.0
Power consumption
Max. Pc W <3
Max. Power Consumption
(L×W×H ) mm Module :100×70×19
Dimensions Bench-top:330×220×110
SMF-28
Pigtail fiber
FC/PC,FC/APC
Connector type
Low Level Alarm
Alarm signal
Module :DC +3.3V,5A;
Power supply Bench-top:AC 220V±10%, 50Hz, 20W
Application
Optical fiber passive component testing
optical communication system testing
optical fiber sensing system
optical network testing
opticcal sensing&communication
DFB Light source hight stable
Product Feature
Hight stablility
Supper narrow bandwitch
Remote control available
Wavelength tuning available
Output power tuning available
Special wavelength in requested
Product Specification/Models
parameter symbol unit value
min. type max.
nm 1268 - 1650
Operating wavelength
Po mW - 10 50
Output power
®3dB BW nm - - 0.1
Spectrum band width
Ps dB <±0.005 ®15 min.
Spectrum stability
Pss dB <±0.005 ®15 min.
Short-term stability
PsL dB <±0.02 ®8h.
Long-term stability
Top Module :-20 ~ +60
Operating temperature Bench-top:0 ~ +60
Ts -20 ~+70
Storage temperature
RH % 20~80
Relative humidity
Pc W <1.0
Power consumption
Max. Pc W <3
Max. Power Consumption
(L×W×H ) mm Module :100×70×19
Dimensions Bench-top:330×220×110
SMF-28
Pigtail fiber
FC/PC,FC/APC
Connector type
Low Level Alarm
Alarm signal
Module :DC +3.3V,5A;
Power supply Bench-top:AC 220V±10%, 50Hz, 20W
Application
Optical fiber passive component testing
optical communication system testing
optical fiber sensing system
optical network testing
opticcal sensing&communication
