Auka Industrial Limited
China Manufacturer with main products: Touch Monitor, Industrial Panel Pc, Camera Field Monitor, CCTV Monitor, Car Computer, Open Frame Monitor, Satellite Finder, LCD Skd Modules |

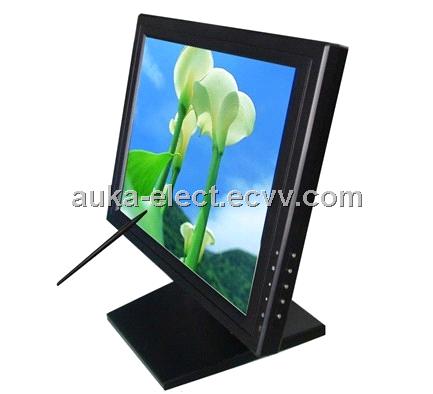

17 Inch TFT LCD Touchscreen VGA Monitor with Metal Bracket
| Payment Terms: | L/C, T/T, Western Union |
|---|
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Fujian in China |
Specifications
17 Inch TFT LCD Touchscreen VGA Monitor with Metal Bracket
Panel: 17" A+ GRADE Panel
Display Type: 4: 3 /16: 9Ratio
Physical Resolution: 1024X768
4- wires /5-wire resitive touch-screen optional.
Touchscreen Interface: Serial (RS232) or USB optional.
15 pin D-SUB VGA signal input.
SD/USB card reader and TV/AV fucntion is optional.
Built in Speaker.
OSD: Remote control OSD(Voice, Brightness, Contrast)
One VGA input, 2 AV Input, 1 AV Input
Input Video Format: Analog RGB, NTSC/PAL/SCAME(AUTO)
Touchscreen Interface: Serial (RS232) or USB
Operating System: DOS/Window 9X ME, 2K XP Vista NT Windows CE / LINUX / Mac
Power Consumption: <30 W Typ
Working Vplt: 11V-15V
Technical Specification:
*Touch Response Time Serial/USB: 10.4ms
*PowerSupply: 85-265VAC, 50-60Hz
*Pixel Pitch: 0.107 (W) X 0.372(H) mm
*Pixel Response Time Rise + Fall (Typically): 12ms
*Brightness: 400 CD/m2
*Contrast Ratio Typically: 14.58402778
*ViewingAngle Horizontal (left/right): 170° (85° /85° )
* (From Centre, CR>=5) Vertical (up/down): 160° (70° /90° )
*Temperature Range: Operating: -20ºC-60ºC,
*Storage: -30-70ºC
*Relative Humidity Non Condensing: Operating: 10%-90%, Storage 5%-90%
*FM/IR Range: FM-30-88.9 MHz, IR-2.3MHz-2.8MHz
*TV Channel Parameter: VHF-L 48.25~170.00MHz VHF-H 170.00~450.00MHz
Packing
Quantity: 3PCS/CTN
Net Weight: 16KG/CTN
Gross Weight: 17KG/CTN
Carton: 46X48X45CM
