Qingdao Promising International Co., Ltd.
China Manufacturer with main products: Mini Loader, Small Loader, Wheel Loader, Mini Front Loader, Small Front Loader, Articulated Loader, Forklift Truck, Forklift |

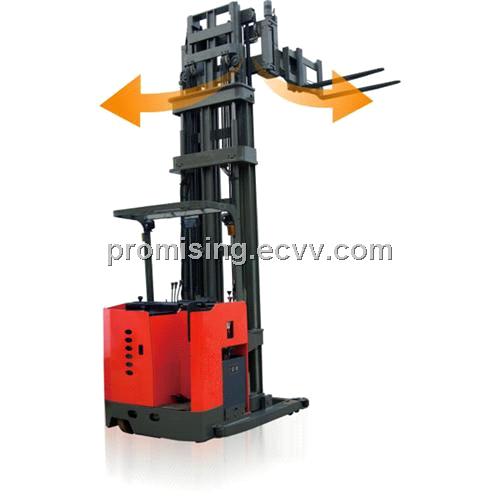

3-Way Pallet Stacker TC10-70
| FOB Price: | 10,000.00 - 20,000.00 USD/Set |
|---|---|
| Supply Ability: | 200 Set/Sets per Month |
| Shipping: | 30 days upon payment |
| Payment Terms: | L/C, T/T |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Shandong in China |
| Packaging Details: | Nude |
Quick Details
- Brand Name: Dragon Machinery
- Model Number: TC10-70
- Lift Drive / Actuation: Hand
- Load Dimensions ---mm: 1250*1250
- Max. Lifting Height (MM): 7500
- Load center MM: 500
- Fork Dimensions -L/W/T---mm: 1070*100*35
- Overall Length (MM): 3454
- Overall Width (MM): 1450
- Height---Mast Lowered(MM): 8525
Specifications
TC Series 3-Way pallet stacker, with 180° rotating fork;
Rated load capacity: 1000kg, lift height: 7500mm;
The min. Width of aisle is 1510mm;
Colored monitor for triplex mast;
Soft backrest;
Driving position display;
More Product Storage - Up to 60% increase;
More efficient use of available space;
Reduced handling costs.
A narrow classis design, small battery compartment and tiller arm steering with 180° range give this compact stacker excellet manoeuvrability, even in limited space.
|
Description Model No. |
TC10-75
|
| Rated Capacity (KG) |
1000kg at 6000mm, 750kg at 7500mm
|
| Load Dimensions ---mm |
1250*1250
|
| Operate Type |
Stand-on
|
| Max. Lifting Height (MM) |
7500
|
| Min. Turning Radius (MM) |
1880
|
| Min. Stacking Aisle ---mm (1000*1000 Pallet) |
1480
|
| Max Travel Speed km/h-laden/unladen |
7.0/8.0
|
| Load center MM |
500
|
| Fork Dimensions -L/W/T---mm |
1070*100*35
|
| Shift Stroke (1000/1100mm pallet)--mm |
1060/1160
|
| Lifting Speed (MM/S)-laden/unladen |
180/315
|
| Rotating Speed of forks---s/180o |
12
|
| Shift Speed ---mm/s |
240
|
| Overall Length (MM) |
3454
|
| Overall Width (MM) |
1450
|
| Height-Overhead guard--mm |
2320
|
| Height---Mast Lowered(MM) |
3750
|
| Height-Mast Extended w/ Load-Backrest -mm |
8525
|
| Fork Spread Range(MM) |
260-820
|
| Min Ground Clearance--mm |
40
|
| Max. Gradeability ---% |
10
|
| Wheel Type |
Polyurethane Solid Tyre
|
| Driving Wheel (MM) |
Φ 343× 108
|
| Balance Wheel (MM) |
Φ 180× 76
|
| Front Wheel (MM) |
Φ 140× 100
|
| Battery V/AH- Domestic BRAND |
48V /300 AH
|
| Service Brake |
Mech.
|
| Parking Brake |
Mech.
|
| Charger-Intelligent |
48V /50 A
|
| Driving Motor (KW) |
5.5 (AC)
|
| Lifting Motor (KW) |
7.5
|
