Zhengzhou Dingchen Machinery Co., Ltd.
China Manufacturer with main products: Toilet Paper Machine, Tissue Paper Machine, Cultural Paper Machine, Kraft Paper Machine, Paper Rewinder, Accessories of Paper Machines, Paper... |
Home
>Products Catalog > toilet paper machine > 787mm 1T/D toilet /tissue paper making machine use waste paper as material

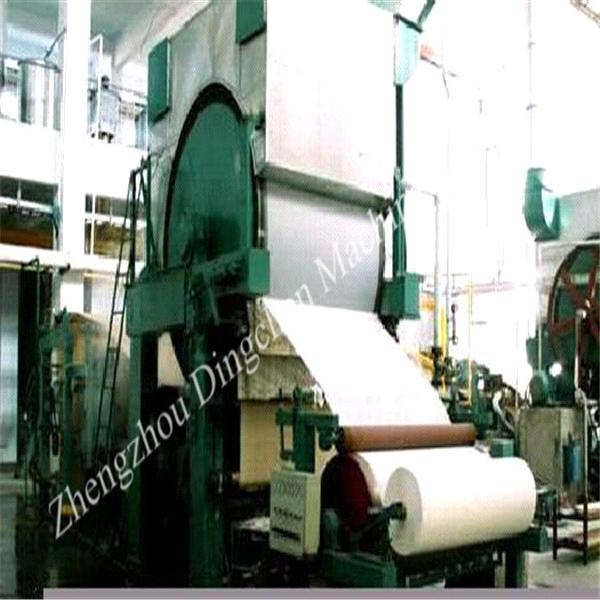

787mm 1T/D toilet /tissue paper making machine use waste paper as material
| FOB Price: | 45,000.00 - 50,000.00 USD/Set |
|---|---|
| Supply Ability: | 10 Set/Sets per Year |
| Shipping: | EXW |
| Payment Terms: | L/C, D/A, D/P, T/T |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Henan in China |
| Packaging Details: | wooden box/straw rope |
Quick Details
- Condition: New
- Type: toilet paper
- Computerized: Yes
- Brand Name: Dingchen
- Model Number: 787mm
- Voltage: 380v-480v
- Power(W): 70kw
- Certification: ISO
- Warranty: 1 ear
- After-sales Service Provided: Engineers available to service machinery overseas
Specifications
Ⅰ.Technical parameter
1.output paper style:tissue paper;
2. raw material: recycle paper;
3.capacity: 0.8-1t∕d;
4. net paper width:900mm;
5.output paper weight: 13-40g/m2;
6.width of cylinder mould :1100mm;
7. rail gauge:1300mm;
7.working speed: 40-100m∕min;
8.drive way: AC frequency conversion speed, section drive;
Ⅱ.structure and characteristics of main part:
1.cylinder section:Ф700mm×1100mm stainless steel cylinder mould 1set, Ф250mm×1100mm couch roll 1set,coated by rubber,rubber shore hardness 38℃±2.
2.dryer section:Ф1000mm×1100mm alloy dryer can 1 set, Ф220mm×1100mm touch roll 1set,1group scraper knife.coated by rubber, rubber shore hardness 90℃±2.mechanical loading device.
3.paper cutting section: 787mm rewinding and perforating machine 1 set,GM-450 paper cutting machine 1set
4.drive and control section: AC frequency conversion speed, section drive;
Ⅲ. All equipments:
|
NO.
|
Item
|
qty(set)
|
|
1
|
787mm tissue paper machine.
|
1
|
|
2
|
exhaust hood of dryer can
|
1
|
|
3
|
Ф500mm axial-flow ventilator
|
1
|
|
4
|
1.5m3High consistency hydrapulper
|
1
|
|
5
|
0.8m2 High frequency vibrating screen
|
1
|
|
6
|
Ф250mm pulp refiner
|
1
|
|
7
|
Ф500mm Thruster
|
2
|
|
8
|
25m3bleacher
|
1
|
|
9
|
4 inch Pulp pump
|
3
|
|
10
|
Vertical mixer
|
2
|
|
11
|
33roots vacuum pump
|
1
|
|
12
|
787mm rewinding& perforating machine
|
1
|
|
13
|
GM-450 paper cutting machine
|
1
|
|
14
|
0.3T boiler(burn coal)
|
1
|
Ⅳ.Accessory electric motor:
|
No.
|
item
|
power(kw)
|
grade
|
Qty(set)
|
|
1
|
787mm tissue paper machine.
|
5.5
|
4
|
1
|
|
2
|
Ф500mm axial-flow ventilator
|
3
|
4
|
1
|
|
3
|
1.5m3 High consistency hydrapulper
|
7.5
|
4
|
1
|
|
4
|
0.8m2 High frequency vibrating screen
|
3
|
4
|
1
|
|
5
|
Ф250mm pulp refiner
|
5.5
|
4
|
1
|
|
6
|
Ф500mm Thruster
|
5.5
|
4
|
2
|
|
7
|
25m3bleacher
|
3
|
4
|
1
|
|
8
|
4 inch Pulp pump
|
4
|
4
|
4
|
|
9
|
Vertical mixer
|
3
|
4
|
2
|
|
10
|
33roots vacuum pulp
|
4
|
4
|
1
|
|
11
|
787mm rewinding&perforating machine
|
3
|
4
|
1
|
|
12
|
GM-450 paper cutting machine
|
1.1
|
4
|
1
|
|
13
|
0.3T boiler(burn coal)
|
4
|
4
|
1
|
