Xinxiang Forever Vibrating Machinery Co., Ltd.
China Manufacturer with main products: Vibrating Sieve, Separator, Vibrating Screen, Vibrating Separator, Vibrating Feeder, Conveyor, Vibarting Table, Feeding Machine |

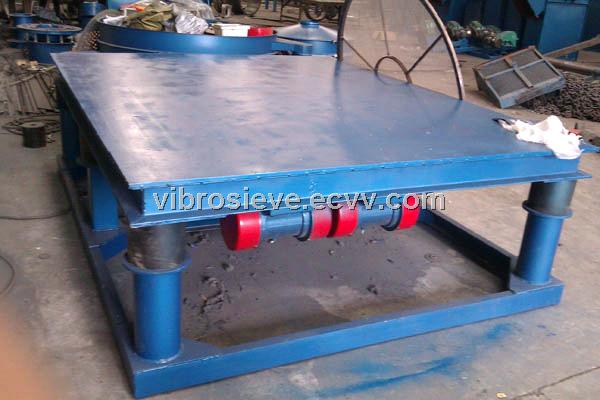

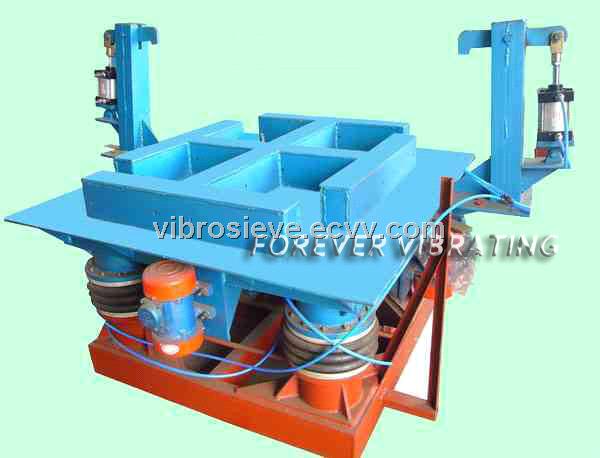

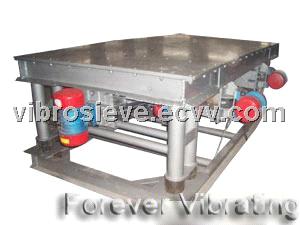

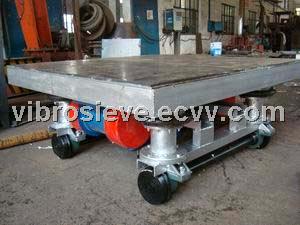

Vibrating Table for Molds
| FOB Price: | 1,000.00 - 10,000.00 USD/Set |
|---|---|
| Supply Ability: | 120 Set/Sets per Month |
| Shipping: | 20 days after payment, ship from Qingdao by sea or air |
| Payment Terms: | T/T, Western Union |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Henan in China |
| Packaging Details: | Fumigation-free polywood case |
Specifications
ZP series Vibrating Tables are designed to settle and compact dry bulk materials (granules and powders) to different mould and shapes in various types of containers. Their application provides either a sizeable increase in the net weight of the container or reducing in the container size with subsequent savings in shipping and storage space. The table and base is connected with air spring to make low noise and obvious damping effect. Vibrating table can be widely used in metallurgy, mould, food, chemical industries and Building material etc…
Vibrating table is non-standard equipment, can be customized as buyer’ s requested design. Have to choose suitable vibrating motor according to the loading weight of the table.
Features
- Big power, big table; the maximum power 2.2KW X (4-5), vibrating force 120KN, 12ton of the moulding flask can be loaded, the maximum bearing capacity can be made up to 15ton.
- Adjustable height of table, suitable for production line.
- 3-D vibration, can be control separately, suitable for complex casting product.
- Can get the best effect of compaction when moulding, on condition that do not damage the mould.
- Function of self locking, can permit extremely localized in production.
Technical parameter
|
Model
|
Table Size
|
Vibrating Points
|
Vibrating Fore (KN)
|
Power (KW)
|
Weight (KG)
|
Vibrating Frequency (HZ)
|
Vibration Acceleration (G)
|
Amplitude (MM)
|
|
ZP0.8X0.8
|
800X800
|
4
|
20
|
1.6
|
450
|
20-80
|
1-2
|
0.5-2
|
|
ZP1.0X1.0
|
1000X1000
|
6
|
30
|
2.4
|
600
|
|||
|
ZP1.2X1.2
|
1200X1200
|
6
|
30
|
2.4
|
860
|
|||
Tags: concentrating table, concrete vibrating table, concrete vibrator, construction equipment, electrodynamic shaker, how to make molds, plate vibration, shake table, shake tables, shaking platform, shaking table for concrete, shaking table test, shaking tables, table concentrator, table vibration, vibrating concrete, vibrating equipment, vibrating machines, vibrating plate, vibrating plates, vibrating platform, vibrating table, vibrating table for compacting bulk material, vibrating table for material compaction, vibration equipment, vibration isolator, vibration plate, vibration plates, vibration tables, vibratior, vibrator for concrete, vibrator for construction material, vibrator table, vibrators, vibratory tables, vibro plate, vibro-bench
