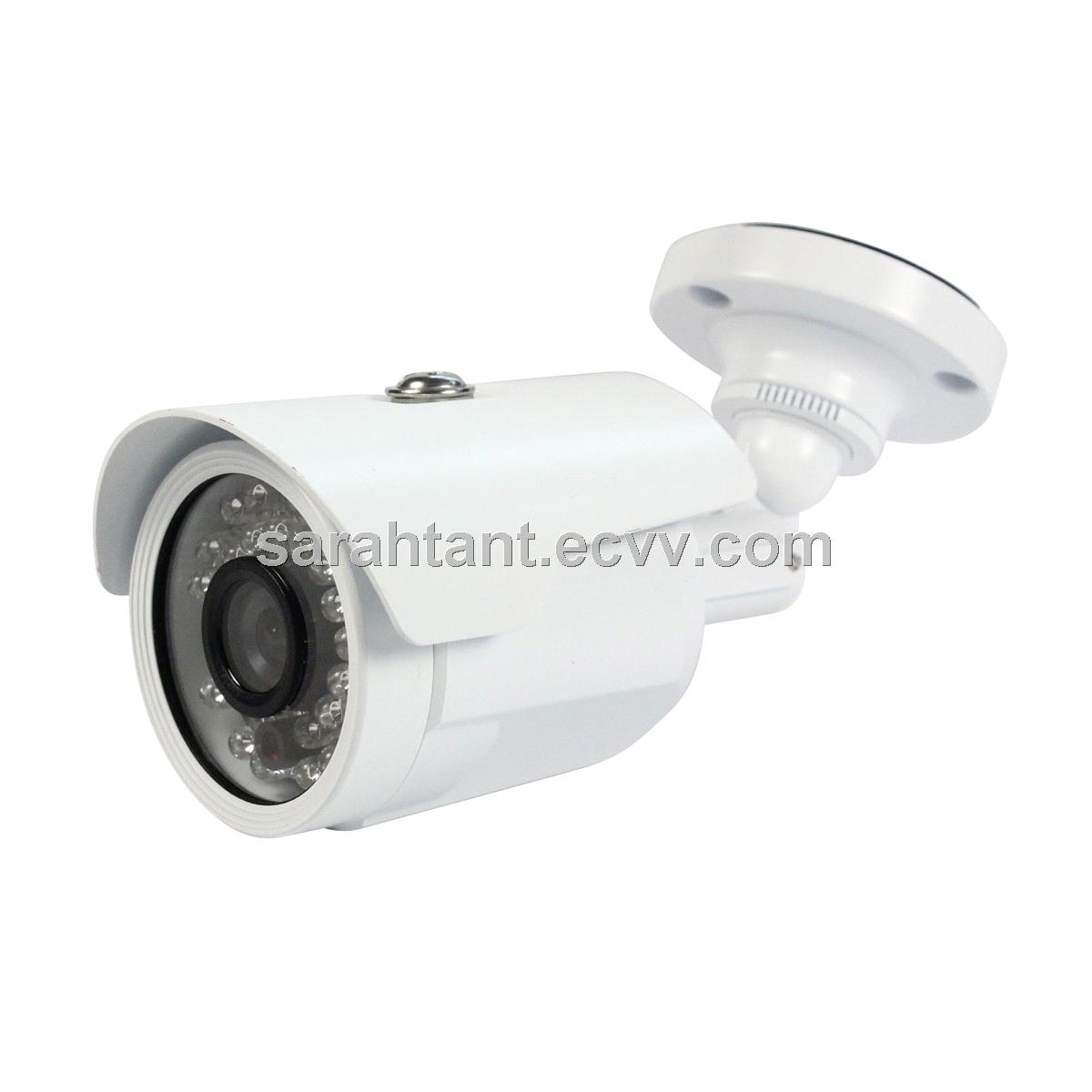

800TVL Outdoor Weatherproof IR CCTV Bullet Cameras DR-AHSB606

Model No.

DR-AHSB6065

DR-AHSB6064

DR-AHSB6061

DR-AHSB606

DR-AHSB6063

DR-AHSB6062

Image Sensor

1/3" Sony

1/3" Sony

1/3" CMOS

1/3" CMOS

1/3" Sony

1/3" Sony

ICX673BK CCD

ICX811AK CCD

PC1099

PC3089

ICX639BK CCD

ICX633BK CCD

Horizontal Resolution

700TVL, Low Illumination, DWDR, OSD, DNR, PM, MD

700TVL, Low Illumination, DWDR, OSD, DNR, PM, MD

1000TVL

800TVL

600TVL, Low Illumination, DWDR, OSD, DNR, PM, MD

420TVL

Pixels

 PAL: 976(H)×494(V)

 PAL: 976(H)×582(V)

962(H)×504(V)

762(H)×504(V)

PAL: 795(H)×596(V)

PAL: 500(H)×582(V)

NTSC: 976(H)×582(V)

NTSC: 976(H)×582(V)

NTSC: 811(H)×508(V)

NTSC: 510(H)×492(V)

Television Standards

PAL/ NTSC

IR LED

30 pcs ￠5mm

IR Distance

20m

Lens

Board Lens 3.6 mm/F2.0

Sync System

Internal

Usable Illumination

0.01Lux/F2.0

IR Power On

CDS Auto Control

S/N Ratio

≥65dB (AGC OFF)

≥54dB (AGC OFF)

≥48dB (AGC OFF)

Gamma Correction

0.45

Video Output

Composite Signal (1.0Vp-p, 75Ω)

Scanning System

PAL: 625 Lines, 50 Field/Sec; NTSC: 525 Lines, 60 Field/Sec

Electronic Shutter

Auto:  PAL 1/50-1/100,000Sec; NTSC 1/60-1/100,000Sec

Operation Temperature

-10°C ~ +50°C, RH: 95% Max

Storage Temperature

-20°C ~ +60°C, RH: 95% Max

White Balance

Auto

Power Supply

DC12V

Dimension

180(W) x110(H) x100(D)mm

Weight

400g
