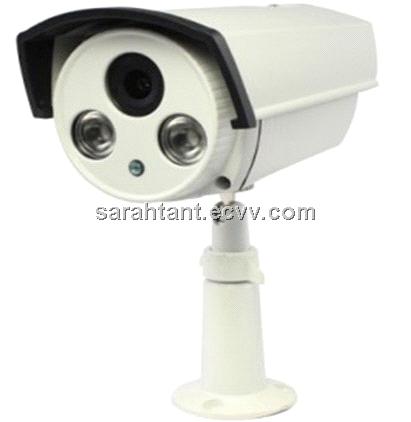

Outdoor Weatherproof IR Security Bullet CCTV Cameras DR-AHSB6041

Model No.

DR-AHSB6045

DR-AHSB6042

DR-AHSB6041

DR-AHSB6044

DR-AHSB6043

DR-AHSB604

Image Sensor

1/2.8" Sony

1/3" Sony

1/3" Sony

1/3" CMOS

1/3" CMOS

1/3" Sony

IMX138 CCD

ICX673BK CCD

ICX811AK CCD

PC1099

PC3089

ICX639BK CCD

Horizontal Resolution

1200TVL(OSD)

700TVL, Low Illumination, DWDR, OSD, DNR, PM, MD

700TVL, Low Illumination, DWDR, OSD, DNR, PM, MD

1000TVL

800TVL

600TVL, Low Illumination, DWDR, OSD, DNR, PM, MD

Pixels

1280(H)×720(V)

 PAL: 976(H)×494(V)

 PAL: 976(H)×582(V)

962(H)×504(V)

762(H)×504(V)

PAL: 795(H)×596(V)

NTSC: 976(H)×582(V)

NTSC: 976(H)×582(V)

NTSC: 811(H)×508(V)

Television Standards

PAL/ NTSC

IR LED

￠42 2PCS IR LED

IR Distance

60m

Lens

2.8-12mm Manual Zoom Lens

Sync System

Internal

Usable Illumination

0.01Lux/F2.0

IR Power On

CDS Auto Control

S/N Ratio

≥65dB (AGC OFF)

≥54dB (AGC OFF)

Gamma Correction

0.45

Video Output

Composite Signal (1.0Vp-p, 75Ω)

Scanning System

PAL: 625 Lines, 50 Field/Sec; NTSC: 525 Lines, 60 Field/Sec

Electronic Shutter

Auto: PAL 1/50-1/100,000Sec; NTSC 1/60-1/100,000Sec

Operation Temperature

-10°C ~ +50°C, RH: 95% Max

Storage Temperature

-20°C ~ +60°C, RH: 95% Max

White Balance

Auto

Power Supply

DC12V

Dimension

105(W) x120(H) x220(D)mm

Weight

1000g
