IScancar OBDII EOBD Car Trouble Codes Scanner
| Supply Ability: | 1,000 Piece/Pieces per Week |
|---|---|
| Shipping: | to all over the world |
| Payment Terms: | T/T, Western Union |
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Guangdong in China |
| Packaging Details: | normal package |
Specifications
IScancar OBDII EOBD Cars Trouble Codes Scanner
IScancar is a powerful portable OBDII/EOBD code scanner. It supports all services on OBDII compliant vehicles, helps technicians to diagnose vehicle problems fast and accurately. IScancar uses a color LCD display, it is very easy to use, helps you troubleshooting efficiently. With built-in help menus and code definitions ,diagnosing and repairing that dreaded Check Engine Light is now easier than ever.
1, Outline of Iscancar
1) Cable with OBDII CONNECTOR - Connects the Iscancar to the vehicle's Data Link Connector(DLC)
2) LCD DISPLAY - Indicates test results.
3) EXIT BUTTON - Returns to previous menu.
4) RIGHT/LEFT BUTTONS - Move cursor right or left for selection, Or turn page up or down when more than one page is displayed.
5) HELP BUTTON - Show help information for users.
6) ENTER BUTTON - Confirms a selection (or action) from a menu list.
7) UP/DOWN BUTTONS - Move cursor up or down for selection.
10) USB PORT - Connects to computer to update the Iscancar online.
RED LED INDICATOR LAMP/ Power Connection Status Indicator.
GREEN LED INDICATOR LAMP/OBD Connection Status Indicator.
YELLOW LED INDICATOR LAMP/ USB Connection Status Indicator.
RED LED INDICATOR LAMP/ Power Connection Status Indicator.
GREEN LED INDICATOR LAMP/OBD Connection Status Indicator.
YELLOW LED INDICATOR LAMP/ USB Connection Status Indicator.
2. Specifications
Operating Temperature: -20 to 70 °C ( -4 to 158 °F )
Storage Temperature:-40 to 85 °C ( -40 to 185 °F )
Diagnostic Interface:16 PIN
USB Interface: USB 2.0
Power: USB:DC 5V OBDII:DC 12 V
Consumption: <1.2 W

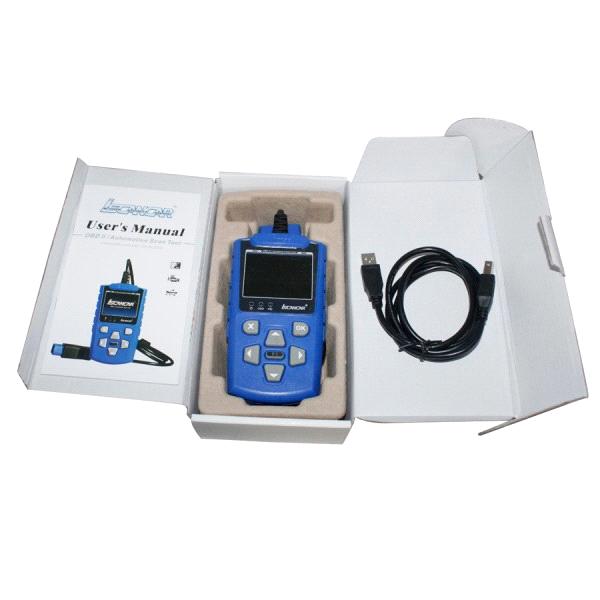

Package including:
1. User’s Manual - Instructions on tool operations.
Storage Temperature:-40 to 85 °C ( -40 to 185 °F )
Diagnostic Interface:16 PIN
USB Interface: USB 2.0
Power: USB:DC 5V OBDII:DC 12 V
Consumption: <1.2 W
Package including:
1. User’s Manual - Instructions on tool operations.
2. USB cable - Connect to a computer for upgrading online.
3. Power supply
The power of the Iscancar is provided via the vehicle Data Link Connector (DLC)
Follow the steps below to power it up:
1) Find DLC on vehicle
A plastic DLC cover may be found for some vehicles and you need to remove it before plugging the OBDII cable.
Plug the connector at the end of OBDII cable to the vehicle's DLC.
2) For updating online, you can connect USB cable to PC for power supply or connect us.
