Jinan Yaobang CNC Equipment Co., Ltd.

Home >Products Catalog > laser cutting machine > Laser Engraving and Cutting Machine AOL6040

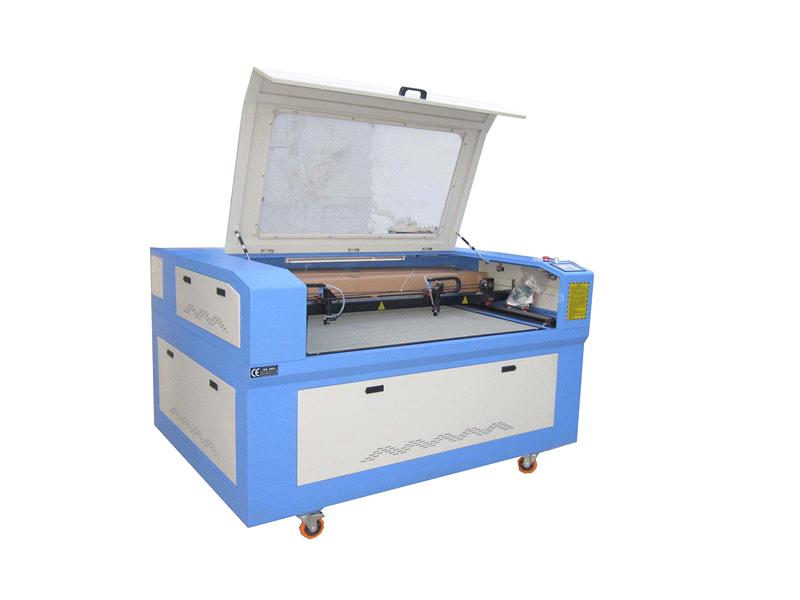

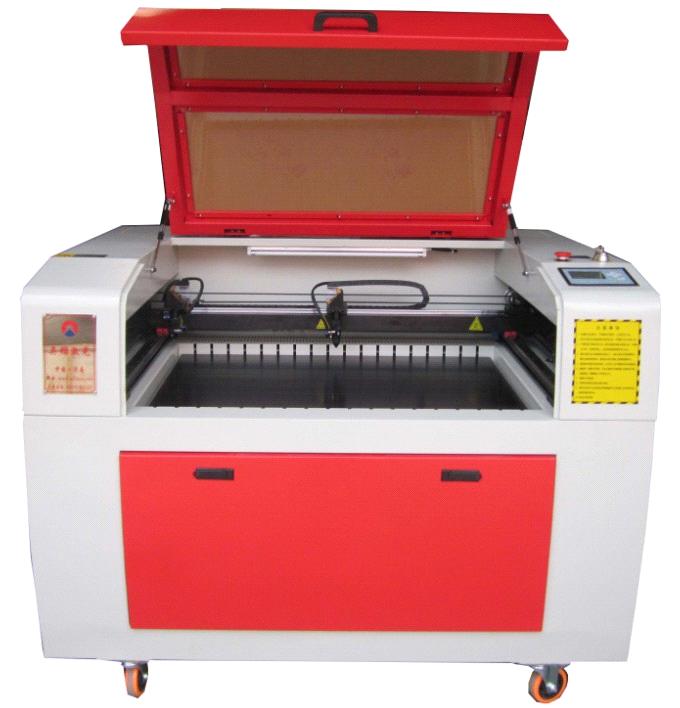

Laser Engraving and Cutting Machine AOL6040

In Stock

Inquiry Now

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Shandong in China
Packaging Details:	wooden case

Specifications

Technical parameter:

1) Working area: 400 x 600mm (16” x 24” )

2) Laser Types: Hermetic And Detached CO2 Laser Tube

3) Laser power: 60W (Optional: 80W, 100W, 150W)

4) Engraving speed: 0-75,000mm/min

5) Cutting speed: 0-40,000mm/min

6) Location precision: ≤ 0.01mm

7) Resetting positioning accuracy: 0.01mm

8) Power supply: AC 220V/50Hz

9) Gross power: < 1,000W

10) Operating temperature: 0 - 45°

11) Operating humidity: 5 - 95%

12) Minimum shaping character: English 1 x 1mm

13) 360° slope engrave: Yes

14) Driving system: Stepper

15) Cooling mode: Water-cooling and protection system

16) Auxiliary Devices: Exhauster And The Exhaust Pipe

17) Software: Lasercut 5.3

18) Graphic format supported: BMP, CIF, JPEG, TGA, TIFF, PLT, AI, DXF, DST (TIANDAO Embroidery Software), DWG, CDR, etc

19) Optional: Up& Down work table, Rotary Clamp, Red light pointer, Auto focus

20) Optional water cooling system: water pump, water chiller, air cooler
