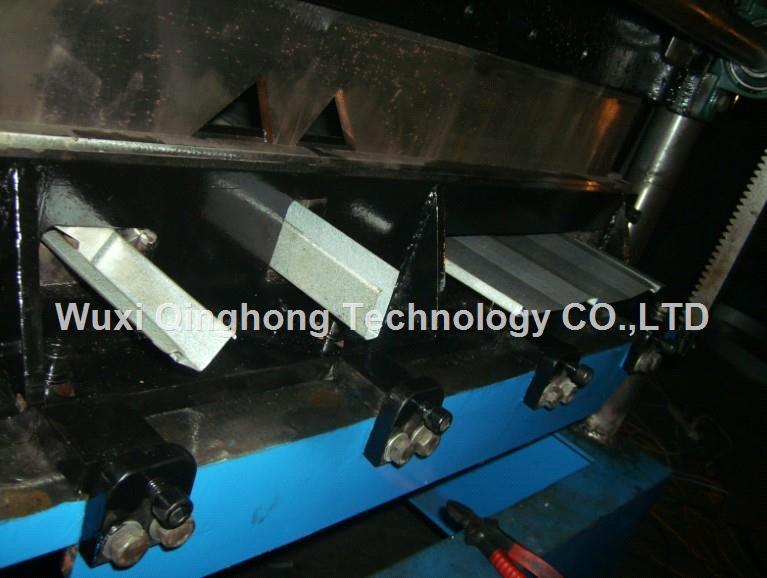

Dry Angle Roll Forming Machine

Inquiry Now

Related products from verified members

Square & Rectangular Filter Frame Roll Form...

Price:50000.00-68600.00 USD/Set

Min. Order:1 Set
k span roll forming machine

Price:

Min. Order:

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe

Specifications

Dry Angle roll forming machine

Roll forming main machine

1: Coil width: depend on customer profile

2: working speed: 12m—15m/min (not contain cutting)

3: roll station: 8stations

4: material of roller: Gcr15 steel, polished and coated with chrome HRC58-62℃

5:material of main shaft:45﹟forge steel diameter roller: Ф56mm

6: main power: 5.5kw

7: forming thickness: 0.5mm—1.5mm mild steel

8: Transmission: by single line 1.0 inch Chains

9: size of machine: about 4500 x 800 x1200 (L x W x H)

10: weight: about 4000Kgs

11: color: blue and yellow (it is also can changed depend on customer request)

12:Cutting:

(1)machine adopt hydraulic cutting

(2)Cutting after forming: Cut the sheet after roll forming to required length

(3)Cutting motion: The main machine automatically stops and the cutting will take place. After the cutting, the main machine will automatically start.

(4)Material of blade: CR12with heat treatment

(5)Length measuring: Automatic length measuring

(6)Tolerance of length: 3m+/- 1.5mm
