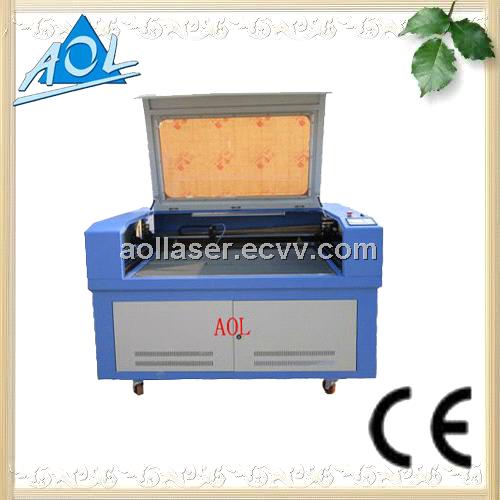

Hot Sale CNC Co2 Laser Engraving Machine AOL-1290
| FOB Price: | 3,300.00 - 6,300.00 USD/Set |
|---|---|
| Supply Ability: | 200 Set/Sets per Month |
| Shipping: | Qingdao Port |
| Payment Terms: | L/C, T/T, Paypal, Western Union, Excrow |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Shandong in China |
| Packaging Details: | Wooden case |
Specifications
Function Features:
1. High stability and high strength mechanical structure casted by high accuracy model which can ensure stable data motion, high speed, high precision, long-term operation without adjustment and the same precision carving. The design idea of around the body through can add materials from before and behind which for infinite workpiece.
2. The stability and integrity design idea with advanced industry cooling system and water alarm Automatic Protection Function, improve the stability and safety of continuous operate. Perfect dust, pollution prevention design greatly improve the overall stability of the machine.
3. Using flying path design, unique structure, small optical path deviation, high stability, easy to adjust. Optical Accessories adopts best imported K9 mirrors and ante focusing mirrors whose reflectivity and transmittance is the best with more detailed spot, more cutting edge .
3. DSP control: Based on upper control unit of PC-PCI, adopt advanced DSP-TMS320, XC2S300 control chip with high speed, stability, anti-interference ability. Advanced USB control and Flash Disk (U Disk) off-computer control system are optional.
4. Independent R & D efficient laser power: Adopt new high-voltage switch-mode, PWM master control technology, which is more stable.
Applicable Industry:
1. Engraving beautiful patterns and words such as wood, bamboo, Ivory, bone, leather, marble, shell
2. Mainly used in large plastic character cutting, color plate engraving, organic glass engraving and cutting, sign engraving, crystal engraving, trophy engraving, authorization engraving, etc.
3. Leather Clothing Processing Industry: Can engraving and cutting complex patterns on genuine leather, synthetic leather, leather, woolens, clothing, furnishings, glove, handbag, shoes, hats, toys, etc.
4. Model Industry: Production of construction sand table model and Aircraft Model, etc. ABC plate cutting, MLB cutting.
5. Packing Industry: Engraving and printing rubber plate, plastic plate, double board, die cut plate, etc.
6. Other Industry: Engrave on marble, granite, glass, crystal and other decorative materials, cut paper, card.
7. Product Identification Industry: Security marking products, etc.
Applicable Material:
Maple leaf , Double-color sheet, bamboo, Plexiglas, acrylic, wood, paper, leather, MDF, marble, ceramics , SS, etc.
Parameters:
|
Name
|
AOL-1290
|
|
Working area
|
1200 x900mm
|
|
Laser type
|
Glass Sealed CO2
|
|
Laser power
|
RECI -80W
|
|
Cooling system
|
Purified recycle water cooling
|
|
Energy Regulation
|
0-100% stepper control, 0-100% adjustable internal software
|
|
Control and drive
|
High-speed DSP control, stepper motor high-breakdown drive
|
|
Carving speed
|
0-44000mm/s
|
|
Cutting speed
|
0-2000mm/s
|
|
Operating Voltage
|
220v 50hz
|
|
Positioning accuracy
|
≤ ± 0.01mm
|
|
Minimum shaping character
|
Chinese Character 1.5mm letter1mm
|
|
Overall efficiency
|
≤ 1200W
|
|
Platform lift
|
High-precision ball screw electric lift 550mm
|
|
Operating temperature
|
0-45° C
|
|
Operating humidity
|
5%-95% (free of condensed water)
|
|
Support software
|
PLT, DST, DXF, DWG, LAS, Auto CAD, Core Draw can direct output.
|
|
Package
|
Wooden case
|
|
Warranty time
|
1 year
|
|
Delivery time
|
3 working days
|
|
MOQ
|
1 set
|
