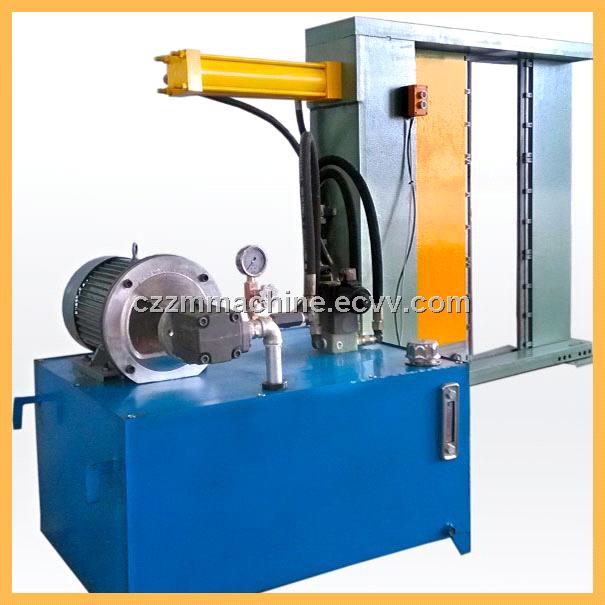

Hydraulic Steel Vertical Bending Machine

FOB Price:	10,000.00 - 15,000.00 USD/Set
Supply Ability:	50 Set/Sets per Month
Shipping:	FOB Shanghai, 50 days after receiving advanced payment
Payment Terms:	L/C, T/T

In Stock

Inquiry Now

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Jiangsu in China
Packaging Details:	Seaworthy packing

Quick Details

After-sales Service Provided: Engineers available to service machinery overseas
Condition: New
Brand Name: ZEMU

Specifications

1. Main Features of Hydraulic Steel Vertical Bending Machine
1) The hydraulic steel vertical bending machine allows to form the 4 panels composing the complete transformer tank.
2) Using this system it allows to eliminate 3 weldings, save time of assembling and welding the tank with a reduction of leakage
risks.

2. Main Machines of Hydraulic Steel Vertical Bending Machine
1) Bending system

2) Safety system for the operator

3) Hydraulic unit

4) Control panel

3. Specific Technical Data
1) General
Machine weight: approx. 1500 Kg

Pressure: max. 10Mpa
2) Corrugated panel dimensions
Panel width: <= 1600 mm

Fin height: <=400mm
Bending degree: 90 degree

3) Lamination specification
Sheet thickness: 1.2 -1.5 mm
