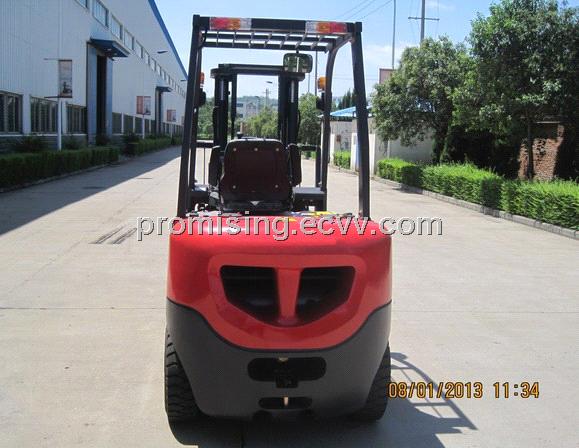

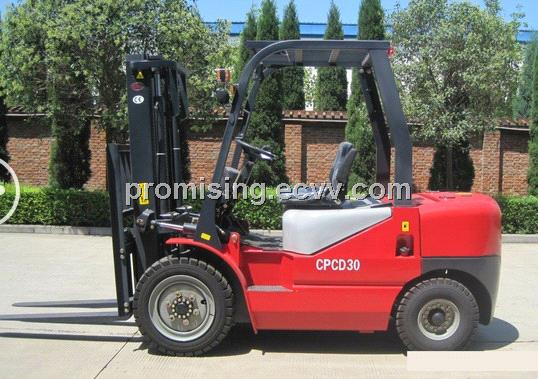

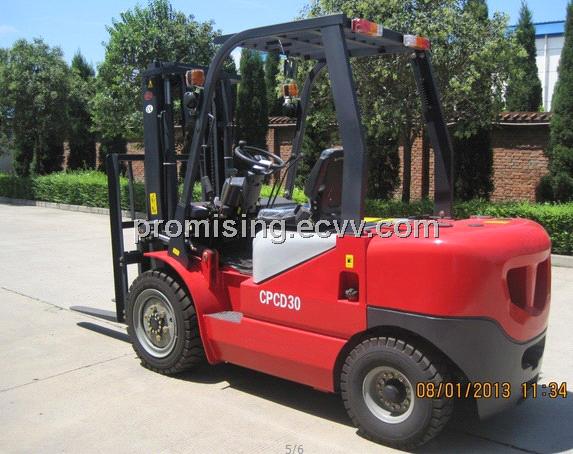

3 ton Diesel Forklift Truck CPCD30

Specifications

3.0T diesel forklift, 3.0T diesel forklift truck, 3.0 ton diesel forklift, 3.0T capacity diesel forklift, 3.0T diesel fork lift truck, 3.0T diesel powered forklift, 3.0 ton diesel powered forklift,3.0T diesel fired forklift truck, diesel fired forklift 3.0T capacity, 3 ton diesel forklifts, 3 ton diesel fork lift, diesel fork lift truck 3T capacity, 3000kg diesel forklift truck, 3000kg capacity diesel forklift truck, diesel powered forklift truck 3000kg capacity, 3000kg capacity diesel fired forklifts, 3.0T internal combustion forklift, 3.0 ton internal combustion forklift, 3T internal combustion fork lift truck, 3.0 ton counterbalance diesel forklift truck, 3.0T counterbalanced diesel forklifts

Features:
1. Intelligent Drive-monitoring System
The digital intelligent drive-monitoring system of our diesel forklift truck can facilitate obtaining the operation data of the diesel forklift easily, so as to achieve the whole-process control of the forklift.
2. Full Hydraulic Flexible Steering System
The full hydraulic steering system of our diesel forklifts can greatly reduce the fatigue of the operator. The steering system uses a horizontal oil cylinder on the compact steering axle and guarantees a reliable steering.
3. Classical Space Frame Structure
Our diesel forklift truck uses the classical YTO ASF space frame structure. It is ergonomically designed, aesthetic in appearance, compact in structure, and easy to operate.
4. Good-view Mast
The optimized rail section design of the mast enables the driver to enjoy a good and wide view.

Technical Specifications:
Model: CPCD30
Power Type: Diesel
Rated Capacity: 3000kg
Load Center: 500mm
Lifting Height: 3000mm
Mast Tilt Angel (F/R): 6/12 deg.
Front Overhang: 485mm
Wheel Base: 1700mm
Wheel Tread (F/R): 1000/980mm
Dead Weight: 4250kg
Free Lift Height: 165mm
Min. Turning Radius: 2410mm
Min. Ground Clearance - Under Mast: 120mm
Min. Ground Clearance - Wheelbase Center: 160mm
Service Brake: Hydraulic Foot Pedal
Parking Brake: Mechanical Hand Lever
Lifting Speed (full-load): 400mm/s
Lowering Speed: Full-load < 600mm/s, No-load > 300mm/s
Travel Speed (no-load): 19km/h
Max. Gradeability (full-load): 20%
Max. Tractive Force (full-load/no-load): 15/13kN
Weight Distribution with load (F/R): 6130/1120kg
Weight Distribution without Load (F/R): 1720/2530kg
Engine Model: C490BPG
Engine Manufacturer: XINCHANG
Engine Rated Power: 40kW/2650rpm
Max. Torque/rpm of Engine: 162N?m/1800rpm
Engine Displacement: 2.54L
Battery Voltage: 12V
Battery Capacity: 100Ah
Gearbox Transmission Type: Hydraulic torque converter
Gear Shift (F/R): I/I
Tyre Type: Pneumatic Tyres
Tyre    Model - Front: 28x9-15-14PR
Tyre Model - Rear: 6.5-10-10PR
Fork    Dimension: 45x125x1070mm
Overall Length (without fork): 2770mm
Overall Width: 1225mm
Overall Height    - Mast Extended: 4225mm
Overall Height - Mast Lowered: 2070mm
Overall Height - Overhead Guard: 2160mm

Note:
1. Technical specifications are for standard models only.
2. Other optional accessories, functions and requirements are available upon request.
3. All specifications and design characteristics are subject to change without prior notice.

Optional Engine:
Model: C240
Manufacturer: ISUZU
Rated Power: 34.5kW / 2500rpm
Max. Torque: 134 N?m / 1800rpm
Displacement: 2.369L
