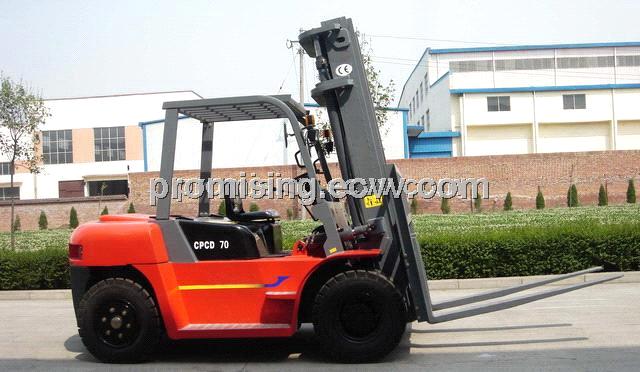

Diesel Forklift Truck CPCD70

Specifications

7.0T counterbalanced diesel forklifts, 7.0T internal combustion forklift, 7.0T diesel powered forklift, 7.0 ton diesel powered forklift, 7.0T diesel fired forklift truck, diesel fired forklift 7.0T capacity, 7 ton diesel forklifts, 7 ton diesel fork lift, diesel fork lift truck 7T capacity, 7000kg diesel forklift truck, 7000kg capacity diesel forklift truck, diesel powered forklift truck 7000kg capacity, 7000kg capacity diesel fired forklifts, 7.0 ton internal combustion forklift, 7T internal combustion fork lift truck, 7.0 ton counterbalance diesel forklift truck, 7.0T diesel forklift, 7.0T diesel forklift truck, 7.0 ton diesel forklift, 7.0T capacity diesel forklift, 7.0T diesel fork lift truck

Features:
1. Intelligent Drive-monitoring System
The digital intelligent drive-monitoring system of our diesel forklift truck can facilitate obtaining the operation data of the diesel forklift easily, so as to achieve the whole-process control of the forklift.
2. Full Hydraulic Flexible Steering System
The full hydraulic steering system of our diesel forklifts can greatly reduce the fatigue of the operator. The steering system uses a horizontal oil cylinder on the compact steering axle and guarantees a reliable steering.
3. Classical Space Frame Structure
Our diesel forklift truck uses the classical YTO ASF space frame structure. It is ergonomically designed, aesthetic in appearance, compact in structure, and easy to operate.
4. Good Rear-view Visibility
The big arc design of the counterweight can improve the visibility of rear view and guarantee the optimum visibility when driving reversely.
5. Good-view Mast
The optimized rail section design of the mast enables the driver to enjoy a good and wide view.

Technical Specifications:
Model: CPCD70
Power Type: Diesel
Rated Capacity: 7000kg
Load Center: 600mm
Lifting Height: 3000mm
Mast Tilt Angel (F/R): 6/12 deg.
Front Overhang: 595mm
Wheel Base: 2250mm
Wheel Tread (F/R): 1470/1700mm
Dead Weight: 9570kg
Free Lift Height: 200mm
Min. Turning Radius: 3500mm
Min. Ground Clearance - Under Mast: 195mm
Min. Ground Clearance - Wheelbase Center: 200mm
Service Brake: Hydraulic Foot Pedal
Parking Brake: Mechanical Hand Lever
Lifting Speed (full-load): 350mm/s
Lowering Speed: Full-load < 600mm/s, No-load > 300mm/s
Travel Speed (no-load): 21km/h
Max. Gradeability (full-load): 20%
Max. Tractive Force (no-load): 65/55kN
Weight Distribution with load (F/R): 14450/2120kg
Weight Distribution without Load (F/R): 3750/5820kg
Engine Model: LR6A3-22
Engine Manufacturer: YTO
Engine Rated Power: 70kW/2200rpm
Max. Torque/rpm of Engine: 400N?m/1600rpm
Engine Displacement: 6.49L
Battery Voltage: 24V
Battery Capacity: 2X100Ah
Gearbox Transmission Type: Hydraulic torque converter
Gear Shift (F/R): II/II
Tyre Type: Pneumatic Tyres
Tyre    Model - Front: 8.25-15-14PR
Tyre Model - Rear: 8.25-15-14PR
Fork    Dimension: 65x150x1220mm
Overall Length (without fork): 3585mm
Overall Width: 1995mm
Overall Height - Mast Extended: 4580mm
Overall Height - Mast Lowered: 2625mm
Overall Height - Overhead Guard: 2470mm

Note:
1. Technical specifications are for standard models only.
2. Other optional accessories, functions and requirements are available upon request.
3. All specifications and design characteristics are subject to change without prior notice.

Optional Engine:
Model: 6BG1
Manufacturer: ISUZU
Rated Power: 82.4kW / 2000rpm
Max. Torque: 415N?m /1400rpm
Displacement: 6.49L
