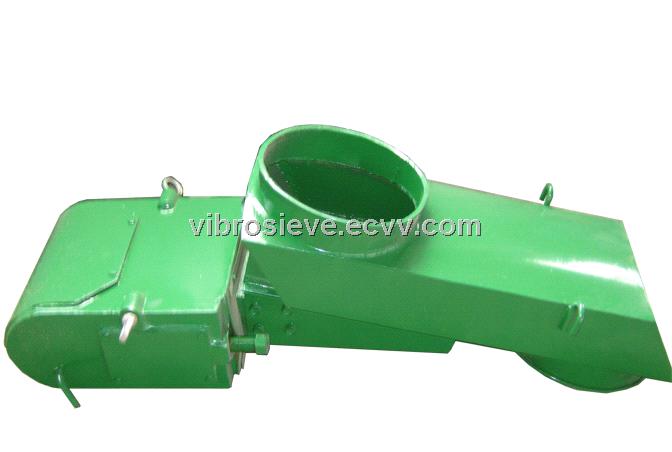

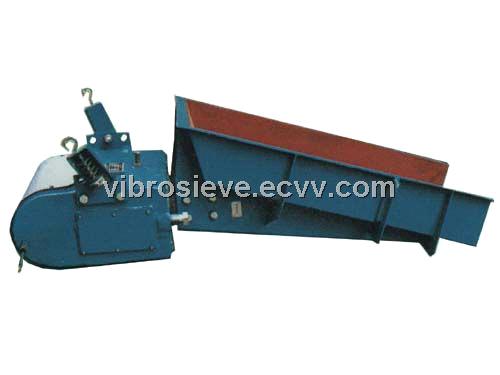

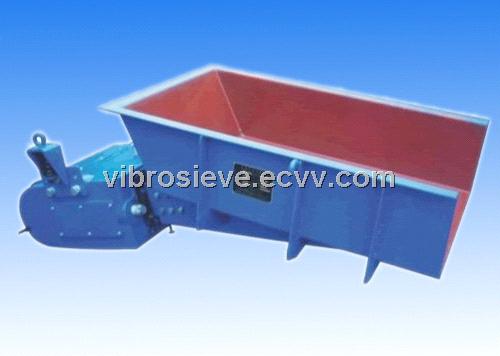

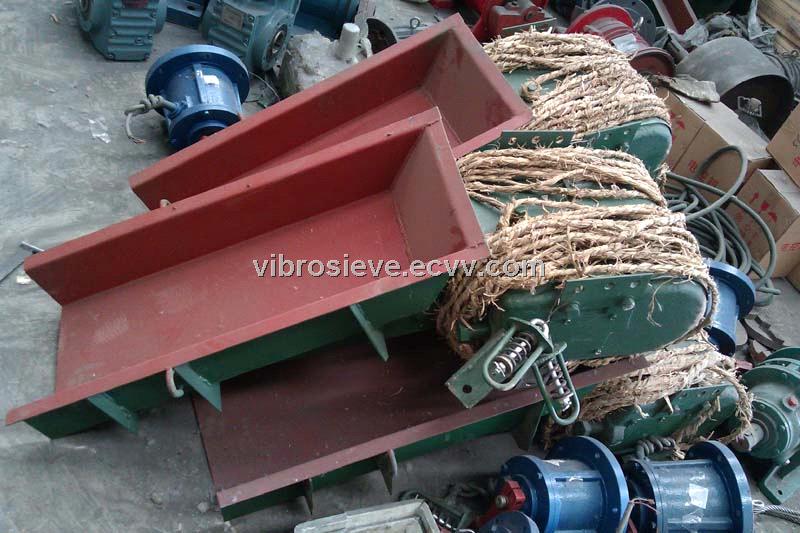

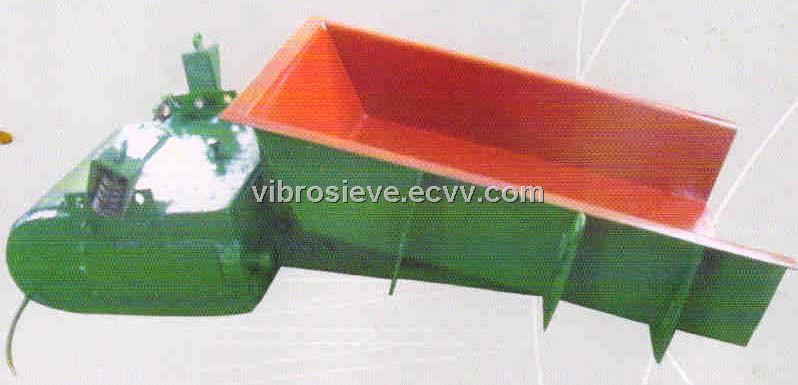

GZ Electro Magnetic Feeder
| FOB Price: | 1,000.00 - 100,000.00 USD/Set |
|---|---|
| Supply Ability: | 120 Set/Sets per Month |
| Shipping: | ship from Qingdao, Tianjing by sea or air within 7-20 days after payment |
| Payment Terms: | T/T, D/P, Paypal, Western Union, Negotiable |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Henan in China |
| Packaging Details: | Fumigation-free exporting Plywood Case |
Specifications
Electromagnetic vibrating feeder has been widely used in metallurgy, coal, electronics, machinery industry, chemical industry, building materials, light industry, food and other mining industries. In the production process, it delivers the anti-block materials, granular, powdery materials from the storage silo or funnel to the affected device quantitatively, uniformly and continuously.
Comparing with other type feeder, it has the following characteristics:
(1) Electric control uses half-wave silicon-controlled rectifier circuit. It can adjust to the charge level, and it can be used for automatic control of the production process, so that realize production automation.
(2) It has no rotating parts, no need to lubrication, simple structure, easy to maintenance.
(3) Material is micro-throwing movement, and silo has small wear.
(4) It uses the silo which is made of alloy steel plate. It’s applicable to transport heat, wear and corrosive materials, etc
There are Basic type, Top vibration type, Closed type, Light groove, Level groove and Wide groove; the list below is a part of them:
|
Type
|
Model
|
Productivity
(t/h)
|
Feeding size
(mm)
|
Double amplitude
(mm)
|
Vibration frequency
(t/min)
|
Voltage
(V)
|
Current(A)
|
Active power
(KW)
|
Weight
(kg) |
||
|
Level
|
-10°
|
Working current
|
Token current
|
||||||||
|
Basic type
|
GZ1
|
5
|
7
|
50
|
1.75
|
3000
|
220
|
1.34
|
1.0
|
0.06
|
77
|
|
GZ2
|
10
|
14
|
50
|
3.0
|
2.3
|
0.15
|
151
|
||||
|
GZ3
|
25
|
35
|
75
|
4.6
|
3.8
|
0.20
|
233
|
||||
|
GZ4
|
50
|
70
|
100
|
8.4
|
7.0
|
0.45
|
460
|
||||
|
GZ5
|
100
|
140
|
150
|
12.7
|
10.6
|
0.65
|
668
|
||||
|
GZ6
|
150
|
210
|
200
|
1.5
|
380
|
16.4
|
13.3
|
1.5
|
1271
|
||
|
GZ7
|
250
|
350
|
300
|
24.6
|
20
|
2.5
|
1920
|
||||
|
GZ8
|
400
|
560
|
300
|
39.4
|
32
|
4.0
|
3040
|
||||
|
GZ9
|
600
|
840
|
500
|
47.6
|
38.6
|
5.5
|
3750
|
||||
|
GZ10
|
750
|
1050
|
500
|
39.4X2
|
32X2
|
4.0X2
|
6491
|
||||
|
GZ11
|
1000
|
1400
|
500
|
47.6X2
|
38.6X2
|
5.5X2
|
7680
|
||||
|
Top vibration type
|
GZ3S
|
25
|
35
|
75
|
1.75
|
220
|
4.6
|
3.8
|
0.20
|
242
|
|
|
GZ4S
|
50
|
70
|
100
|
8.4
|
7.0
|
0.45
|
457
|
||||
|
GZ5S
|
100
|
140
|
150
|
12.7
|
10.6
|
0.65
|
666
|
||||
|
GZ6S
|
150
|
210
|
200
|
1.5
|
380
|
16.4
|
13.3
|
1.5
|
1246
|
||
|
GZ7S
|
250
|
350
|
250
|
24.6
|
20
|
2.5
|
1963
|
||||
|
GZ8S
|
400
|
560
|
300
|
39.4
|
32
|
4.0
|
3306
|
||||
|
Closed type
|
GZ1F
|
4
|
5.6
|
40
|
1.75
|
220
|
1.34
|
1.0
|
0.06
|
78
|
|
|
GZ2F
|
8
|
11.2
|
40
|
3.0
|
2.3
|
0.15
|
154
|
||||
|
GZ3F
|
20
|
28
|
60
|
4.6
|
3.8
|
0.20
|
247
|
||||
|
GZ4F
|
40
|
50
|
60
|
8.4
|
7.0
|
0.45
|
464
|
||||
|
GZ5F
|
80
|
112
|
80
|
12.7
|
10.6
|
0.65
|
668
|
||||
Please kindly contact with us for the details as per your application.
Other vibrating equipment is available, please feel free to contact us.
We'd like to supply you the best solution.
