Home >Products Catalog > Moving Head Beam Light > Osram 7R Sharpy 230W Moving Head Beam Beam230 Stage Beam Light

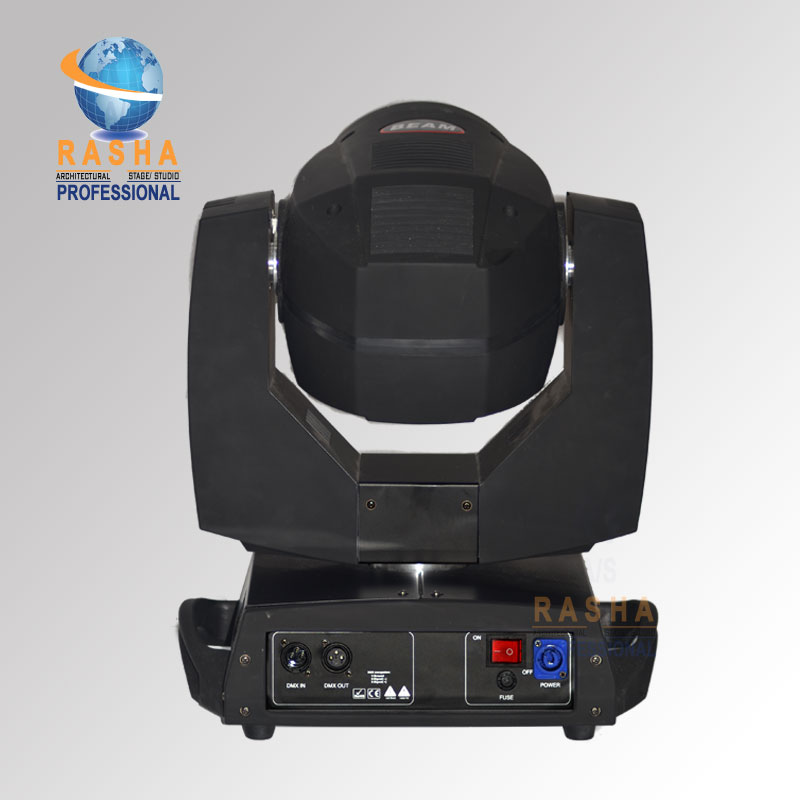

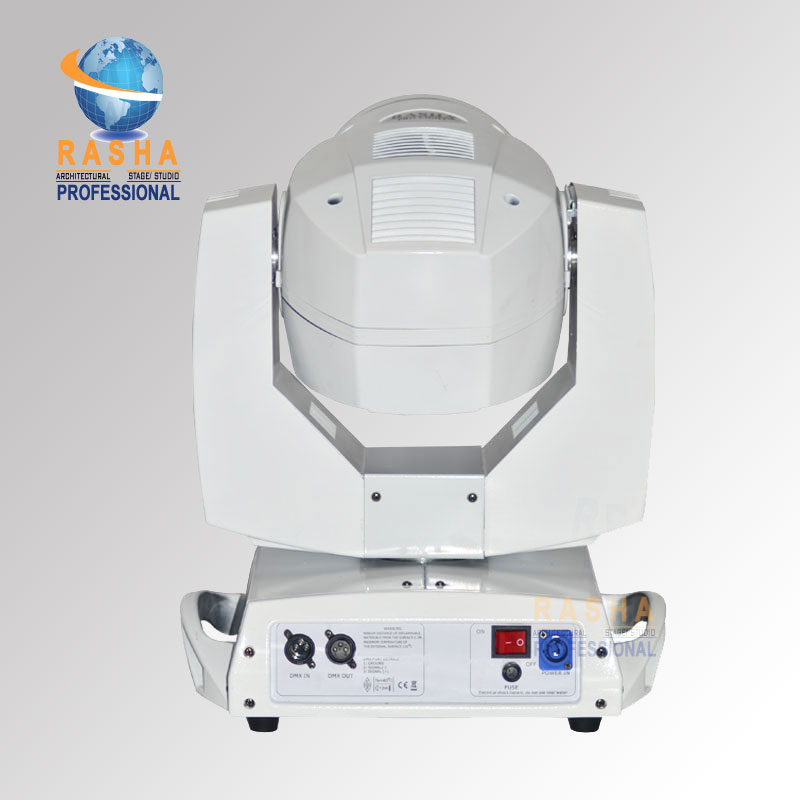

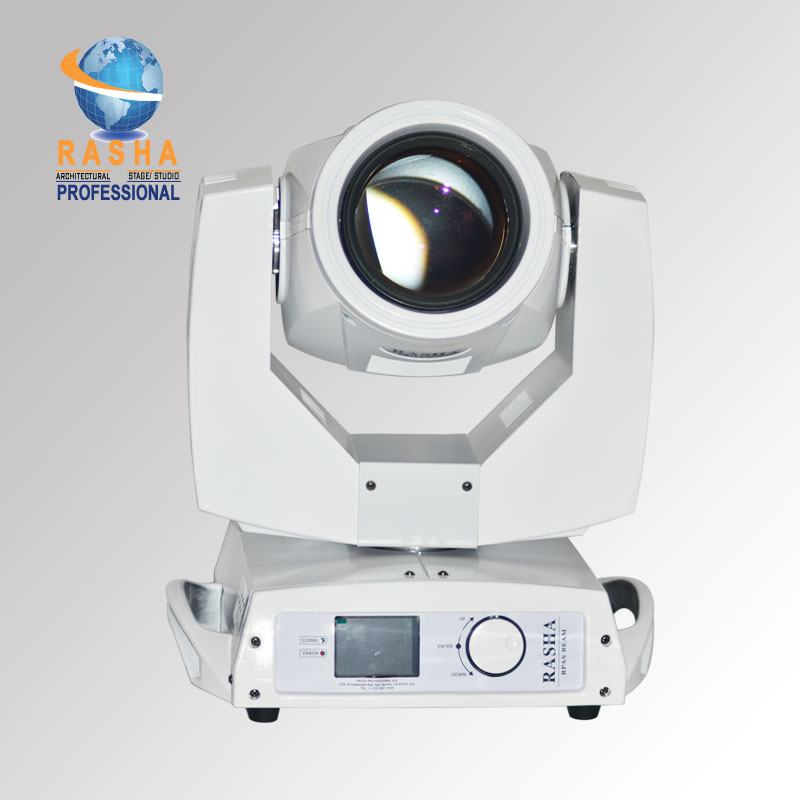

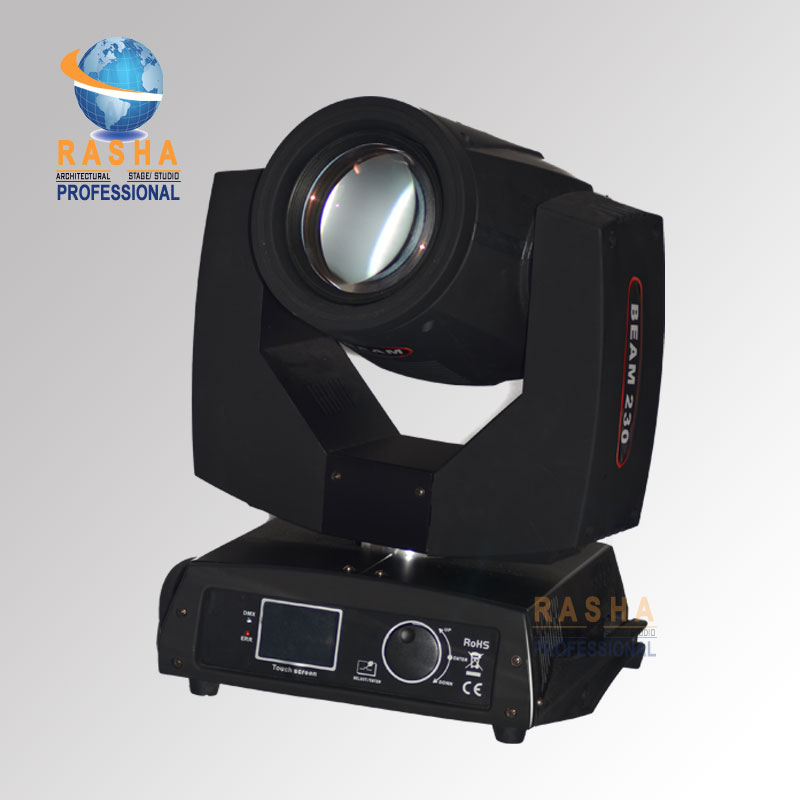

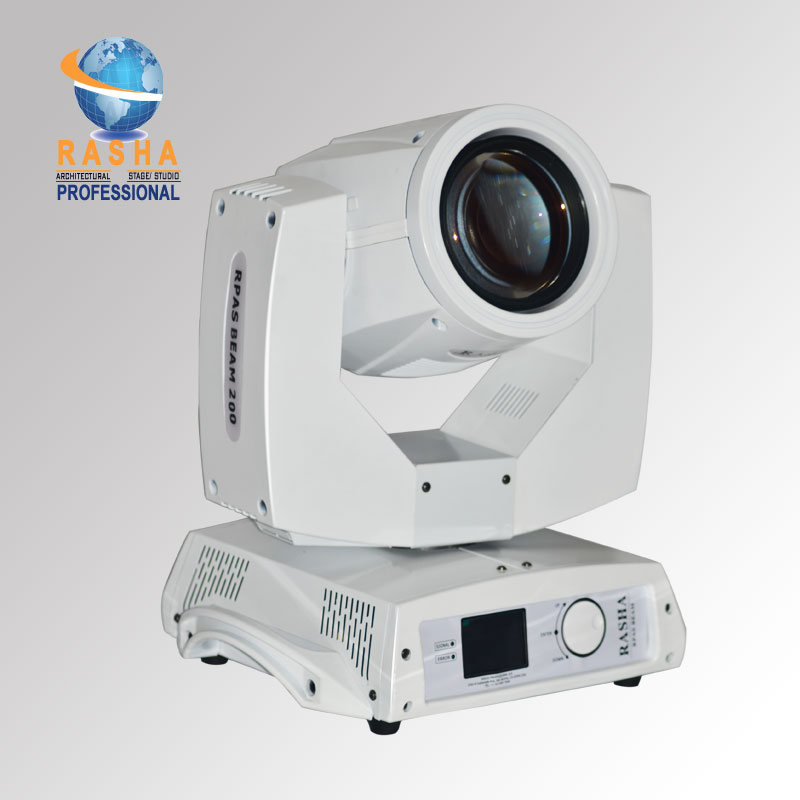

Osram 7R Sharpy 230W Moving Head Beam Beam230 Stage Beam Light

Supply Ability:	100 Piece(s) per Month
Shipping:	10days
Payment Terms:	T/T, Western Union

Inquiry Now

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Guangdong in China
Packaging Details:	Export standard carton/flight case

Quick Details

Type: Moving Head Lights
Brand Name: Rasha Professional
Certification: CE,EMC,LVD,RoHS
Working Lifetime(Hour): 300
Lamp Power(W): 300
Input Voltage(V): 90-240V
Model Number: PN816230
Emitting Color: White
Color Temperature(CCT): Cool White
CRI (Ra>): 75
Lamp Luminous Efficiency(lm/w): 1800
Lamp Luminous Flux(lm): 7950
Light Source: Halogen Bulbs

Specifications

Intoduction

Sharpy beam is a 230W moving beam light with an unprecedented brightness usually achievable only with far greater wattages. Weighing just 16 kg, Sharpy beam 200 produces a perfectly parallel, laser-like beam with an incredible output of 160,000 lx at 10m (160,000 foot-candles at 33 ft). Sharpy Beam 200 had used Philips 5R lamp with output is 189W, we had combined 3-Layer HD Optics Glass Lens for sharp beam display and used 3phase motor for smooth pan and tilt rotation Sharpy beam 200 is also groundbreaking for the purity of its beam, which is sharply defined and free of any halo or discoloration around the edges. It offers 14 different colors and 17 gobos, allowing you to change the shape of the beam and create an array of spectacular mid-air effects. With its light weight and modest footprint, Sharpy beam 200 is small enough to be fitted anywhere  on trusses at live and TV events, on stage, in showrooms or conference rooms.

Product Specification

MODEL NO.	RG-M230B
Power Supply	110V / 240V AC, 50/60Hz
Power Consumption	230W
LAMP SOURCE
lamp	Osram UHP 5R Lamp 200W
Output Lamp Power	189W
Color Temperature	8,500 K
Average Life	3,000 h (Eco mode)
OPTICS
Lens	3-Layer HD Optics Glass Lens combined
Zoom	Zoom from 0-3.8
Light Output	160,000 Lumens at 10 meters (33 feet)
COLOR SYSTEM
Color	Color wheel with 14 colors + open
	Single rotation rainbow effect
	Two models changing (full color and half color operating) with color offset adjustment function
EFFECTIS SECTION
Gobo	Gobo wheel with 17 gobos + open
	Double rotation rainbow effect
	High speed shake effect
	Frost filter
Strobe	Mechanical shutter (1-13 times / s) and adjustable speed strobe effect
Prism	8-facet rotation prism
Mechanical Dimmer	Independent dimmer channel, 0-100% linear dimmer
CONTROL & PROGRAMMING
DMX	20CH
DMX Protocol Signal	DMX 512
DMX Signal Connection	3 XLR input and output
Control	Master-slave mode
	Sound activated mode
	DMX mode
	Auto mode
Display	LCD display
BODY
Body	Two side handles for transportation
Body	Device locking PAN and TILT mechanisms for transportation and maintenance
HEAD MOVEMENT
Head Movement	PAN 540 (16bit) electric correction
	TILT 270 (16bit) electric correction
	With auto-correction function
ELECTRONICS
Electronics	Pre-set macros
	Function reset from the lighting desk
	Lamp ON / OFF can be controlled by controller
	Cooling system monitoring (ADDA Fan)
SAFETY DEVICES
Safety Devices	Automatic break in power supply in case of overheating (100 C / 210 F) of cooling system
Safety Devices	Forced ventilation with axial fans 3 Phase Motor for smooth pan and tilt roatration
WORKING POSITION
Working Position	Any working position
Working Position	With fast-lock Omega clamps (1/4 turn) on the base
PACKAGING
Light Body	Measurement 330 x 390 x 490MM
Light Body	N.W. 16KG
With Carton Box	1 light each carton box
	Measurement 45 x 42 x 56 cm
	G.W. 23 KG
With Flight Case	2 lights each flight case
	Measurement 88 x 46 x 69 cm
	G.W. 69 KG
