GD-350 Pen Type Water Conductivity Meter

In Stock

Inquiry Now

Multi Jet Dry Type Water Meter

Price:

Min. Order:
Water Meter Battery D Size (ER34615)

Price:

Min. Order:
G1.6/2.5 IP68 Intelligent Water meter with alar...

Price:15.00-25.00 USD/Piece

Min. Order:10 Pieces
SBL-Digital Water Meter

Price:5555.00 USD/Set

Min. Order:1 Set

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Chongqing in China
Packaging Details:	Wooden box or as request

Specifications

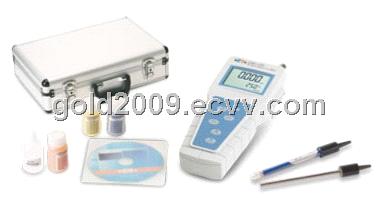

GD-350 Liquid Conductivity Meter

Functions:

1.Special backlit LCD display

2.It can measure conductivity, TDS, salinity and temperature.

3.It functions as automatic temperature compensation and automatic calibration.

4.It provides power failure protection and automatic power-off functions.

5.It has calibration function. The user can calibratesensor coefficient and TDS conversion coefficient.

6.Measuring results can be stored, deleted and viewed. Up to 100 sets of test data can be stored.

7.It has RS-232 port and can be connected with TP-16 printer. If matched with data collecting software, it can be communicated with PC.

8.If matched with the titanium alloy sensor of 0.01cm^-1and sealed measuring reservoir, it can test high purity water.

9.It is equipped with DJS-1C conductancesensor(platinum black) and T-818-B-6 temperaturesensor.

Specifications:

1.Measuring range:

Conductivity: 0.000μS/cm~100mS/cm,five measuring ranges and automatic switch

TDS:0.000mg/L~19.99g/L, five measuring ranges and automatic switch

Salinity: (0.00~8.00)%

Temperature: (0.0~40.0) °C

2.Accuracy:

Conductivity: ±1.0%(FS)

T D S: ±1.0%(FS)

Salinity: ±0.20%

Temperature: ±0.3°C±1 bit

3.Stability: (±0.7%FS)/3h

4.Temperature compensation range: Manual/Automatic ( 0.00~40.0 ) °C

5.Power supply: 4 alkaline batteries of model 5

6.Dimension(mm):210×86×50

7 .Net Weight: 0.5kg

8.Case outside serial No: WXS-A006-1

Package Size: 500X380X220mm

Gross Weight: 3.5kg

Electrode Constant and corresponding Conductivity measuring range

Electrodeconstant (K) (cm^-1)	0.01	0.1	1.0	10.0
Measuring range	0.000~19.99μS/cm	2.00~199.9μS/cm	20.0μS/cm~19.9ms/cm	200μS/cm~199.9ms/cm
