Jinan Yaobang CNC Equipment Co., Ltd.
China Manufacturer with main products: Laser Engraving Machine, Laser Cuttng Machine, CNC Router, Laser Marking Machine, Woodworking Machine, Plasma Cutting Machine, Laser Metal... |
Automatic Bending Acrylic Machine Jinan AOL China
| FOB Price: | 3,250.00 - 6,000.00 USD/Set |
|---|---|
| Supply Ability: | 312 Set/Sets per Month |
| Shipping: | Qingdao |
| Payment Terms: | L/C, T/T, Paypal, Western Union, Excrow |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Shandong in China |
| Packaging Details: | wooden case |
Specifications
Detailed Product Description
> Acrylic bending machine
> V shape angle 30-180 degree
> Bending length 0-2550mm
> Unlimited bending width
> 220V/50-60Hz
> Acrylic bending machine
> V shape angle 30-180 degree
> Bending length 0-2550mm
> Unlimited bending width
> 220V/50-60Hz
Name:
2500mm Acrylic Bending Machine
Application:

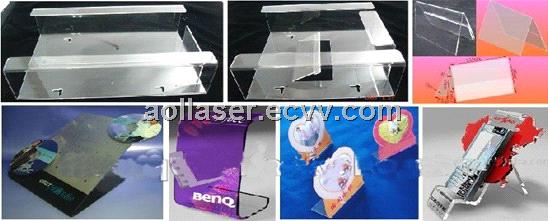

It is applied to bend acrylic sheet, organic sheet, resin sheet, PVC and hard plastic etc.
It is a necessary machine for advertisement industry, especially useful for mass
production.
It is a necessary machine for advertisement industry, especially useful for mass
production.
1. The bending machine helps you to easily and quickly produce different V-shape profile.
2. The bending machine allows to universally adjust internal sizes of the V-Shaped profiles .
3. That allows to avoid time-consuming and cost-intensive adjustment of the bending machine.
4. It can be used to bend components of ACRYLIC, PVC, PMMA, PC, ORGANIC GLASS,
RESIN etc.
RESIN etc.
5. We pay attention to details parts of the machines, therefore our products quality is
steady and perfect.
steady and perfect.
Technical Feature:
1. Digital operation, easy and convenient.
2. Both automatic and manual working status.
3. According to sheet thickness and material characteristic to set heating time, it will bend automatically when it reaches time set in advance.
4. Bending angle is adjustable from 1-179 degree.
5. Adopt special quartz heating tubes, rapid heating speed and long working life.
6. Working voltage is adjustable so to meet different material characteristic and different thickness sheet, avoid buring or destorying material.
7. Worktable and workpiece are cooled by water. When water temperature is over, it will alarm automatically.
8. With function of electrical leakage protection to make sure safe operation.
Specification Sheet:
|
Model No.
|
AOL-2500
|
|
V-shape Angle Range
|
30-180 degree automatically, 0-30 degree manually
|
|
Bending Length
|
0-2550mm
|
|
Bending Width
|
Unlimited
|
|
Bending Thickness
|
8mm directly, thicker sheet can be bent after milling firstly
|
|
Heating Tubes Type
|
Infrared quartz heating tubes
|
|
Heating Tube Q' ty
|
3pcs, radian bending available
|
|
Machine Dimension
|
300x55x110CM
|
|
Weight
|
260kg
|
|
Rated Voltage
|
AC180V-240V
|
|
Heaters Q’ ty
|
3pcs, can bend radian
|
|
Rated Frequency
|
50-60Hz
|
