Pcs Equip Co., Ltd.
China Manufacturer with main products: Co2 Laser Tube, Bearing Heater, Power Supply, Laser Lens, Laser Mirror, Chiller, Power Meter, Controller |

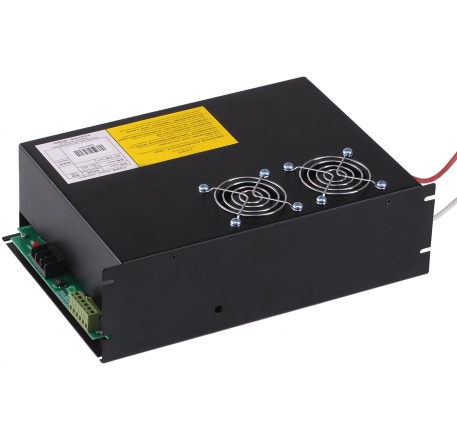

Laser Power Supply 80-120W for Laser Machine
| FOB Price: | 90.00 - 95.00 USD/Piece |
|---|---|
| Supply Ability: | 100,000 Piece(s) per Year |
| Shipping: | Dalian,Beijing |
| Payment Terms: | L/C, T/T |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Packaging Details: | carton |
Quick Details
- Brand Name: Yongli
- Applicable Material: Nonmatal
- Warranty: 12 months
- Graphic Format Supported: all
- Certification: CE,FCC, FDA, ROHS
- Model Number: YL-U1
- Model: YL-U1
- Power: 80-120w
- Input votalge: 220V/110V
- Output Current: 35Kv
- Output current: 28mA
- Warranty: 12 months
Specifications
Main Features
1. Compatible with various of Co2 laser tube specifically Targeted at Yongli laser tube enhanced CO2 laser tube supporting the use of Laser power supply.
2. Superior performance: good stability, fast response, dramatically lengthens the service life of laser.
3. Easy Control: the start and stop of laser can be easily controlled by TTL Level. and there are protection switch to test the external water, ventilation, Etc.
4. Easy control of laser power: both 0-5V analog signal and PWM signal can Control the laser power.
5. the power supply has the function of open circuit protection: under the Condition of good protective earthing, the power supply can work in Open-circuit condition for a short time, which could avoid the damage of laser Power supply because of the bursting of laser tube, thereby enhancing the life of power supply.
6. the power supply 110V and 220V Voltage optional, which can be used in all Kinds of co2 laser machine.
7. Application: CO2Laser power supply are mainly applied in Engraving & cutting machine, laser marking machines and medical laser Machine.
SpecificationsModel |
Power (W) |
Max output current(mA) |
Output Voltage(KV) |
Dimension (mm) |
Max Input Power (W) |
N.W. (kg) |
YL-2 |
40-70 |
25 |
DC 30 |
220*150*100 |
450 |
2.5 |
YL-UⅠ |
80~120 |
28 |
DC 35 |
270*180*80 |
600 |
3.2 |
YL-UⅡ |
130~150 |
35 |
DC 45 |
320*210*100 |
1000 |
5 |
Technical parameters
Input Voltage
|
AC220V or AC110V(to be Specified when placing order) |
AC Input Frequency
|
47~440Hz |
Efficiency
|
91%(Full Loading) |
MTBF |
≥10000hrs |
Speed of response |
≤1ms |
Input-output, input-chassis: AC1500V 10mA 60s; the output negative pole is connected to the chassis. | |
Cooling Way |
Fan Cooling |
Working Temperature
|
-30℃~65℃ |
Relative Humidity
|
20~85%RH(No Condensation) |
Vibration Resistance
|
Amplitude: 1mmFrequency30Hz Two hours |
Aging Time |
Continuous4 Hours PulseHalf an hour(Frequency60Hz) |
