Home >Products Catalog > evaporation vacuum coating machine > Emulsion cap / Nail Polish cap coating machine

Emulsion cap / Nail Polish cap coating machine

FOB Price:	1.00 USD/Set
Supply Ability:	350 Set/Sets per Year
Shipping:	30 working days after payment
Payment Terms:	L/C, T/T

In Stock

Inquiry Now

Related products from verified members

J23 Open Back Inclinable Press

Price:

Min. Order:1 Set
Hydraulic Swing Beam Guillotine Shears

Price:

Min. Order:
Lime Rotary Kiln for Quick Lime, Active Lime Ca...

Price:6000.00 USD/Set

Min. Order:1 Set
Side of Pole Mounts (SWMS0.85-80(8-3))

Price:

Min. Order:
Hydraulic Press for Composite Material Forming

Price:300000.00 USD/Set

Min. Order:1 Set

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Guangdong in China
Packaging Details:	wooden packaging

Specifications

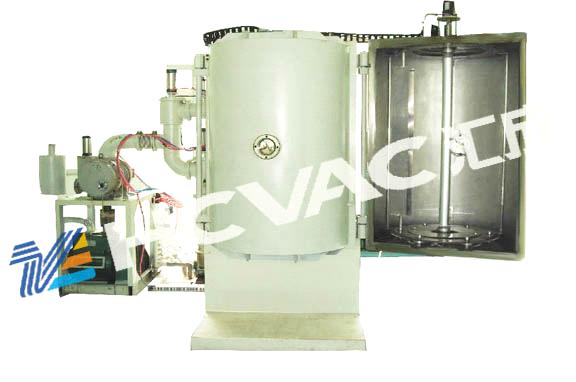

Emulsion cap vacuum coating/ Nail Polish cap coating machine

The equipment adopts the resistance heating in the vacuum chamber, to melt and vaporize the metal wire (aluminum wire) cling to the resistance wire. The vaporized metal molecule deposit on the substrates, to gain the smooth film as well as high reflectivity. Thus the surface of the items can be decorated and beautified.

Characteristic: reasonable structure, even film, good-quality film forming, quick pumping speed, the cycle of short, high efficiency and easy operation, low energy consumption and performance advantages of stability.

Applied industry: Widely used in automotive, audio and various small appliances, computers, clocks and watches, toys, cell phones, reflective Cup, cosmetics, toys, tableware, sanitary ware, shoe heel, ABS, PS, PP, PC, PVC, PET, nylon, metal, Boli, glass, ceramics, TPU, etc.
Electroplating effects: general electroplating-face, dumb-(semi-mute, all dumb), the electroplating process wrinkles, lampworking, raindrops, seven colors;
Coating color: gold, silver, red, blue, green, purple, multi color, and so on.

Technical parameter:

Mode Dimension	ZZ-1214	ZZ-1416	ZZ-1618	ZZ-1820
	1200*1400mm	1400*1600mm	1600*1800mm	1800*2000mm
Film Type	Semitransparent film, non-conducting film, gold, silver, red, blue, green, purple, seven color, etc.
Power source Type	Thermal evaporation power, ion bombard power, RF power
Vacuum chamber structure	Vertical double/single door, horizontal single door, pump system postposition
Ultimate vacuum	8.0*10^-4Pa
Vacuum system	Diffusion pump +Roots pump +Mechanical pump +Holding pump
Pump time	Pump from atmosphere to 5.0*10^-2,≦6 minutes
Workpiece motion mode	Public rotation/Frequency control
Control mode	Manual/Automatic all-in-one mode, Touching screen+PLC
Remark	We can design the dimension of the vacuum chamber according to customer’s demand.

We can design the dimension of the vacuum chamber according to your requirements. We can also design and configure the vacuum unit and electric controlling system according to your requirement.
