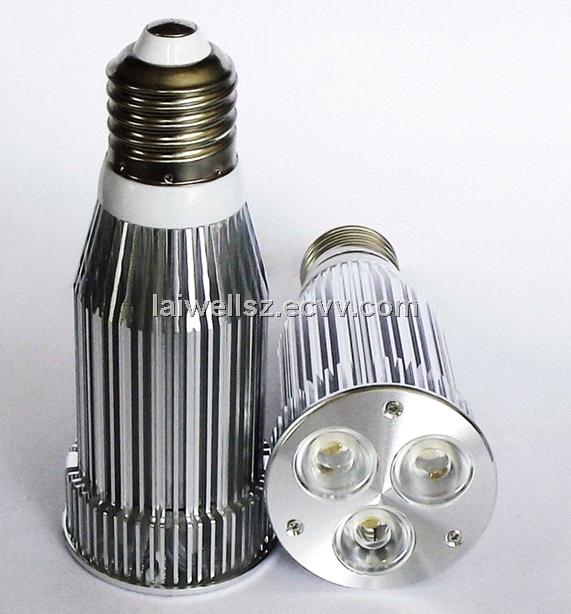

3*3W Spotlight (LW-SL3)

Inquiry Now

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe

Specifications

3*3W Spotlight(LW-SL3)

1, GENERAL DESCRIPTION

3pcs of 3W LED unit chip, always 9W (9.5W including driver consuming), Epistar 120-130Lm, 85-265VAC.

LED light color is rich, strong reducibility suitable for high-end commercial lighting. Green lighting products, do not contain mercury, lead pollution such as elements, without harmful radiation. Using efficiency, low consumption, stable control technology products pulse modulation of energy-saving, environmental protection, the purpose of electromagnetic compatibility.

Warranty two years.

2, PRODUCT SIZE:

ITEM	DIAMETER	HEIGHT
3*3W SPOT LIGHT	￠50±0.5 mm	115 ±1 mm, Including base

3,TECHNICAL PARAMETERS:

BASE	E11, E14, E26, E27, Gu10, Mr16......
Input voltage	185-265VAC / 12VDC
LED quantity	3PCS, 3W LED, Epistar
Color temperature	WW: 2800~3200K		PW: 5500~6500K
Beam angle	8/15/30/45/60/90/120°
luminous flux(LM)	WW / NW : 500-550LM / 550-600LM
Power consumption	9.5W including driver consuming
Housing material	Aluminium housing
Ingress Protection	IP20
Light temperature rise	≤60^oC
Life-span	50,000 Hours
Warranty	2 Years
Color rendering index	CRI=75 (WW)	CRI=80 (NW / CW)
Work environment	-20℃~45℃, 20%~90%RH(Non condensing)
Storage temperature	-20℃~85℃, 20%~95%RH(Non condensing)
