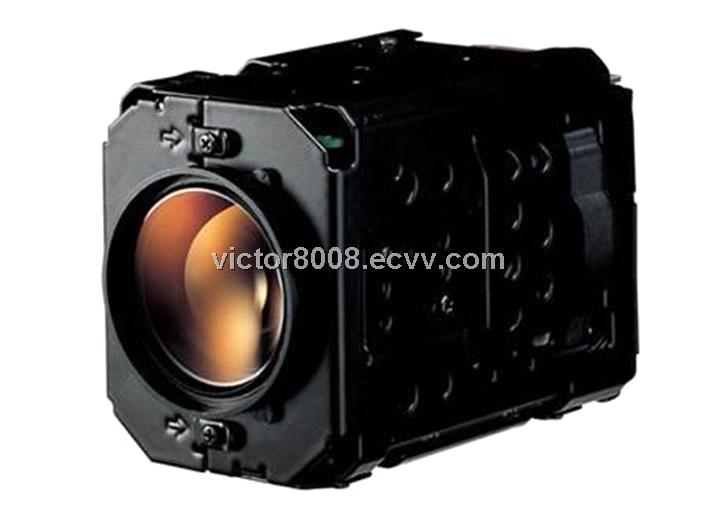

LG37X OPTIC ZOOM VIDEO CAMERA MODULE

Inquiry Now Start Safebuy Order

ECVV Safebuy Services

According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
Safebuy Service Guarantee

Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Jiangsu in China
Packaging Details:	CARTON

Specifications

Brand	LG
Image Sensor	1/4" Interline Transfer CCD
Video Format	PAL
Active Pixels	795(H) x 596(V)
Horizontal Resolution	Color 550tvl B/W 680tvl
Lens	37X optic zoom and 12X digital zoom
Focal Length Range	f = 3.5 to 129 (F 1.56 to 4.09)
SYNC	Internal (V-Lock)
Iris Control	DC iris
DSP	LG XDI
S/N Ratio	≥52dB (AGC off)
Min Illumination	0.003(0.6)Lux(Sens-up off) 0.0001(0.1)Lux(Sens-up off)
Electronic Shutter	1/50~1/12,000s
Digital Flickerness	EIS
WB	Auto/auto tracing WB/indoor/outdoor/one-click/manual
Scanning System	15.625KHz(H) 50Hz(V)
Camera Operation Button	Zoom tele/wide
Iris & Zoom	Auto/Manual
Image Effective	Autoflip/reverse/black and white/mirror image effect
Work Shift	Tele/near zoom
Video Output	VBS:1.0Vp-p(sync negative ), Y/C output
Store Temperature	20℃~60℃/0%RH~85%RH
Work Temperature	–10℃~50℃/0%RH~80%RH
Power Consumption	DC 8V -15V (recommandation:9V or 12V )
Demension (WHL)	50 X 60X 92mm(50 X 60X 98mm)
