Jinan Yaobang CNC Equipment Co., Ltd.
China Manufacturer with main products: Laser Engraving Machine, Laser Cuttng Machine, CNC Router, Laser Marking Machine, Woodworking Machine, Plasma Cutting Machine, Laser Metal... |

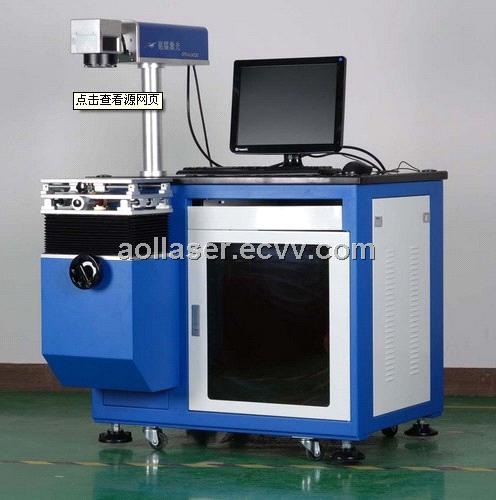

20w Fiber Laser Marking Machine for Metal
| FOB Price: | 12,900.00 - 23,000.00 USD/Set |
|---|---|
| Supply Ability: | 200 Set/Sets per Month |
| Shipping: | Qingdao sea port |
| Payment Terms: | L/C, T/T, Paypal, Western Union, Excrow |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Shandong in China |
| Packaging Details: | Wooden case |
Specifications
Fiber laser marking machine for metal
Technical Parameter:
Technical Parameter:
|
Model
|
AOL-20
|
|
Laser device
|
Germany Fiber laser device
|
|
Optical maser wavelength
|
1064nm
|
|
Average output power
|
20W
|
|
Modulation frequency range
|
20KHz~80KHz
|
|
Maximum speed
|
7000mm/s
|
|
Resolution
|
0.001mm
|
|
Repeat location accuracy
|
0.003mm
|
|
Marking range
|
F=160mm, 110× 110mm
|
|
Minimum line width
|
0.01mm
|
|
Minimum character height
|
0.2mm
|
|
Sheet label marking time
|
≤ 90 s (depend on the content)
|
|
Paper cutting mode
|
Pneumatic hob
|
|
Working table
|
Working table with vacuum system
|
|
Laser power supply
|
800W/AC220V/50Hz, 1.1KW/AC220V/50Hz
|
|
Cooling mode
|
Air cooled
|
|
The Max input power
|
2 phase 220V AC, 50Hz, about 2KVA, 2 phase 220V AC, 50Hz, about 2.5KVA
|
|
Environmental Requirement
|
0~35° C,humidity≤ 90%
|
|
Package
|
Wooden case
|
|
Delivery time
|
5 days
|
Feature:
The Flexible label laser marking machine is used for more than 30 series in automobile industry, like the Body label, oil pressure label, VIN code label, air conditioning label, bar code label, cooling system label, key label, oil tank label, car door label, etc.
1. Good flexibility and adaptability Combine with the spot workstation; accept model, production date, maintenance code, etc of the auto mobile, with the specialized software to convert into plane laser marking output. This can meet fully require of on-line production, especially suitable for the mixed-model assembly line of a few different models.
2. Maintenance-free The hardcore adopt imported fiber laser device, with good quality light beam(ground mode output) and long service time of 100000 hours to reach maintenance-free
3. Good anti falsification As the flexible label marking machine is with complicated configuration, and the soft label material onoff type, it is hard to copy. And it can protect the manufacturers’ and customers’ lawful rights and interests
4. Low aggregate cost : For quantity production and enterprises with many different automobile models, no other Consumable is need, uses especially economical
5. Made of Special Material : heat resisting, wear resistant, corrosion proof, repellent, long working life.
The Flexible label laser marking machine is used for more than 30 series in automobile industry, like the Body label, oil pressure label, VIN code label, air conditioning label, bar code label, cooling system label, key label, oil tank label, car door label, etc.
1. Good flexibility and adaptability Combine with the spot workstation; accept model, production date, maintenance code, etc of the auto mobile, with the specialized software to convert into plane laser marking output. This can meet fully require of on-line production, especially suitable for the mixed-model assembly line of a few different models.
2. Maintenance-free The hardcore adopt imported fiber laser device, with good quality light beam(ground mode output) and long service time of 100000 hours to reach maintenance-free
3. Good anti falsification As the flexible label marking machine is with complicated configuration, and the soft label material onoff type, it is hard to copy. And it can protect the manufacturers’ and customers’ lawful rights and interests
4. Low aggregate cost : For quantity production and enterprises with many different automobile models, no other Consumable is need, uses especially economical
5. Made of Special Material : heat resisting, wear resistant, corrosion proof, repellent, long working life.
