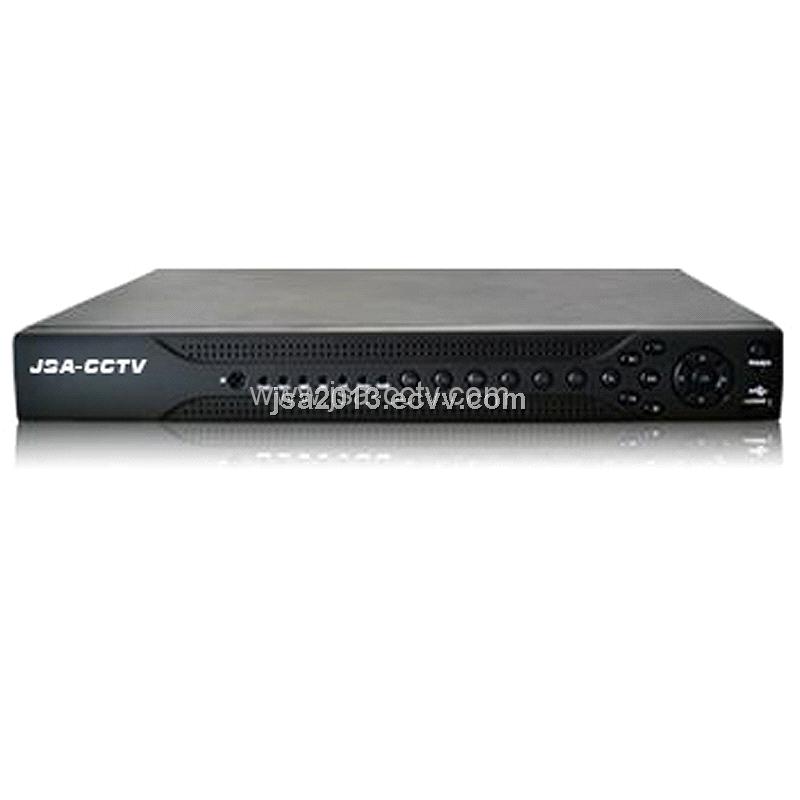

Supply CCTV Camera --- 6DVR016 Series

In Stock

Inquiry Now

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Guangdong in China
Packaging Details:	1 unit per box

Specifications

Product Features:

Support voice intercom;
Adopting standard H.264 compression algorithm;
Support 16 channel video input full real-time video;
Support VGA,BNC display output simultaneously;
Support 16 channel video sync playback;
Support high-speed mouse cloud, convenient to control PTZ;
2 STATA HDD interface, support TB HDD
Support multiple DDNS( Oray, 3322, dyndns);
Support mobile phone preview (Windows Mobile, Symbian, iPhone, Android, BlackBerry);
Support Stand-alone management software / NVR / Decoder / CMS platform server / Third-party management platform; can be mixed with analog or SDI system network.

Technical data table:

Model/ Series	6DVR016C		6DVR016CA
Main Processor	Industrial-grade embedded microprocessor
Operating System	Embedded LINUX OS
Video Format	PAL/NTSC
System Resources	Multi-channel video, video playback, network operations
Operating Interface	Support mouse, front panel, remote control
Display Split	1/4/8/9/16
Monitoring Image Quality	16CIF		2D1+14CIF
Playback Image Quality	CIF/QCIF		D1/CIF/QCIF
Image Compression	H.264 limit stream, H.264 variable stream
Image Control	1-6 level
Video Speed	PAL: 25 fps, NTSC: 30 fps
Motion Detection	Zone:((22×18) Sensitivity: 1~6 (level 6 is highest)
Audio Compression	G.711
Video Mode	Manual >Alarm> MD> Regular
Local Playback	Support 16-ch sync playback
Video Query Method	Support time points, calendar, event and channel
Video Save	Local hard disk / Internet/ USB
Backup Mode	Internet/ USB/ Local hard disk
Video Input	16-ch BNC
Video Output	1 –ch BNC,1 -ch VGA	1 -ch BNC,1 -ch VGA, 1-ch HDMI
Audio Input	1-ch BNC	16-ch BNC
Audio Output	1 –ch BNC
Alarm Input	1-ch
Alarm Output	1-ch relay output (30V DC 2A , 125V AC 1A)
Network Interface	RJ45 10M/100M Adaptable Ethernet interface
PTZ Control Interface	1 RS4168 port
USB Interface	Two ports
Video Save	Local hard disk/ IP SAN NVR/ System platform/ USB
HDD Interface	2 SATA ports
eSATA	Support
Network Keyboard	Support
Power Supply	DC12V±10%( Power External)
Power Consumption	< 15W (Exclude HDD)
Working Temperature	-10 ℃ ～+55 ℃
Working Humidity	10% ～ 90%
Atmosphere	86kpa～106kpa
Dimension	350mm295mm45mm
Weight	5.1kg(Exclude HDD)
Mounting	Rack-mounting, Desktop
