Zhejiang Shenglong Machinery Co., Ltd.
China Manufacturer with main products: Drawing Machine, Woven Bag Making Machine Circular Loom, Shopping Bag Machine Equipment, 4 Shuttle Circular Loom, 6 Shuttle Circular Loom,... |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|
Specifications

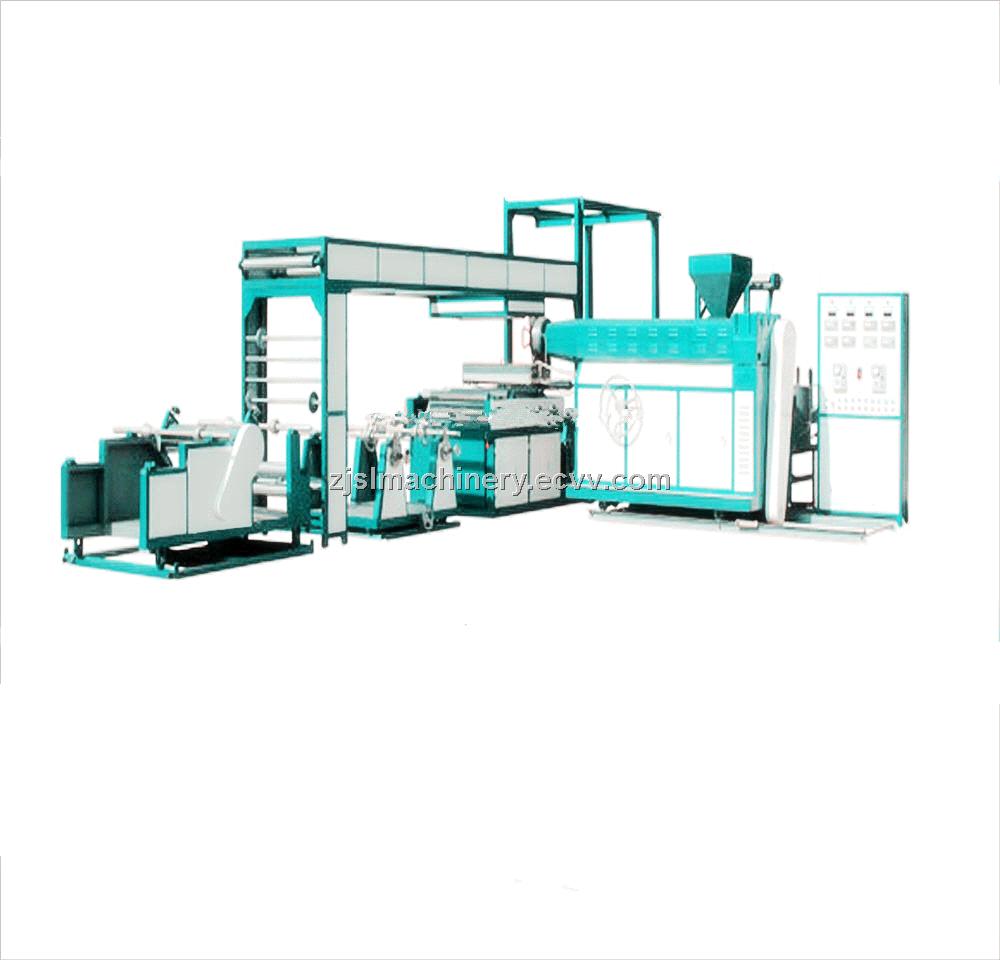

This machine adopts double die heads plastic extruding parts, it could coats the rolled plastic woven sacks with single or double sides films, laminates the sacks with the single or double sides papers, also could laminates the sacks with single or double sides OPP, CPP films.
As the production flow, rolled plastic woven sacks is sending from the emptying and correction device, the paper, OPP or CPP color films is sending from the double position empty devices, through the four pressure rollers, laminating parts, then get to the edge cutting and winding device.
The whole production flow was equipped with the advanced electricity, tension control system and mechanical device, it has realized to do single regulator and group control at the same time, also it could laminate the sacks with single or double sides OPP, CPP color films. Due to follow the computer magnetic optical electricity eye-tracking regulator, the automation of this machine has greatly improved. The extruding machine takes the automatic temperature control, auto material feeding device and frequency speed regulator.
As the production flow, rolled plastic woven sacks is sending from the emptying and correction device, the paper, OPP or CPP color films is sending from the double position empty devices, through the four pressure rollers, laminating parts, then get to the edge cutting and winding device.
The whole production flow was equipped with the advanced electricity, tension control system and mechanical device, it has realized to do single regulator and group control at the same time, also it could laminate the sacks with single or double sides OPP, CPP color films. Due to follow the computer magnetic optical electricity eye-tracking regulator, the automation of this machine has greatly improved. The extruding machine takes the automatic temperature control, auto material feeding device and frequency speed regulator.
Content DATA
DIAMETER OF EXTRUDER SCREW(mm) 90
L/D RATIO OF SCREW (L: D) 28: 1
QUANTITY OF DIE(PCS) 2
WINDTH OF DIE (mm) 1000
TOTAL POWER(kw) 49.5
POWER OF EXTRUDER ENGINE(kw) 15
HEATING POWER OF EXTRUDER(kw) 29
POWER OF DRAWING ENGINE 5.5
WIDTH OF LAMINATING (Max. Mm) 750
SPEED OF LAMINATING(m/min) 30-100
DIMENSIN(LxWxH, mm) 17000× 6000× 2500
WEIGHT(kg) 6000
DIAMETER OF EXTRUDER SCREW(mm) 90
L/D RATIO OF SCREW (L: D) 28: 1
QUANTITY OF DIE(PCS) 2
WINDTH OF DIE (mm) 1000
TOTAL POWER(kw) 49.5
POWER OF EXTRUDER ENGINE(kw) 15
HEATING POWER OF EXTRUDER(kw) 29
POWER OF DRAWING ENGINE 5.5
WIDTH OF LAMINATING (Max. Mm) 750
SPEED OF LAMINATING(m/min) 30-100
DIMENSIN(LxWxH, mm) 17000× 6000× 2500
WEIGHT(kg) 6000
Service Guarantee
-
Free Service Charge
ECVV doesn't charge any service fee to Buyers for buying this product.
-
ECVV Supply
ECVV is responsible for supply, and provides product quality inspection, fund supervision and supply chain services.
-
Product Quality Commitment
ECVV China Sourcing Agent will assess the reputation and supply ability of the factory and conduct field trips to select the high-quality Chinese factories for buyers.
-
Deposit Service Commitments
In order to improve the quality of service, ECVV will charge for a 100CNY deposit for the agent purchasing order, and the deposit will be part of subsequent purchasing costs.
After paying a deposit, if the purchasing order is not completed because of unsatisfied ECVV services, ECVV will refund your deposit.
Lamination Machine from this supplier
FOB Price: 20,000.00-30,000.00 USD/Set
Min Order: 1 Set
Min Order: 100 Pieces
