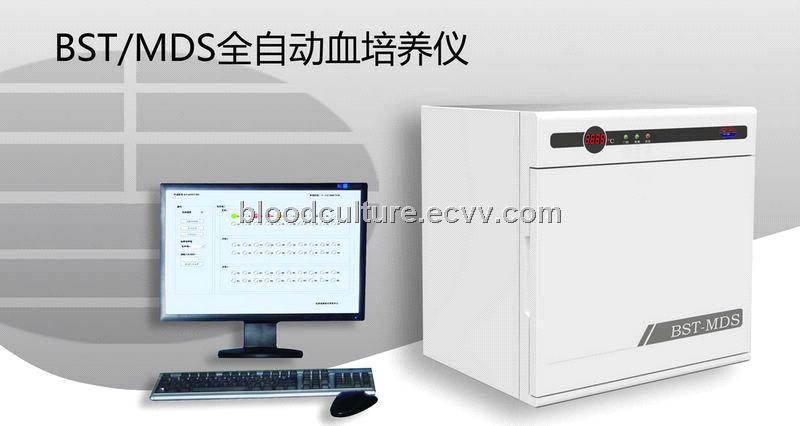

BST automated blood culture system

Payment Terms:	T/T

Inquiry Now Start Safebuy Order

ECVV Safebuy Services

According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
Safebuy Service Guarantee

Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Beijing in China

Specifications

BST/MDS blood culture system is a fully automated blood culture, body fluid culture and microbe detection system designed to test the blood or body fluid specimens for microbial growth.

We released our BST/MDS blood culture system in 2012, and got the registration certificate for our BST/MDS blood culture system in 2012 also.

Inoculate the patient's blood or body fluid into the aerobic culture bottle and/or anaerobic culture bottle, and load the culture bottles in the automated blood culture instrument, the instrument will shock, incubate and monitor the bottles continuously. We will get the culture results in the set detection period. The screen will report the positive results when the instrument detects the bottles are positive. If there is no microbe growth sign in the bottles when the detection period is over, the bottles are determined negative.

The blood culture system processes each blood culture bottle independently, and we may load and test new blood culture bottles at any time.

At present we offer two blood culture system models: BST/MDS-60 and BST/MDS-100 with 60 and 100 bottles capacity.

BST/MDS Blood Culture System Features

Applications: to test the aerobic bacteria, anaerobic bacteria and fungi at the hospitals, disease control centers, food industry, customs inspection, medical universities, and science research institutions
Testing principle: coloration method
Functions: continuous incubation, fully automated monitor and judge positive culture and negative culture
Positive judgement criteria: threshold method, slope method and double speed method
Alarm foundation: microbe growth velocity and acceleration
Incubation detection period: to be set by the operator, and at most 7 days
System hardware: host instrument, monitor, barcode scanner, keyboard, mouse, UPS
System software: English operation system, English operation interface, with barcode scanning, patient number and patient information
System capacity: 60/100 bottles for each standard BST/MDS-60/100 system, and at most 2 culture boxes with 60/100 bottles can be added, with the total capacity of 180/300 bottles
Detection method: the system automatically reads the color data of the sensor at the bottom of each bottle every 10 minutes and creates the time and data corresponding changing curve
Interpretation method: according to the bacterial growth model at prophase, metaphase and saturated phase, the data is analyzed for start value, speed, acceleration, etc.
Test specimens range: blood, sterile body fluid and mycobacterium tuberculosis
Optical detectors: the system offers an independent optical detector for each bottle, and each bottle has an independent sensor
Bottles placed in: free to load and unload the culture bottle
Bottles place: with indicator light and alarm function
Report function: the status report can be displayed on screen or be printed
Data backup: data backup can be done automatically as default or manually through USB port
Internet: can be connected with the hospital laboratory information system (LIS)
Bottles types: supports Botai blood culture bottles and BioMerieux's BacT/Alert blood culture bottles

BST/MDS Blood Culture System Specifications

Host instrument dimensions: BST/MDS-60: 650X550X600mm; BST/MDS-100: 650X550X680mm
Power supply: AC, 220±10%V, 50±2% Hz. The power ground is required, make sure the socket meets the national electrical specifications.
Power: 600 W
Weight: 50 KG for BST/MDS-60, 70 KG for BST/MDS-100.

BST/MDS Blood Culture System Working Environment Requirements

Working environment temperature: 15~28
Relative humidity: 30~75%
Atmospheric pressure: 860~1060hPa
