Specifications

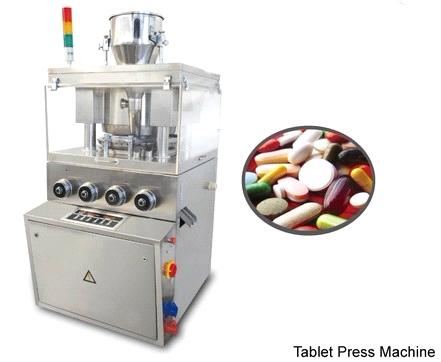

Working Principle:
Fitted with transparent glass doors, can be clearly observed for tablets press, and also can be fully open, easy-to-house cleaning and maintenance. All controllers and operating parts are reasonable layout, the use of frequency control devices operating speed so that is easy operation, smooth rotation, accurate and secure. The machine is equipped with overload protection devices and other safety devices to ensure safe and stable operation.
Main Specification:
Die No. From 5 sets to 41 sets
Production Capacity: Customized
Max. Pressure 80kn
Max. Tablet Diameter 13mm 13mm
Filling Depth 15mm 15mm
Carachteristics:
1. Meets GMP requirements. Can press round tablets, engraved tablets and irregular tablets. Available for pharmaceutical factory, food and chemical industries.
2. Central lubrication system, a perfect combination of the main machine and control system;
3. Advanced automatic control system exactly monitored the whole process in a series of working situation such as rotation speed, output, weight of tablets, accuracy and malfunction etc.
4. PLC operation system. Operation menu is easy to understand.
5. Punch turret of D, B and BB can be fast replaced on one machine to achieve economical and practical purpose;
6. Punch turret can be removed easily and cleaned easily.
7. Tablets formed Twice by main pressing and pre-pressing.
8. Force-feeding device controls the flow of powder and ensures the accuracy of feeding.
9. Imported hydraulic pump unit sustains the main pressure and pre-pressure, pressing stably with low noise, and the hydraulic system will act as a buffer and protector while the pressure is over high.
Main Parameters:
Fitted with transparent glass doors, can be clearly observed for tablets press, and also can be fully open, easy-to-house cleaning and maintenance. All controllers and operating parts are reasonable layout, the use of frequency control devices operating speed so that is easy operation, smooth rotation, accurate and secure. The machine is equipped with overload protection devices and other safety devices to ensure safe and stable operation.
Main Specification:
Die No. From 5 sets to 41 sets
Production Capacity: Customized
Max. Pressure 80kn
Max. Tablet Diameter 13mm 13mm
Filling Depth 15mm 15mm
Carachteristics:
1. Meets GMP requirements. Can press round tablets, engraved tablets and irregular tablets. Available for pharmaceutical factory, food and chemical industries.
2. Central lubrication system, a perfect combination of the main machine and control system;
3. Advanced automatic control system exactly monitored the whole process in a series of working situation such as rotation speed, output, weight of tablets, accuracy and malfunction etc.
4. PLC operation system. Operation menu is easy to understand.
5. Punch turret of D, B and BB can be fast replaced on one machine to achieve economical and practical purpose;
6. Punch turret can be removed easily and cleaned easily.
7. Tablets formed Twice by main pressing and pre-pressing.
8. Force-feeding device controls the flow of powder and ensures the accuracy of feeding.
9. Imported hydraulic pump unit sustains the main pressure and pre-pressure, pressing stably with low noise, and the hydraulic system will act as a buffer and protector while the pressure is over high.
Main Parameters:
| data / model | KU-30 | KU-37 |
KU-45 |
|
| No. of stations | 30 | 37 | 45 |
|
| Tooling type | D | B | BB |
|
| Output range (Tablets/h) |
39000~ 198000 |
48000~ 244000 |
59000~ 297000 |
|
| Rotation speed range (rpm) | 22~110rpm |
22~110rpm |
22~110rpm |
|
| Main pressure | 100KN | 100KN | 100KN |
|
| Pre-pressure | 20KN | 20KN | 20KN |
|
| Max tablet diameter | Φ 25mm | Φ 16mm | Φ 13mm |
|
| Max length of irregular tablet | 25mm | 19mm | 16mm |
|
| Diameter of die | Φ 38.1mm | Φ 30.16mm | Φ 24mm |
|
| Max. filling depth | 20mm | 20mm | 16mm |
|
| Main motor power | 11Kw | 11Kw | 11Kw |
|
| Diameter of punch | 25.35mm | 19mm | 19mm |
|
| Pitch circle diameter | 420mm | 420mm | 420mm |
|
| Weight | 2800Kg | 2800Kg | 2800Kg |
|
| Dimension of machine L*W*H(mm) | 1175× 950× 1920 | 1175× 950× 1920 | 1175× 950× 1920 |
