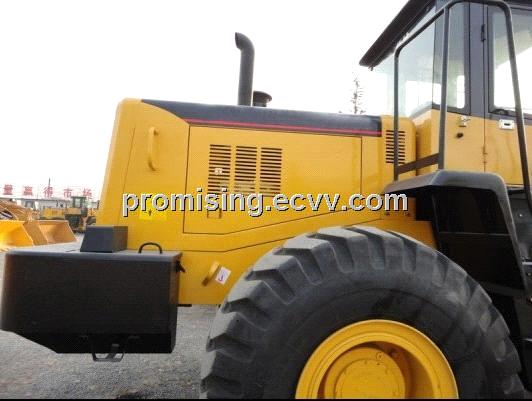

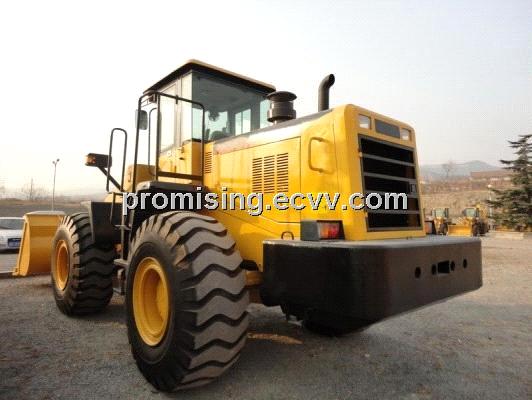

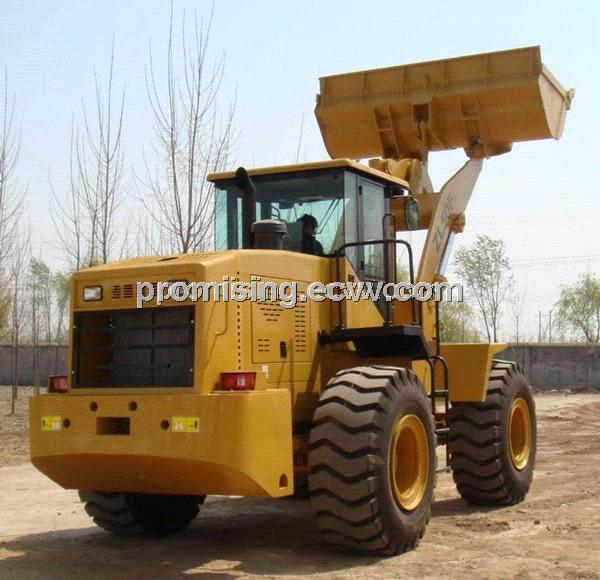

Heavy Construction Earthmoving Machine ZL50F
| FOB Price: | 49,000.00 - 56,000.00 USD/Set |
|---|---|
| Supply Ability: | 200 Set/Sets per Month |
| Shipping: | 30 days upon payment |
| Payment Terms: | L/C, T/T |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Shandong in China |
| Packaging Details: | Nude |
Quick Details
- Condition: New
- Brand Name: Dragon Loader
- Model Number: ZL50F
- Type: Front Loader
- Dimension(Long * Breadth * High): 7920*3050*3400 mm
- Rated Load: 5000KG
- Certification: CE
- Warranty: 12 months
- After-sales Service Provided: Overseas service center available
- Total Weight: 17100 kg
- Rated Bucket Capacity: 3.0 m3
- Overall Dimension (L x W x H): 7920*3050*3400 mm
- Rated Power: 220 HP
- Max. Speed: 38 km/h
Specifications
|
Heavy Construction Earthmoving Machine
Model: ZL50F |
||
|
|
Item
|
Parameters
|
|
Performance
|
1. Rated Load
|
5000 kg
|
|
2. Total Weight
|
17100 kg
|
|
|
3. Rated Bucket Capacity
|
3.0 m3
|
|
|
4. Max. Tractive Force
|
152 KN
|
|
|
5. Max. Breakout Force
|
≥ 170 KN
|
|
|
6. Max. Gradeability
|
30°
|
|
|
7. Max. Dumping Height
|
3150 mm
|
|
|
8. Max. Dumping Reach
|
1250 mm
|
|
|
9. Raising Time
|
5.95 ± 0.2 s
|
|
|
10. Total Cycle Time
|
10.95 ± 0.5 s
|
|
|
11. Overall Dimension (L x W x H)
|
7920*3050*3400 mm
|
|
|
12. Min. Turning Radius
|
6640 mm
|
|
|
Engine
|
13. Model
|
WEICHAI STEYR WD615G. 220
|
|
14. Type
|
In-line, Water Cooling, Dry Cylinder Fuel Injection Diesel Engine
|
|
|
15. No. Of Cylinder-Bore/Stroke
|
6-126× 130 mm
|
|
|
16. Rated Power
|
162 kW – 2400 rpm (220 HP)
|
|
|
17. Max. Torque
|
860 N. M
|
|
|
18. Min. Fuel-consume Ratio
|
≤ 215 g/kW· h
|
|
|
Transmission System
|
19. Hydraulic Torque Converter
|
YJ375 Hydraulic Torque Converter
|
|
20. Gearbox Mode
|
Countershaft Spur Gear Constant-Mesh Power Shift
|
|
|
21. Gear Shift
|
4 Forward Shift, 4 Reverse Shift
|
|
|
22. Max. Speed
|
38 km/h
|
|
|
Drive Axel
|
23. Main Reducing Mode
|
Bevel Gear Grade 1 Reduction
|
|
24. Hub Reduction Mode
|
Planetary Reduction Grade 1
|
|
|
25. Wheel Tread
|
2250 mm
|
|
|
26. Wheel Base
|
3200 mm
|
|
|
27. Min. Ground Clearance
|
450 mm
|
|
|
Hydraulic System
|
28. System Working Pressure
|
18 MPa
|
|
29. Fuel Tank Capacity
|
300 L
|
|
|
30. Bucket Automatic Leveler
|
Yes
|
|
|
Brake system
|
31. Service Brake
|
Foot Pedal Vacuum Booster, Air Over Hydraulic Caliper Disc Brake on 4 Wheels
|
|
32. Parking Brake
|
Hand Lever Flexible Shaft Controlled Disc Brake
|
|
|
Tyre
|
33. Type Specification
|
23.5-25-20PR
|
|
34. Front Tyre Pressure
|
0.4 Mpa
|
|
|
35. Rear Tyre Pressure
|
0.35 Mpa
|
|
