bopp film for capacitors use

FOB Price:	5.00 - 20.00 USD/Kilogram
Supply Ability:	600 Ton per Month
Shipping:	within 15days,FOB ;CIF;DDU
Payment Terms:	L/C, T/T, Western Union

In Stock

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Anhui in China
Packaging Details:	standard export packaging /pallets;One roll of 65 kg in one box and 8 boxes in one pallet. Or 8 roll

Specifications

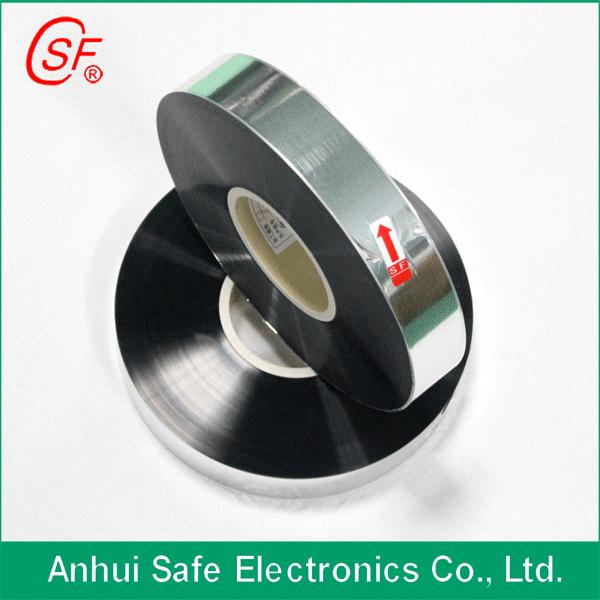

BOPP Capacitor Film

Metallized Polypropylene Film for Capacitor

The film is manufactured with high purity, high isotacticity polypropylene.

It has high BDV, excellent mechanical strength.

Features(capacitor bopp film):

Aluminum metalized polypropylene film.
Aluminum-Zinc alloy metalized polypropylene film.
Aluminum-Zinc alloy metalized polypropylene film with heavy edge.

Aluminum metalized polyester film.
Aluminum-Zinc alloy metalized polyester film.
Aluminum-Zinc alloy metalized polyester film with heavy edge.

Material: Plastic
Width: Film Slit Width ±0.2mm
Inner Diameter: 75mm +1.0mm/ -0.5mm

For slit widths 4.0mm up: 155 +6/-15mm
For slit widths 10.0mm up: 180 +8/-18mm
For slit widths 25.0mm up: 240 +10/-20mm

Film is wound on solid cores, with the metalized layer inside.
Rolls are wound up to the specific outer diameter.
The loose end of film is held in place by a closing sticker.
Rolls are always packed in pairs.
There is a plastic foam between the rolls to protect the electrode side.

Applications(capacitor film):

The film is specially used for capacitors;power electronics capacitors;film capacitors;

DC capacitors;AC capacitors.
