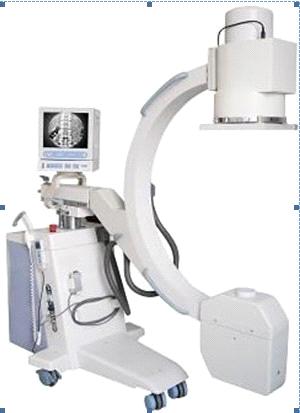

AR-M20E High frequency Mobile Surgical X ray System

Inquiry Now

Specifications

I Usage:
Orthopaedics: osteopathy, diaplasis, nailing
Surgery: removing foreign body, cardiac catheter, implanting pace maker, interventional therapy, partial radiography, local photography, and other work.
II Features
1. New integrated design, compact appearance, convenient operation.;
2. Unique hand-held remote controller, more convenient operation
3. Graphical colorfully LCD touch screen console interface, convenient operation, fashionable design
4. High-quality combined HF-HV X-ray generator, greatly reducing the X-ray irradiation.
5. Toshiba image intensifier is employed, stable and reliable in quality, high-definition image and display system
6. With the perspective KV, MA automatic tracking feature, the image brightness and definition are automatically set at optimal function.
7. Medical high-resolution progressive output TV system, eight image storage, clearer image and convenient operation. III Configuration
1, New (with electric auxiliary support arm) C-arm main rack　　　　one set
2, High-frequency high-voltage X-ray generator and high-frequency inverter power supply(5.0KW, 40KHZ, 120KV)　　　　　　　　　　　　　　one set
3, Toshiba 9-inch image intensifier　　　　　　　　　　　　　　 one set
4, 1 million pixel ultra-low-light digital cameras　　　　　　　　　　one set
5, high- definition progressive output CCU main-control system　　　one set
6, High-thickness grids　　　　　　　　　　　　　　　　　　　one set
7, Electric adjustable collimator　　　　　　　　　　　　　　　　one set
8, 14-inch high- definition medical monitor　　　　　　　　　　　 one set
9, Unique hand-held remote controller　　　　　　　　　　　　　one set

Category	Project	Content
Electrical Performance	Photography Capacity	5.0KW
	Fluoroscopy Capacity	Tube current:8mA? Tube Voltage:120KV
	Automatic Fluoroscopy	Tube Voltage:40kV～120kV automatical adjustment Tube Current: 0.3mA～4mA automatical adjustment
	Manual Fluoroscopy	Tube Voltage:40kV～120kV Continuous Tube Current: 0.3mA～4mA Continuous
	Pulse Fluoroscopy	Tube Voltage:40kV～120kV Continuous Tube Current: 4.1mA～8mA Continuous
	Photography Tube Voltage and mAs	40 kV~120 kV　20-100mA　1-180mAs
	film holder Size	200mm×250mm(8″×10″)or 250mm×300mm(10″×12″)
X-ray Tube	X-ray Tube Special for High Frequency	Fixed anode Dual-focus, small focus: 0.3, large focus:1.5 High Frequency Inverter: 40KHz thermal capacity 35KJ (47KHU) Tube thermal capacity 650KJ(867KHU)
Video System	Image Intensifier	TOSHIBA (9″) Image Intensifier
	CCD Video camera	Ultra low-light CCD camera
	Monitor	Horizontal center resolution 1000/L, edge 800/L Visual bandwidth12.5MHz 50bit Image 75 f/s
	CCU main control	High Definition progressive output mode, 8 level Noise Reduction,8 image storage, Vertical Image, Horizontal image flip, positive or negative image
Structure	Directive wheel and major wheel	Directive wheel 360° rotation, freely change the moving direction of the unit, major wheel ±90° rotation
Structure	C-arm	Electrical Ascending & Descend ≥400mm Monitor rotation± 135° Forward and Backward Movement: 200mm Rotation around Horizontal Axis: ±180° Rotation around Vertical Axis : ±15° Focus screen distance:960mm C-arm opening: 760mm C-arm arc depth: 640mm? Slip on orbit: 120°(+90°～ -30°)
