Multi-functional Laminating machine(SL-FMF90/1000B)

FOB Price:	20,000.00 - 60,000.00 USD/Set
Supply Ability:	500 Set/Sets per Month
Shipping:	by ocean
Payment Terms:	L/C, T/T, Western Union

In Stock

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Zhejiang in China
Packaging Details:	suitable to export

Specifications

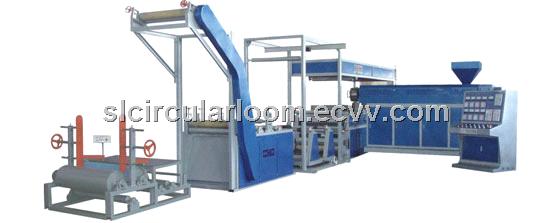

Multi-functional Laminating machine

Performance and Characteristics:

Making use of the good adhesive property of polypropylene & polyethylene at melting status, the machine adheres and laminates paper or color-printed OPP & CPP film to woven bag under pressure, and through cut-off and sewing to make paper & plastic laminated or color-printed packaging woven bags. The laminating with melted polypropylene & polyethylene film on the woven bag make laminating woven bag. laminating on the film and paper directly, or laminating color-printed OPP & BOPP film on the surface of them make the color-printed packaging bags of instant noodles, melon seeds and foods.
　　The extruder with helical gear reducer adopts automatic temperature-control system to adjust melting temperature, the screw and cylinder are made of 38CrMoAlA alloy steel and done treatment of nitrogenation. The double-die can realize single or double-face coating. width of coating &laminating can be regulated, and stepless speed regulation is to control coating thickness and laminating speed. The photoelectric meter of edge correcting assures the accuracy of coating. automatic edge cutting.counting,edge-blowing,perforating,edge-folding,cutting-off and winding devices are applied

Main technical parameters:

Type\Item	SL-FMF90/1000B
Diameter of extruder screw	90	Gross power (Kw)	58	Max. coating width(mm)	750
L/D ratio of screw	26:1	extruder motor power (kw)	15	Coating speed(m/min)	30-100
Number of die	2	extruder Heating power (kw)	32	Installing Dimensions(mm) L×W×H	13800x6000x2500
Width of die	1000	driving motor power	5.5	weight (approx)(kg)	6000
