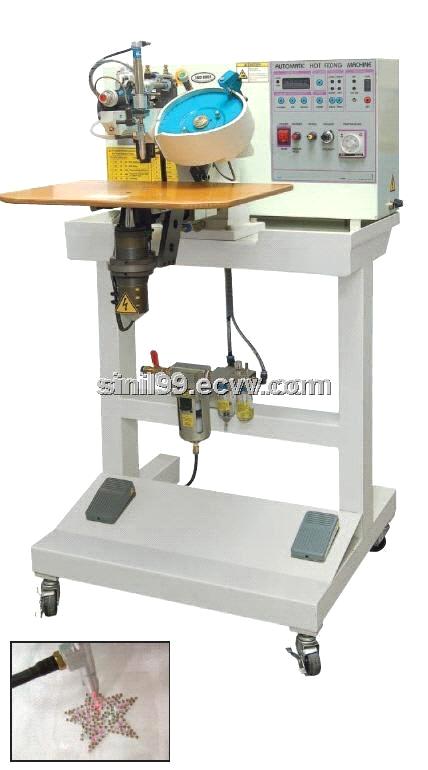

AM-1200 , Hot Fix Setting Machine by Ultrasonic & Electric system

Specifications

AM-1200  / Hot Fix Setting Machine by Ultrasonic & Electric system
Purely home-grown components.

We gain CE Mark and ISO 9001:2000 Certificate and QC 9000.
Machine catalogue, demo video : collect.

Warranty : one year.
Delivery : 5 days on receipt of TT.
Payment : TT in advance.

Export Standard Packing : vacuum packing, pallet.
Shipping terms : Ex Works.

We carry out technical innovation and factory automation and office automation.
We keep zero defects and product concept.

A. Features

-  Working Board Automatic Sliding System only by one touch button.
-  "Auto" , "Press" . " Manual"  Mode selectable " RESET" function for returning to initial setting parameters.
-  Any kinds of rhinestones, rhinestuds, nail heads to be adopted onto every kinds of thin & thick fabrics by using Ultrasonic & Electric Heating system.

-  Easy and simple operation for novices.
-  Rotating plate (Tray) UP - DOWN MOVE easily by turning the control knob for adjusting the gap between stone and plate(Patented).
-  Enhanced Air drying system and Auto drainage.

-  High reliability is guaranteed by the use of only high quality components.
-  Function to be upgraded simply by software.
-  Basic supply of both big and small working board for user's conveniences.

B. Specification

Power : AC 220 V, 1 PH , 50/60 Hz.
Working board : 300 x 400mm(big) , 300 x 130 mm(small).
Dimension : 660 x 560 x 1,300 mm.

Air : 5 ~6 kg/cm2.
Weight : 62 kgs(Net) , 70 kgs(Gross).
Working speed : 20 ~ 120 pcs/min.
Available rhinestone size : SS 6(2mm) ~ SS 30 (6mm).

C. Application

Women's costumes, children's wear, t-shirts, jeans, underwear, label embroidery, bags, belts, caps, accessories, etc.

D. Gross weight : 70 Kg.
   Box spec. : 840 x 610 x 1,310 mm.
