12V-24V RGB LED Wifi Controller
| FOB Price: | 50.00 USD/Piece |
|---|---|
| Supply Ability: | 1,000 Piece/Pieces per Month |
| Shipping: | By sea or by air |
| Payment Terms: | T/T, Western Union |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Guangdong in China |
| Packaging Details: | To be packed in carton |
Quick Details
- Brand Name: emit
- Model Number: EM-CONTROLLER
- Type: Remote Control
- Max. Load Power: 244W
- Voltage: 12/24v
Specifications
Product Description

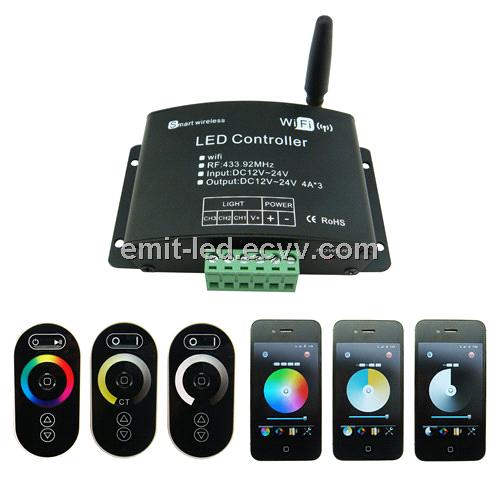

WIFI-V01 controller appeared with the installation of controlling software on mobile devices with Android or IOS system, such as android phone, iPhone, tablet PCs, they can remote control LED lighting products through WiFi, which makes LED control more intelligent and humanization. One WIFI-V01 controller can be used as dimmer, CT controller, and RGB controller, only need to select the right control interface in the software. In addition, this model has DIY function. Users can get any effect they want based on our controlling software. If you don't have any mobile devices with the controlling software at hand, you could also use our RF remote control to control it. This model designed for constant voltage led products, such as led strip, led modules. For controlling more led products, amplifier is available.
Technical parameters
1. Controller
|
Working temperature |
-20-60℃ |
Working voltage |
DC12~24V |
|
Power consumption |
<3W |
Connect method |
Common anode |
|
WIFI brightness level |
100 |
WIFI speed level |
100 |
|
Remote control brightness level |
32 |
Remote control speed level |
100 |
|
N.W. |
150g |
G.W. |
230g |
|
Case dimension |
L108*W63*H28mm |
Box dimension |
L109*W55*H56mm |
|
Output |
3 channels |
Output current |
≤4A(each channel) |
|
WIFI frequency |
2.4G |
RF remote control frequency |
433.92Mhz |
|
Output gray scale |
256 |
Memory function |
support |
|
Receiving sensitivity |
802.11b:DSSS(-5dBm) 802.11b:CCK(-10dBm) 802.11g:OFDM(-15dBm) |
||
|
Output power |
12V: ≤144W 24V: ≤288W |
||
2. RF remote control
|
Working temperature |
-20-60℃ |
Power supply |
AAA*3 |
|
Standby current |
7uA |
Working voltage |
1.5V*3 |
|
Working current |
10mA |
Remote control distance |
Up to 30m |
|
RF frequency |
433.92Mhz |
Power consumption |
0.04mW |
3. Software
|
Name |
FreeColor V1.0 |
Platform |
Android 2.1 or above, IOS4.3 or above, with the wifi function |
|
Size |
Android(661KB) , IOS(Being certified in) |
||
|
Category |
Communication |
Language |
English |
Features
1. Support both wifi control of Apple products (iPod, iPad, iPhone), Android mobile devices like Samsung, HTC, and RF wireless remote control.
2. With the 3-in-1(Dimming, CT, RGB) apple/android software. One device suit to different lighting application scene.
3. Memory function to save scenes anytime anywhere for next play.
4. WIFI-V01 is designed for constant voltage led products, working voltage auto fit to DC12-24V.
5. Wifi control based on 2.4GHZ frequency, RF remote control based on 433.92MHz.
