Xinxing Doing Renewable Energy Euipment Co., Ltd.
China Manufacturer with main products: Waste Tyre Pyrolysis Machine, Waste Plastic Pyrolysis Machine, Waste Tyre Recycling Machine, Waste Plastic Recycling Machine, Waste to Oil... |

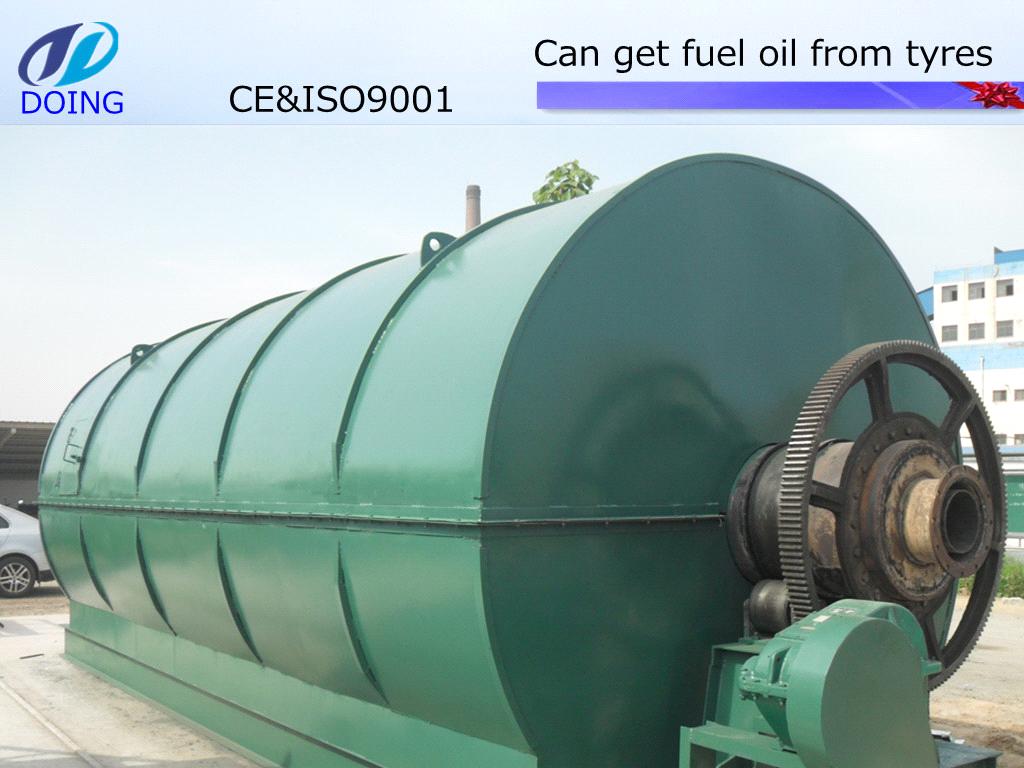

oil purifier machine oil distillation machine
| FOB Price: | 50,000.00 - 70,000.00 USD/Set |
|---|---|
| Supply Ability: | 20 Set/Sets per Month |
| Shipping: | 25 days after deposit Qingdao Port |
| Payment Terms: | L/C, T/T |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Henan in China |
| Packaging Details: | 40FR&40HQ |
Specifications
How to operate this machine?
1) feed the raw material into furnace automatically or manually, then seal the feed inlet system
2) heat the reactor by burning the fuel material(coal,or wood,or natural gas ,oil ) in the combustion system
the reactor will slowly become heat ,when the temperature reach around 250 degree celsius, the oil gas will be formed
3) After processed by our technology, the oil gas will go to cooling system for cold liquid oil
the gas which can not become liquid under normal pressure , will be designed to go back to combustion system through safety device instead of the fuel material to burn the reactor, which is environmental friendly and can save you much energy
4)After finished oil produce ,the temperature of reactor will be down,while,carbon black can be discharged automatically
5) when the temperature fall down to 100 degree celsius,worker could opened the door of reactor to discharge of steel wire
6) Then can start to another batch working
Advantages of waste tyre and plastic recycling machine
1. High oil output rate 45%--55%.
2. Rapid condensers and large cooling area89 square meters,assure u get much more and higher quality oil.
3. Double dust removing device,more environmental protection.
4. Double tail gas recovery,saving energy.
5. Q245R boiler steel plate, high temperature resistance, thickness reaches
14mm--18mm,guarantee 6--8 years service lives.
6. Auto feeder and carbon black elevator,high automation,saving time and labors.
Technical Detail
This is a batch process system.
The waste tyres are fed into the reactor vessel and heated under controlled conditions of temperature and pressure.
The process will bring about molecular restructuring of the rubber under the pyrolysis process as the result; furnace oil in gaseous form is produced along with other gases.
These vaporized gases are passed through heat exchanges, where in the furnace oil is condensed into liquid form.
During the process, carbon black and steel are also generated.
The heat exchanger uses coolant water, as a condensing medium and this water is re-circulated through process.
After-sales service
Installation and Training: We will send one technicians for each set of machine to your company within 10 days when the machine arrives to your factory. The technicians will be charge of guiding your installation, testing the machine and training your workers. The installation period shall be 30 days. You shall pay salary for the technician with 50USD per day and also the round-trip ticket and accommodation.
As we all know, this is a special field, high profit and high risk. So, when you choose a supplier, security will be the most important thing.Except security, technology, quality and oil refining experience are also very important. Since this is a new field, so, no exact rules. In this way, experiences and technology will be the key point. As for the quality, it should be worth of your cost.
