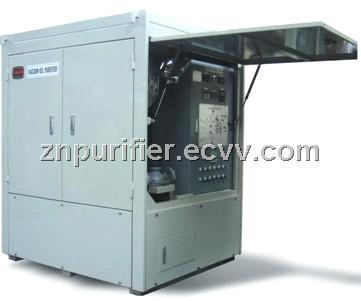

High Vacuum Oil Purifier , trasnformer oil filtration

FOB Price:	5,000.00 - 30,000.00 USD/Set

In Stock

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe

Specifications

High Vacuum Oil Purifier

High vacuum oil purifiers are designed for treating electrical insulating oil in the oil-filled electrical equipments. Through the dehydrator, degasification, filtration processes, the dissolved gases and moisture, solid particulate, contamination can be completely removed.

Our quality vacuum oil purifier is widely used in factory workshops,power transmission and generation station.

Utilizing our high vacuum oil purifier, the quality of insulating oil can be upgraded and the deteriorated oil can be reclaimed that could extent the life of insulating oil and ensure safety operation of oil-filled electrical equipment treatment.

Applicable Transformer: 10kV ~ 1000kV
Capacity: 200 to 30,000 Liters/Hour, or more

Features:

Fully automatic 24 hour continuous operation, enables unattended supervision

High vacuum: limiting vacuum less than 5pa, working vacuum less than 35pa

High absorption speed, absorption speed power more than 333L/Sr.

Oill foam will be eliminated quickly in the process of treatment

Duplex 3D stereo-evaporation technology, this Oil spraying type with large vaporization surface in vacuum chamber

Utilization of low load heater to avoid oil deterioration in the process

All necessary control switch, light indicator and meter are equipped on the control panel which provides easy control for operation and supervision

dewaters, degases and removes impurities more quickly, more completely and make the oils limiting voltage-withstand value much higher.

This machine also can remove free, soluble water, carbon, free and dissolved gases and particulate matters from insulating oil effectively and rapidly

Type selection:

A: Single Chamber, Single-stage High Vacuum System
B: Two-chamber, Double-stage High Vacuum System

Optional:

A : Without Enclosure, open and Stationary type
B : With Enclosure, Cubicle and Stationary type
C : With Skid base type
D : Mounted on casters
E : Mounted on Single-axle Trailers (Pneumatic tyre, Speed selectable)
F :  Mounted on Double-axle Trailers (Pneumatic tyre, Speed selectable)

You May also be interested in:

A:   Transformer Oil Tester, Testing the insulating oil's dielectric strenght
B:   Vacuum Pumping Set,  pumping the transformer
C:   Moisture Meter, measuring the water content in the transformer oil
D:   Flow meter, measuring the flow oil quanity through the machine

  Contact us for more.....
