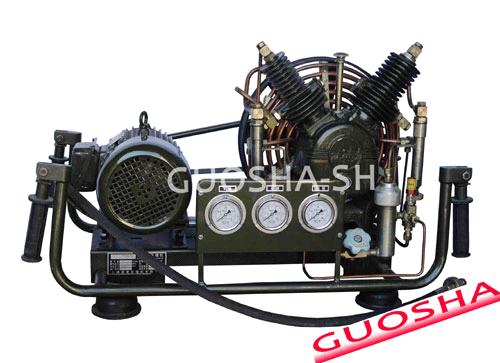

Breathing high pressure air compressor( 300 bar 30 mpa 4500 psi 100L/min 440V 60HZ engine)
| FOB Price: | 15,000.00 - 19,000.00 RMB/Set |
|---|
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|
Specifications
Fire breathing air compressor manufacturers, fire breathing air compressor manufacturing enterprise, fire and high pressure air compressor manufacturing co., LTD.
Quality commitment: one year warranty period, 2 it is 24 hours fast repair, three is a lifetime of spare parts service. Domestic technology, the international quality, life-long service let you trouble back at home.
GS - 206 type fire breathing air compressor is according to the field of fire breathing of design and manufacture of a small, portable and high pressure gas supply equipment, has small volume, light weight, compact structure, easy to carry, domestic technology, completely broke the foreign products monopoly situation, ensure a lifetime supply of parts. GS - 206 type fire breathing air compressor working principle is the natural state of air through the level 4 level compression, compression of 20 mpa finally to 25 mpa pressure (mpa) per square centimetre, (note: 1 mpa = 10 kg, which is 1 million mpa) = 10 kilograms kg force, in compression at the same time, the product filter system will be filter and eliminate moisture and impurities in the air, and to provide the air pure and safe, reached the standard of human breath of life. GS - 206 type fire breathing air compressor site for air breathing apparatus cylinders is inflatable, can also be equipped with fire fighting, rescue and rescue vehicles, for the majority of the fire commanders and rescue personnel in the smoke, gas, steam or oxygen, etc all kinds of circumstances, to ensure timely provide pure quality and safe and reliable high-pressure compressed air to breathe. GS - 206 type fire breathing air compressor not only applies to breathe fire field, can also be used in naval ships and ocean engineering, diving breathing filling gas cylinders; Aircraft and armored vehicles, tanks, artillery and other military machinery of high pressure gas launch, lifting; Cylinders, valves, pipes, pressure vessels, such as high-pressure gas tightness test and pressure test, and CNG dual fuel automobile piping tightness test; High-pressure air and paintball, shooting weapons, for any industry to provide quality security needs high purity gas source of compressed air.
Detailed parameters
1, model number: GS - 206 - A pressure force: 25 mpa emissions: 100 L/min drive: 380 v power: 3 kw noise: < 78 db (A) weight: 68 kg size: 89 * 46 * 60 cm
2, model no. : GS - 206 - b pressure force: 20 mpa emissions: 100 L/min drive: 220 v power: 2.8 kw noise: < 78 db (A) weight: 69 kg size: 89 * 46 * 60 cm
No. 3, type: GS - 206 - c pressure force: 25 mpa emissions: 100 L/min drive: import gasoline engine power: 5.5 HP noise: < 79 db (A) weight: 71 kg (size: 89 * 46 * 60 cm
Detailed parameters
1, model number: GS - 206 - A pressure force: 25 mpa emissions: 100 L/min drive: 380 v power: 3 kw noise: < 78 db (A) weight: 68 kg size: 89 * 46 * 60 cm
2, model no. : GS - 206 - b pressure force: 20 mpa emissions: 100 L/min drive: 220 v power: 2.8 kw noise: < 78 db (A) weight: 69 kg size: 89 * 46 * 60 cm
No. 3, type: GS - 206 - c pressure force: 25 mpa emissions: 100 L/min drive: import gasoline engine power: 5.5 HP noise: < 79 db (A) weight: 71 kg (size: 89 * 46 * 60 cm
Product features
Three-stage compression, air-cooled, piston air compressor, cooling fan with high strength nylon, high pressure relief valve pressure regulation of freedom, use absolute security, high and new technology to deal with the wear resistance of the CMC alloy cylinder, piston, crankshaft, etc parts meet the requirements of long running load, automatic sewage collector and automatic stop device assembly, drive mode, 440 v, 380 v, 220 v motor (frequency is 50 hz or 60 hz) and the gasoline engine for users the freedom to choose, design a set of charging valve, fitting and inflatable tube (a set of charging valve can fill a cylinder; at the same time two sets of charging valve can charge two cylinders) at the same time, have time to allow the recording system, aeration time free to master, is equipped with shockproof pressure gauge, for activated carbon, molecular sieve purification system guarantee the pure quality and safety.
Other parameters of high pressure air compressor
1, model number: GSX100A pressure force: 30 mpa displacement: 100 l/min drive: 380 v rated power: 2.2 KW noise: < 72 db (A) weight: 40 kg volume: 60 * 34 * 35 cm
2. The type, number: GSX100B pressure force: 30 mpa emissions: 100 l/min drive: 220 v power: 2.2 kw noise: < 72 db (A) weight: 41 kg volume: 60 * 34 * 35 cm
3. The type, number: GSX100C pressure force: 20 mpa emissions: 100 l/min drive: import gasoline engine (diesel) power: 5.5 HP noise: < 72 db (A) weight: 38 kg volume: 60 * 34 * 35 cm
4, model no. : GSW200A style: 3 piston compressor pressure force: 30 mpa displacement: 200 l/min drive: 380 v, 50 hz power rating: 4 kw noise: < 75 db (A) weight: 150 kg, volume 52 x 90 x 60 cm
5, model no. : GSW200B style: 3 piston compressor pressure force: 20 mpa displacement: 200 l/min drive: 380 v, 50 hz power rating: 4 kw noise: < 75 db (A) weight: 154 kg, volume 52 x 90 x 60 cm
No. 6, type: GSW265A type: 3 piston compressor pressure force: 30 mpa displacement: 265 l/min drive: 380 v, 50 hz, rated power: 5.5 KW noise: < 74 db (A) weight: 150 kg size: 94 * 70 cm, 54
Type 7, number: GSW265B style: 3 piston compressor pressure force: 30 mpa displacement: 265 l/min drive: 380 v, 50 hz, rated power: 5.5 KW noise: < 73 db (A) weight: 160 kg size: 94 * 70 cm, 54 /
8. Model no. : GSW300 style: 3 piston compressor pressure force: 30 mpa displacement: 300 l/min drive: 380 v, 50 hz, rated power: 7.5 KW noise: < 73 db (A) weight: 170 kg size: 96 * 56 * 70 cm /
: GSW400 9. Style: 3 piston compressor pressure force: 30 mpa displacement: 400 l/min drive: 380 v, 50 hz, rated power: 2 x 4 kw noise: < 73 db (A) weight: 280 kg size: 128 * 110 cm, 54
Ten.. Models: GSW500 style: 3 piston compressor pressure force: 30 mpa displacement: 500 l/min drive: 380 v, 50 hz, rated power: 2 x 5.5 KW noise: < 73 db (A) weight: 300 kg size: 130 * 114 cm, 54
Added: we can according to customer needs production capacity per minute 1 -- 10 cubic, 25 mpa pressure under all kinds of air compressor, the above is only part of the product. If the customer need to 10 mpa under large displacement medium pressure air compressor high pressure or low emissions small high pressure air compressor, we have cash supply, customers can choose according to own actual need flexible customization.
Special instructions:
Shanghai guosha compressor co., LTD is a high pressure air compressor manufacturing enterprise, is also a high pressure air compressor production base, the main products are fire, scuba diving, mine, chemical industry, etc for filling bottles with high-pressure air compressor; Cylinders, valves, pipe fittings, precision instruments, high pressure boiler, all kinds of pressure vessel and pipeline of CNG automobile air tightness test, tightness test, pressure test with high pressure air compressor; Shooting, paintball sport, armored vehicles, tanks, artillery and other military equipment and high pressure air compressor. Mansion of the Shanghai air compressor co., LTD is a professional engaged in production and sales, high pressure air compressor in r&d, manufacturing, marketing and after sales, maintenance as one of the modern technology enterprises. Displacement of 100 l/min to 5000 l/min, the working pressure of up to 35 mpa, models are divided into a portable, stretcher, mobile, stationary, etc. Products are widely used in fire protection, military, sports, national defense, petroleum and petrochemical, medicine, shipbuilding, Marine engineering, air tightness test, electricity, gas, precision instruments and other fields. Any need to use safe and reliable for the global air industry provide clean, safe, high quality compressed air.
