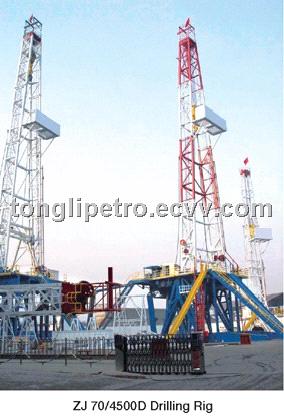

MAST for all kinds of drilling rig

Supply Ability:	100,000 Set/Sets per Year
Shipping:	PORT qingdao ,tianjin
Payment Terms:	L/C, T/T, D/A, D/P

Inquiry Now

Related products from verified members

QMZS1.7/11 pneumatic hand-held drilling rig

Price:10.00-1,000.00 USD/Set

Min. Order:1 Set
Drilling Rig

Price:

Min. Order:
API Oil Exploration Drilling Rig

Price:1.00 USD/Set

Min. Order:1 Set

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Shandong in China
Packaging Details:	package for ship express,train express,airplain express

Specifications

Product Features:

Common Mast Model: A masts, K masts (open-front masts), derricks, masts and bootstrap masts.
A-mast: its leg section is rectangle or triangle, with preferably features of high loading capacity and perfect local stability. Each section of A-mast is connected by pins. The mast is assembled on the ground and raised or lowered integrally by use of power of the drawworks.
K-mast its leg section is "K" open face type. The beam legs adopt laminated truss structure. Each section of the mast is connected by pins. K masts can be assembled on the ground and raised or lowered integrally by use of power of the drawworks.
Telescoping mast: The main body is "K" type welded with girder structure, consisting of two or three sections, which can be rigged up and telescoped by main drawworks or hydraulic power.
The derricks: adopts tower type truss structure with bolts connection featuring better integral stability and high loading capacity. The offshore derricks were divided into 2 types: the static derrick installed on the fixed platform and the dynamic derrick installed on drilling ship.
The masts: its main body belongs to welded truss structure, incline to the wellhead during the drilling operation and keep their stability and load capacity by guy rope.
The bootstrap mast: the main body belongs to “K” section, the base section as the guide section and the support section to raise and assemble the other sections consequently by the power of drawworks or the hydraulic power, which is able to save the field and reduce aloft working.

Product types and specifications:

Model		JJ675/48-K	JJ900/52-K	JJ225/43-Z	TJ2-41	JJ90/39-W	JJ120/31-W	JJ150/31-W	JJ180/38-W
Max static hook load,kN		6750	9000	2250	2200	900	1200	1500	1800
Clear height,m		48	52	43	41	39	31	31	38
Bottom span,m		10	10	8	8.02X8.02	6	2.32	2.52	1.86
Height of monkey board,m		24.5,25.5 26.5	24.5,25.5 26.5	24.5,25.5 26.5	22.543	24.5,25.5 26.5	16.1,17.1 18.1	16.5,17.5	16.2,17.2 18.2
Setback capacity(4.5″),m		9000(5″)	12000(5″)	4000	4000	1960	2000	3000	3000
Wind survival	standby condition(no setback, no load),m/s	36	36	36	36	36	36	36	31
	survival condition(no stand no load),m/s	47.8	47.8	47.8	47.8	47.8	47.8	47.8	47.8
	Raising & lowering Mast,m/s	≤8.3	≤8.3	≤8.3		≤8.3	≤8.3	≤8.3	≤8.3
Weight,kg		162100	205800	57000	31200	24000	11300	14400	19300
Note:K- K mast ,Z- Bootstrap,W- Mast
