Phangea Precision Instrument Ltd.
China Manufacturer with main products: Paperless Reorder, Temperature Recorder, Temperature Controller, Pressure Transmitter, Vibration Transmitter, Process Indicator, Temperature... |

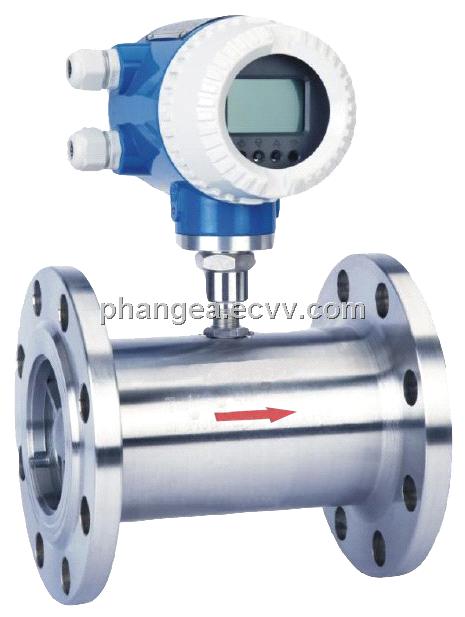

Liquid Turbine Flow Meter-PTF1200
| FOB Price: | 1.00 - 1,000.00 USD/Set |
|---|---|
| Shipping: | FOB Xiamen |
| Payment Terms: | T/T, Western Union |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Fujian in China |
Specifications
PTF1200 series is smart liquid turbine flow meter, designed as high quality and stability, high sensitive, easy installation, user friendly, widely used for flow measurement of pure water, alcohol, petrol, diesel fuel, kerosene, hydraulic liquid, liquefied petroleum gas and other pure liquid without sour corrosion in tube.
Feature
High accuracy: ±1.0%R, ±0.5%R, ±0.2%R, optional
Good repeatability: 0.05% to 0.2% in short repeatability
Various output signal: pulse, 4-20mA
RS485, Hart protocol, optional
High frequency signal: 3-4Khz, strong signal resolution
Wide range, can up to 1:20 for wide caliber, 1:10 for minor
Compact and light structure, easy installation and maintenance, big flow capacity
Pressure rate, up to 42Mpa, easy for high pressure rate measurement , hole not required to be cut on flow meter
Process fluid:
Liquid: pure, without sour corrosion
Pure water, alcohol, petrol
Diesel fuel, kerosene,
Hydraulic liquid, LPG
Requirement:
Pure medium, filter required
Liquid viscosity ＜5X10-6M2/S
Not for:
Gas, steam, impure liquid
Liquid viscosity : ＞5X10-6M2/S
Application:
liquid flow measure in pipe
Standard :
JB/T9246-1999
Measure range:
0.04 to 800 m3/h
Accuracy:
±1.0%R (standard)
±0.5%R(optional)
±0.2%R(optional)
Repeatability:
0.05% to 0.2%
Range ratio:
1:10, 1:15, 1:20
Output signal:
Pulse, 4-20mA
Communication:
RS485, HART protocol
Process temperature:
-20 to 120 ℃
Local LCD indicator:
4 digit, flow rate (m3/h)
8 digit, flow totalize (m3)
Process connection:
Thread or flange
DN for Thread:
DN4, 6, 10, 15, 20, 25
DN32, 40, 50, 65, 80
DN for flange:
DN4 to DN200
Pressure rate:
1.6, 2.5,4.0,6.3, 12,16,25Mpa
Sensor material:
304SS, 316LSS
Signal output entry
Standard:
3-pin cable
Hirschman plug
Explosion-proof:
Male M20X1.5
Power supply
External power supply:
24VDC ±15%, ripple≤±5%
Built-in battery:
3.0V10AH Lithium battery
Normal work when 2.0-3.0 V
Low voltage display if ＜2.0V
Power consumption:
＜1W
Ambient temperature:
-20℃ to 60℃
Relative humidity:
5%-90%
Atm. Pressure:
86Kpa to 106Kpa
Protection Class:
IP65 (Standard)
Explosion class:
ExdIIBT6 or ExiaIICT4
If you are intersted in us, please inquiry us and kindly advise me contact infomation ,thus we can reply you asap,thank you!
