Phangea Precision Instrument Ltd.
China Manufacturer with main products: Paperless Reorder, Temperature Recorder, Temperature Controller, Pressure Transmitter, Vibration Transmitter, Process Indicator, Temperature... |

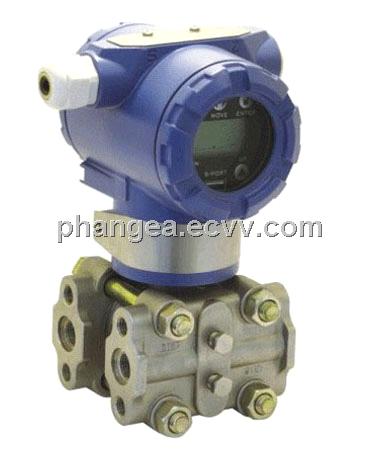

Smart Differential Pressure Transmitter-PDP3351
| Shipping: | FOB |
|---|---|
| Payment Terms: | T/T, Western Union |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Fujian in China |
Specifications
PDP3351 series is digital smart differential pressure transmitter, designed with modern advanced capacitance sensor technology and advanced 16bit SCM &sensor digit convert technology, designed for industrial pressure measurement including differential, absolute and gauge pressure measurement of gas, liquid, steam and flow, widely applied in petroleum, metallurgy, chemicals, power, light industry, mechanical and environmental protection fields.
Feature
Advanced performance , improved accuracy and stability
Excellent anti-interference ability and zero stability
Automatic zero tracking and temperature compensation
Accuracy: ±0.2% to±0.25% FS
5 yeas stability of 0.25%
Automatic zero calibration by local key button.
Parameters setting by local key button
Updating time of current time in 200ms
4-20mA output & digital RS485 Hart communication
Application
Hydraulic and pneumatic control system
Industrial process measurement and control
Compressor, refrigerator, air conditions
Pumps, air pump, thermoelectric units
Building automation, constant pressure water supply
Laboratory pressure calibration system
Process Fluid
Liquid, gas, steam
Application:
differential, absolute , gauge pressure
Measure range:
-100Pa to 40Mpa
Measure accuracy:
±0.2% to±0.25% FS
Linear accuracy:
0.075%±0.1%
Digital accuracy:
±0.05%
Stability:
5 years of 0.25%
Range ratio:
100:1
Turn on time:
2S with minimum damping
Damping:
0-32S
Response time:
200ms
Fill Fluid:
Silicon default, Fluorine oil option
Vibration effect:
±0.05% of URL per g to 200 in any axis
Output signal:
4-20mA &Hart communication
LCD display:
5 digital &0-100% bargarph
Keyboard:
5 keys for calibration and setting
Process connection:
1/4-18NPT
1/2-14NPT (with adapter)
Electrical connection:
1/2’’NPT
Material:
Flange/adaptor:
Stainless Steel 316L/Monel/ Hastelloy/Carton Steel
Drains/Vents:
Stainless Steel 316/ Monel/Hastelloy
Diagrams:
Stainless Steel 316L/ Monel/ Hastelloy C/ Tantalum
Wetted O-Ring:
Viton/ Buna-N
Bolts&Nuts:
Carton Steel/Stainless Steel316
Housing:
Low copper cast aluminum
alloy with Polyurethane paint
Mounting:
Bracket on 2’pipe, wall or dashboard
Power Supply:
12V to 45VDC, 24VDC default
Enclosure:
IP67 (Standard)
Intrinsically Safe EEx ia IIC T5
Explosion proof Ex D IIC T5
Process temperature:
-20℃ to 80℃
Ambient temperature:
-40℃ to 85℃
Humidity limits:
0-95%RH relative
Weight:
4.5kg
