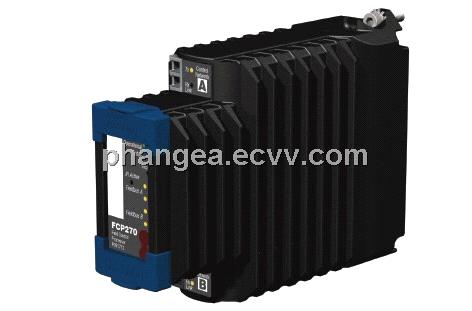

Foxboro Field Control Processor-FCP270

Shipping:	FOB
Payment Terms:	T/T, Western Union

Inquiry Now

Related products from verified members

Melt Pressure Transmitter

Price:

Min. Order:5 Pieces
Anticorrosion Differential Pressure Transducer ...

Price:100.00-130.00 USD/Piece

Min. Order:5 Pieces
Small Pressure Transmitter Sensor Transducer

Price:23.00 USD/Set

Min. Order:1 Set
Hart Protocol / Analog-Type Intelligent Differe...

Price:

Min. Order:1 Piece
Anticorrosion differential pressure transducer ...

Price:95.00-105.00 USD/Piece

Min. Order:5 Pieces
Yokogawa EJA110E Differential Pressure Transmit...

Price:500.00 USD/Set

Min. Order:1 Set
Pressure Transmitter

Price:

Min. Order:

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Fujian in China

Specifications

Product Description

Phangea is general agent of Foxboro in China, If any items you are intersted in, please feel free to contact us. Items: Foxboro Pressure Transmitter, DCS module: FBMS, FCM, FCP270, 144LD level transmitter, analyzer, E69F-TI2-S, 762CNA-AT, 762CNA -L0117AV, 873EC-CIPFGZ-5, 871EC-TF2-3V.

IDP10-T22A21F-M1L1 IDP10-A22A21F
IDP10-T22A21F-M2L1 IDP10-T22A21F-L1
IDP10-A22E21F-M1 IDP10-T22B21F-M2L1
IDP10-T22B21F-M1L1 IDP10-A22E21F
IDP10-T49B21E-L1 IDP10-T22B21F-L1
IDP10-A22B21F IDP10-TS1A01F-M1L1
IDP10-T22D21F-M1L1 IDP10-T20B01F-K1T
IDP10-A22B21F IDP10-T22E21F-M1L1
IDP10-TS1A01F-M1L1 IDP10-AF1C01F
IDP10-A22B21F-M1 IDP10-TS1B01F-M1L1
IDP10-TF1B01F-L1 IDP10-A22A21F-M1
IDP10-TS1B01F-M1L1 IDP10-TS1B01F-M1
IDP10-ALLA 01F -M1 IDP10-TS1A01F-M1L1
IDP10-TS1B01F-M1 IDP10-A22A01F-M1
IDP10-AF1B01F PSFPS-A2S01314C IDP10-T49B21E-M1
IDP10-TF1B01F-L1 PSFPS-A3S01314C IDP10-D22C1F-L1
IDP10-AS1B01F IDP10-TS1B01F-L1
IDP10-D22B21F-M1
IGP10-T22C1F-M1L1 IGP20-T22A21F-M1L1
IGP10-T22C1F-L1 IGP20-T22B21F-M1L1
IGP10-A22C1F IGP20-A22A21F-M1
IGP10-A22C1F-M1 IGP20-T22A21F
IGP10-A24G1F-G2 IGP20-A22B21F-M1
IGP10-AD1D1F-M1 IGP20-T22D21F
PSFAD-2A1SSS2SA01 IGP20-A20E21F-M1
IGP20-T20B01F-K1 IGP20-T22E21F-M1L1 75RTA-PDEFB

Module NO.		Function	Application Program		Software Function	PSS no.
FBM201		Channel Isolated, 8 Input 0-20 mA	Analog input		Conversion time, rate of change limits	PSS 21H-2Z1 B4
FBM202		Channel Isolated, 8 Input Thermocouple/mV	Analog input		Conversion time, rate of change limits	PSS 21H-2Z2 B4
FBM203		Channel Isolated, 8 Input RTD(Platinum, Nickel, Copper)	Analog input		Conversion time, rate of change limits	PSS 21H-2Z3 B4
FBM204		Channel Isolated, 4 Channel 0-20mA In + 4 Channel 0-20mA Out	Analog I/O		Conversion Time, Fail-Safe Configuration(Hold/Fallback on per channel basis)	PSS 21H-2Z4 B4
FBM205		Channel Isolated, 4 Channel Redundant 0-20mA In + 4 Channel Redundant 0-20mA Out	Analog I/O		Conversion Time, Fail-Safe Configuration(Hold/ Fallback on per channel basis)	PSS 21H 2Z5 B4
FBM207		Channel Isolated, 16 DIN Voltage Monitor	Discrete I/O		Input filter time	PSS 21H-2Z7 B4
FBM207b		Channel Isolated, 16 DIN 24VDC Contact Sense	Discrete I/O, or ladder logic		Input filter time	PSS 21H-2Z7 B4
FBM207c		Channel Isolated, 16 DIN 48 VDC Contact Sense	Discrete I/O, or ladder logic		Input filter time	PSS 21H-2Z7 B4
FBM213		Group Isolated, 8 Input RTD	Analog input		Conversion time, rate of change limits	PSS 21H-2Z13 B4
FBM214		8 Input Hart Communication, 4-20mA input signal	Analog input		Support for the HART commands necessary to interface the field device with the I/A series system database	PSS 21H-2Z12 B4
FBM216		Redundant Ready HART Inputs, 8 Channels
FBM217		Group Isolated, 32 Discrete Input	Discrete I/O, or ladder logic		Input Filter Time	PSS 21H-2Z17 B4
FBM219		Discrete I/O, 32 Channels, 24 DIN voltage monitor+8 DOUT pulse, group isolated	Discrete I/O, or ladder logic		Input filter time, Fail-Safe Configuration, Fail-Safe fallback, Sustained and Momentary output. If momentary output configurable is needed, pulse output interval can be also configurable.	PSS 21H-2Z19 B4
FBM211		Differential Isolated, 16 differential Input 0-20 mA	Analog input		Conversion time, rate of change limits	PSS 21H-2Z11 B4
FBM224		4 Modbus Communication Channels			Provides a interface between MODBUS salve devices and the Controller Process of I/A series system	PSS 21H-2Z24 B4
FBM231		Four Serial Ports, Redundant			Provides a serial interface between dual-ported field I/O devices and I/A series system	PSS 21H-2Z31 B4
FBM233		10/100 Mbps Ethernet, Redundant				PSS 21H-2Z33 B4
FBM237		Channel isolated, 8 channel 0-20mA output, redundant	Analog I/O		Output Fail-Safe Configuration(Hold/ Fallback on per channel basis)	PSS 21H-2Z37 B4
FBM241		Channel Isolated, 8 channel voltage monitor, 8 channel DOUT pulse, external power	Discrete I/O, or ladder logic		Input filter time, Fail-Safe Configuration, Fail-Safe fallback, Sustained and Momentary output. If momentary output configurable is needed, pulse output interval can be also configurable.	PSS 21H-2Z41 B4
FBM242		Channel Isolated, 16 External Source DO	Discrete I/O, or ladder logic		Fail-Safe Configuration	PSS 21H-2Z42 B4
24 Port		Fiber E' net Switch w/24 MT-RJ Ports & Uplink Ports			Rapid scaling Tee Protocol(RSTR), manages redundant paths, prevent loops, and provides high speed convergence time for a network	PSS 21H-7C3 B4

FCM100Et	Redundant Fieldbus Communication Module			Provides the communication interface between DIN rail Mounted Filedbus Modules( FCM) and Z-module control processor 270(ZCP270)		PSS 21H-2Y10 B4
FCM2F2	8 Slots Vert. Baseplate, Time Strobe, 8 FBM			DIN rail Mounted Modular Baseplates provides the mounting platform and communication backplane for DIN rail Mounted Modules		PSS 21H-2W6 B4
FCM2F2	2KM Fiber Optic Fieldbus Extender			Communication interface provides baseplate-baseplatee fiber optic extension for the module fieldbus		PSS 21H-2Y3 B4
FCP270	Field Control Processor 270			Performs process control and alarming functions according to a user-defined control strategy.		PSS 21H-1B9 B4
