Specifications

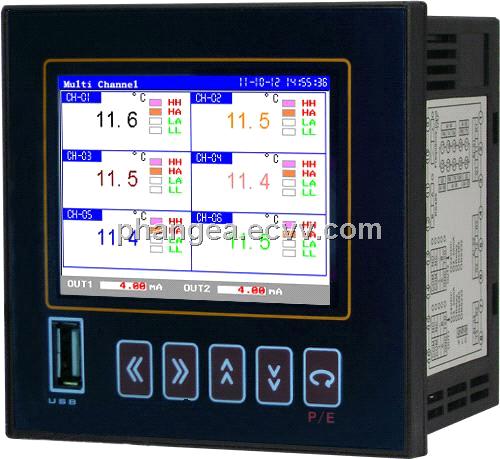

PRC6000 is mini economic true color paperless recorder, designed with modern advanced SMT technology and modular, to be designed lower power consumed, high accuracy, universal use, easy operation, to be aimed to monitor, record, analysis the processes in various industry application.
Application
Chemical,Petroleum, Pharmaceutical, Metallurgy, Marine, Sewage treament, Paper, Electricity, Nuclear power, Food, Cement, Building, aviation, Medical University and others industries application.
Features
Accuracy: +-(0.2%FS+1)digit
Size: 96x96x85mm
320x240 TFT true color LCD display
Universal input: T.C, RTD, mA, mV,V
Up to 6input channels, isolated ,selectable
8MB flash memory built in for long term recording
Various display: single &multi channel, trend, bargarph, circular chart display
Up to 2 relay alarm output, up to 4 limits alarm output per channels,optional
Up to 2 channels 4-20mA retransmission output for other device, optional
24/12/5VDC auxiliary power supply output for transmitter or device,optional
RS232 printing port to mini printer for data printing,optional
Flow totalizer with compensation, math, optional
Math Function: +, -. x, /, average, maximum, mininum, optional
Memoried Data transfered by USB driver automatically for PC software analysis
Real time data collection & monitor in PC by S485 or RS232 MODBUS-RTU for HMI, SCADA, OPC server etc
General Specification
Accuracy:
±(0.2%FS+1)digit
Power supply:
100-240VAC,50-60Hz; 24VDC
Power consumed:
max.5VA (5W)
Insulation:
Power to ground > 1500VAC
Power to housing > 1500VAC
Sample rate:
1second/ 6 channels
Number of inputs:
1, 2, 3, 4,5, 6 channels
Inputs signal:
T/C (K, S, B, E, J, N, T)
RTD (Pt100, CU50, CU100)
mA DC (4-20mA, 0-10 mA)
mV DC (0-5VDC, 1-5VDC)
0-20m V, 0-60m V, 0-100m V,0-500m V
Isolation input:
1000VAC between channels and GND
400VAC between channels
Input Independence:
0-5VDC and 1-5VDC input: 500KΩ
4-20mA input: 250 KΩ
0-10mA input: 500KΩ
Other signal input: 20MΩ
Output:
Relay, SPST /SPDT, up to 2 points
220VAC/3A, 30VDC/3A
4-20mA retransmission, 1 point, option
Auxiliary power supply, 1 point, option
5VDC, 12VDC, 24VDC for sensors
RS485 or RS232 serial port, option
RS232 printing port, option
USB data transfer port
Display Specification
Display:
3.2 inch, 320x240 TFT color LCD
Display rate:
1-3600s, configuration flexibly
Backlight life:
50,000hours
Display scaling:
-20000 to 20000
Screensaver:
0-30,000second, selectable
Engineer Unit:
70 units, customized further
Various screens:
Digital display: 1&6channels per screen
Trend display: 6channel per screen
Historical &real time data
Bargraph display, 6channels per screen
Circular chart display, 6 ch. Per screen
Memory Specification
Memory:
Flash memory with power off protection
Memory media:
USB flash drive, FAT16 format
Memory capacity:
8MB built in for long time memory
Record interval:
1 to 3600 seconds, settable flexibly
Record total time:
45days x record interval/channels no.
.................
