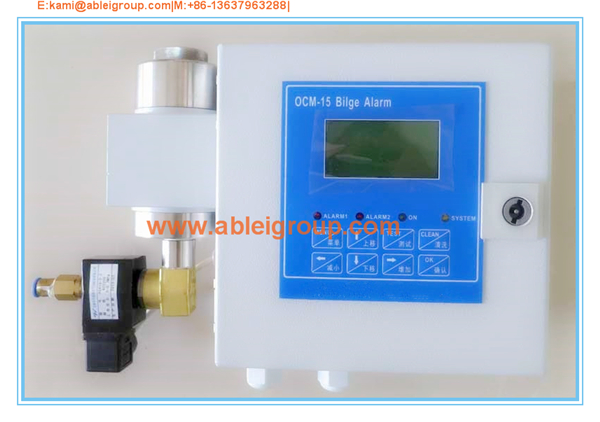

15 Ppm Bilge Alarm for Marine Oil Water Separator

Type:

OCM-15

Range:

0 – 30 mg/l can exceed to 50mg/l

Accuracy

Better than 5mg/l

Linearity

Better than 2 %

Display

LCD display

Power Supply:

220VAC/110VAC ± 10%

Consumption:

10 VA

Alarm Points:

1-15ppm

Alarm Points works set:

15ppm

Alarm 1 delay

0-10 second.

Alarm 2 delay

0-10 second

Alarm output

Two way relays output

Alarm relay output contact value

5A, 250VAC

Alarm relay output feedback signal test

Two way working status contact testing

Alarm Indication:

Red LED's

Output Signal:

4 - 20 mA, reversible Ri < 500?

Sample Water Pressure:

0.01 -6 bar

Sample Flow:

Approx. 0.2 - 4 l/min depend on pressure

Ambient Temperature:

0 to + 55° C

Sample Water Temperature:

+ 1 to + 80° C

Size (over all):

360 mm W x 240 mm H x 105 mm D

Degree of Protection:

IP 45

Weight:

8kg

Pipe Connections:

R 1/4" Female

Standard

IMO.Res.MEPC.107(49)
