Wuxi Friendship Machinery Co., Ltd.
China Manufacturer with main products: CNC Cutting Machine, Welding Machine, Shot Blasting Machine, Straightening Machine, Roll Forming Machine, Downpipe Gutter Machine, Beam... |

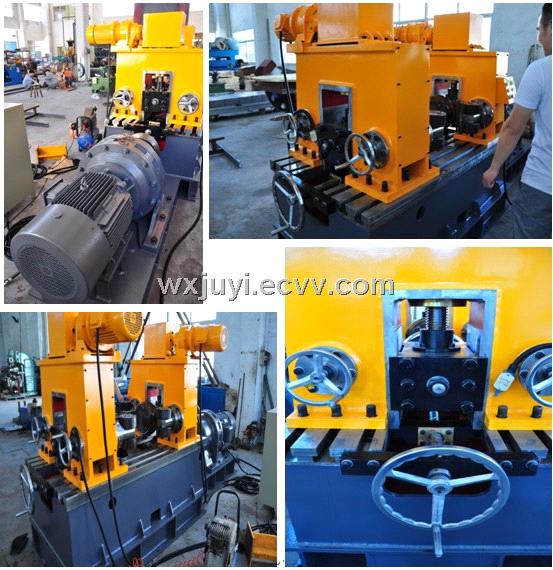

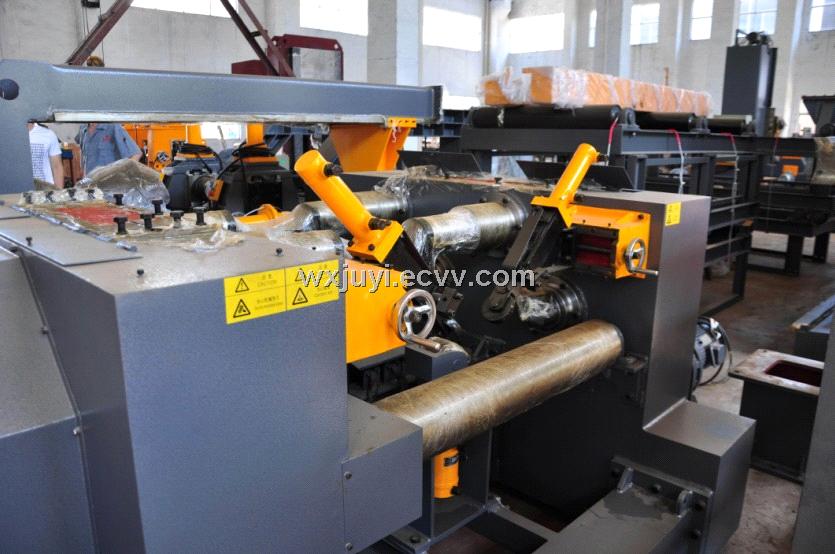

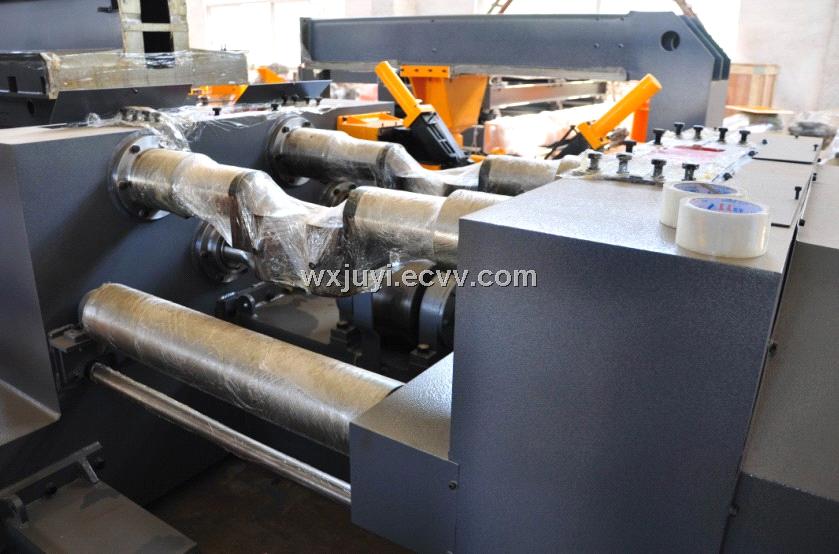

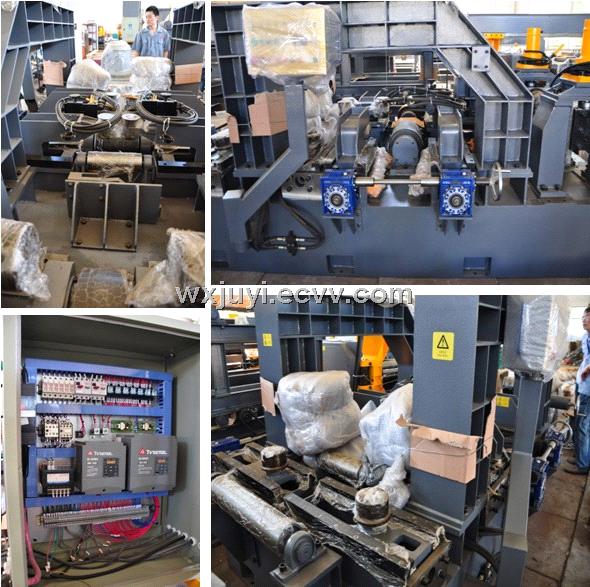

H Beam Assembly Machine
| FOB Price: | 22,000.00 - 24,000.00 USD/Set |
|---|---|
| Shipping: | 35 working days |
| Payment Terms: | L/C, T/T |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Jiangsu in China |
| Packaging Details: | standard packing |
Specifications
Key Specifications/Special Features:
- 3 models according to H-beam web height: 1500, 1800 and 2000mm
- Process including clamping and centering web and flange with hydraulic transmission
- Control system adapts Japanese Mitsubishi PLC controller

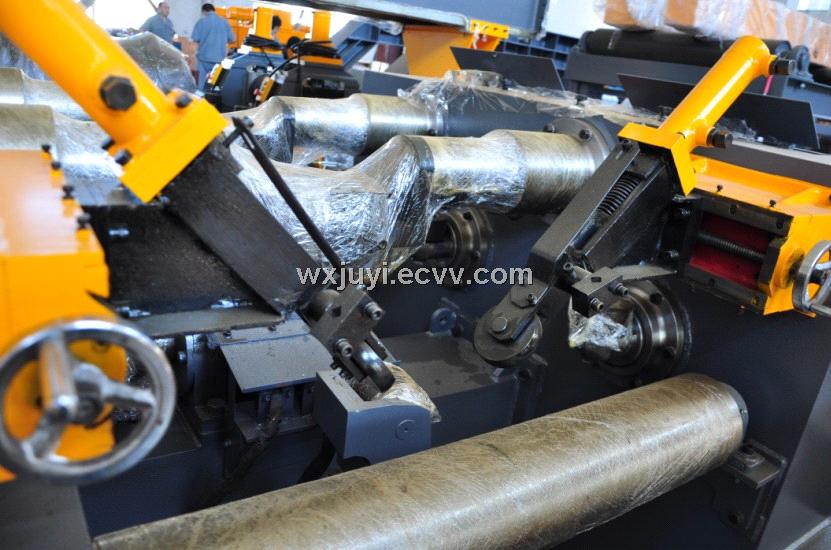

- Both sides clamped and aligned through mechanical system, ensuring positioning of web and flange of various width within specified range accurate automatic alignment, no need to adjust each time eccentricity roller
- Upper press beam adapted with right and left 4 groups of guide-way, ensuring pressing stability
- Automatic spot welding arc-tracing unit driven with light-duty oil cylinder, without compressed air input, output conveyor and inlet pulling rod system are in segments, length and quantity can be chosen according to workpiece length
-
Used for inching adjustment hydraulic stopping rack at both sides can ensure alignment of end side of web and flange during assembly
-
Main technical parameters:
|
Model
|
web specification
|
flange specification
|
H-beam Length
|
Power
|
Assembling speed
|
||
|
Thickness
|
Height
|
Thickness
|
Width
|
4000~15000mm
|
11.7kW
|
0.5-6m/min
|
|
