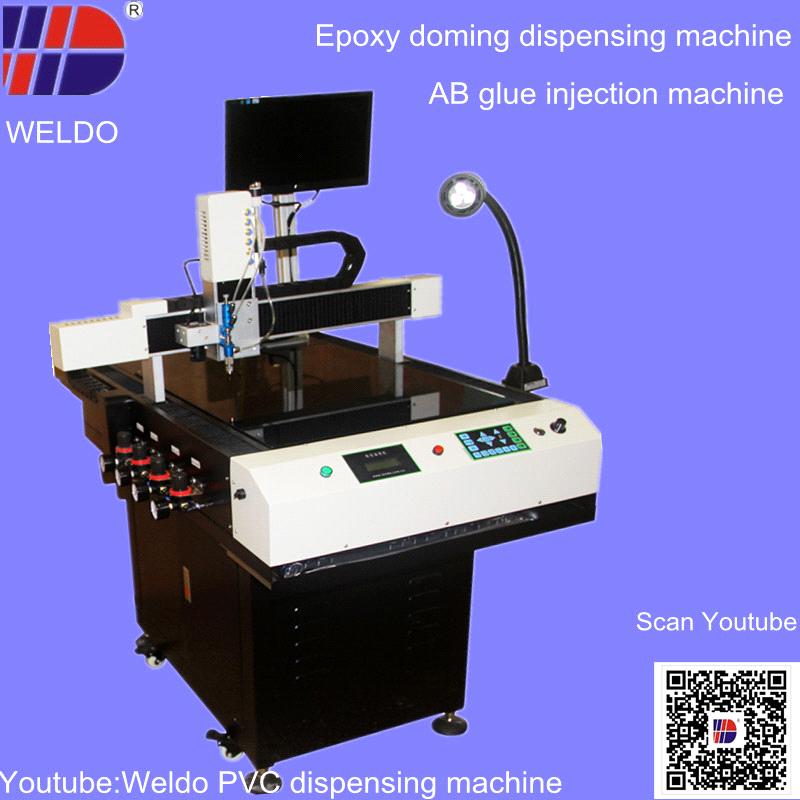

epoxy doming dispensing machine for metal badge

Supply Ability:	400 Set/Sets per Month
Shipping:	7 days after confirmation order
Payment Terms:	T/T

Inquiry Now

Related products from verified members

Laser Cut Metal Crafts

Price:

Min. Order:
Aluminum Cup 3

Price:

Min. Order:1500 Pieces
Cloisonne

Price:1.00 USD/shanghai

Min. Order:
metal labels

Price:

Min. Order:
Embossed Brass logo, Antique metal furniture pl...

Price:

Min. Order:

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Guangdong in China
Packaging Details:	Packing:paper&film&wooden case, meas:10293153cm, NW:260kg, GW:290kg. 1.45CBM.

Quick Details

Brand Name: WELDO
Model Number: WD500*600 AB
Range: 450*680*70mm
X,Y,Z Presision: +/-0.02mm
Transmission: servo motor+screw balling+square linear rail
Ratio: volume pump
ratio range: 1
Market: Plate labels, logos, name board,trademarks, promotion items,etc

Specifications

epoxy doming dispensing machine for metal badge

Technical details:
Ratio: volume pump

XYZ range: 450mm*680mm*70mm

XYZ transmission:servo motor + screw balling + square linear rail
XYZ precision: ±0.02mm

Controller:computer software program, down machine working without computer

Ratio range:1:1,1:2,1:3, customized is available

Mixing :static and dynamic mixing or selection dynamic mixing

Cleaning : manual

Convenient feeding system
Tube Teflon

Weight : 290kg

Working condition humidity :20-90%, temperature 0-40°C

Weldo WD500*60AB epoxy doming dispenser is applied stable volume
ratio pump providing required epoxy proportion,static mixing and dynamicmixing tube to achieve chemical A&B on-line mixed . planer type 3 axis ensure the machine sets position and injects glue automatically.

Application:

Weldo WD500*600 AB Epoxy doming dispenser is developed and
manufactured for covering epoxy on the top of plate labels ,logos name board , trademarks,promotion items etc. With several guns working at
one time ,specially developed for big orders. For complicated and sophisticated products that can use digital camera position setting block to achieve precision position setting.With Online chemical A&B mixing,quantity injection and camera visual correction,orbital injection 4 functions together to achieve working automatically.

Advantage:

1,IIPR(Independent Intellectual Property Rights) program software , easy operation, with a little training that can operate the machine .

2:IIPR(Independent Intellectual Property Rights) two-component ratio matching system,simple but high efficient, precise measurement.

3:Several guns working together, quantity injection stable and controllable.

4:Full series selection visual position block to achieve sophisticated products precision position setting, meanwhile to reduce the mold cost.

5:All liquid route system has constant temperature system to stop changeable environment temperature effecting the injection quantity of the glue.

6:Designed and developed for labor tensive industry, with high cost performance.

Production videos
If you want to know how machine work, please search "Weldo video" on Youtube.
Youtube name:Weldo PVC dispensing machine
Or scan Youtube code on the picture, will directly go in our Youtube.
