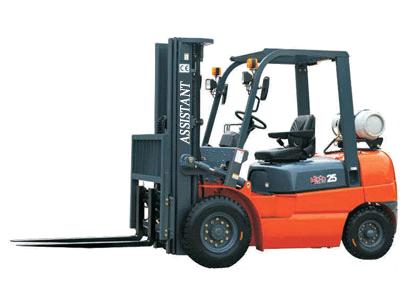

LPG Forklift Truck

Inquiry Now

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Shanghai in China

Specifications

POWERFUL ENGINE AND TRASMISSION SYSTEM
Power and transmission system is composed of excellent components by using advanced manufacturing technology and machine and high quality engine.

This combination mode the truck powerful and reliable.

STRICT ENVIRONMENT PROTECTION DESIGN
We applied a lot of strict environment friendly designs on our H2000 Series products. All these measures efficiently protect the user and the improve the environment.

SUPER CHARACTER
H2000 Series LPG forklift truck has super advantage in compatibility by using IMPOC Converter system. The strong point lies in that we imported the whole Converter system was integrated in one unit and passed the UL certificate.

LARGE VOLUME FILTER SYSTEM
Equipped with filter system with Chinese speciality -more impurity in the gas. VFF30 has large filtering face, higher filtering precision, lower inlet air pressure. It also equipped with vacuum switch off valve to cut off the gas supply.

^Model		^CPQY10	^CPQY15	^CPQY18	^CPQY20	^CPQY25	^CPQY30	^CPQY35	^CPQYD50	^CPQYD60	^CPQYD70
^Model		^CPQYD10	^CPQYD15	^CPQYD18	^CPQYD20	^CPQYD25	^CPQYD30	^CPQYD35	^CPQYD50	^CPQYD60	^CPQYD70
^{Power type}		^LPG
^{Load capacity}	^kg	¹⁰⁰⁰	¹⁵⁰⁰	¹⁷⁵⁰	²⁰⁰⁰	²⁵⁰⁰	³⁰⁰⁰	³⁵⁰⁰	⁵⁰⁰⁰	⁶⁰⁰⁰	⁷⁰⁰⁰
^{Load center}	^mm	⁵⁰⁰							⁶⁰⁰
^{Max. Lifting height}	^mm	³⁰⁰⁰
^{Free lifting height}	^mm	¹⁵⁵					¹⁶⁰	³⁰⁵	¹⁹⁵	²⁰⁰	²⁰⁵
^{Lifting speed}	^mm/s	^580/620			^550/600		^500/550	^310/340	^320/430		^220/250
^{(with/without load)}	^mm/s	^580/620			^550/600		^500/550	^310/340	^320/430		^220/250
