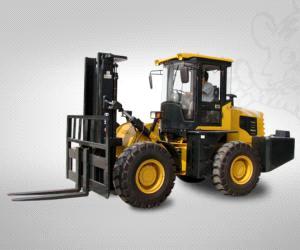

Articulated Forklift - CPCY50

Inquiry Now

Place of Origin:	Shanghai in China

Specifications

The main parameters CPCY50
				unit	numerical
1	Limit load			KG	5000
2	length	No fork		MM	4375/4455
2	length	Belt fork		MM	5655/5735
3	width			MM	2185
4	height	Door frame height		MM	3100
		Height bridge		MM	3125
		When maximum lifting height
5	wheelbase			MM	2185
6	Before hanging distance			MM	880
7	Front wheel tread			MM	1575
8	Wheel track after			MM	1545
	Ground clearance		The door frame bottom (light/load)	MM	305/285
			At the center of the wheel base (light/load)	MM	305/285
10	Maximum lifting height			MM	4000
	The door frame top rake/door frame caster Angle
	Standard no load state of the overall quality
	No load maximum lifting speed
14	Load maximum lifting speed			MM/s	300
15	No load maximum rate of descent			MM/s	300
16	Load maximum rate of descent			MM/s	450
17	minimum turning radius			MM	5290
18	No load its maximum speed			KM/H	20
19	With its maximum speed			KM/H	17
20	Gradeability			%	20
21	Load maximum traction hook			KN	30
	Load center distance			MM	500
	Engine or walk motor model specifications
20	Drive motor 5 min duty current			A	----
