Dongguan Yuanyao Electronics Technology Co., Ltd.
China Manufacturer with main products: Temperature Humidity Chamber, Industrial Hot Oven, Ozone Test Chamber, Salt Spray Test Chamber, Dust Test Chamber, Glue-Dispensing Robot,... |

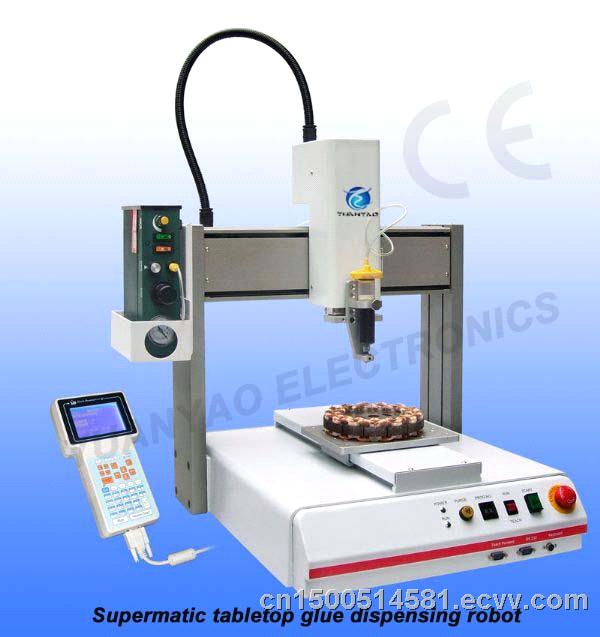

Epoxy dispensing robot
| FOB Price: | 5,000.00 - 10,000.00 USD/Set |
|---|---|
| Supply Ability: | 100 Set/Sets per Month |
| Shipping: | 15-20 working days after receipt of down payment |
| Payment Terms: | L/C, T/T, Paypal, Western Union |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Guangdong in China |
| Packaging Details: | Well packed in strong wooden case for long distance shipment |
Specifications
Main features of Epoxy dispensing robot:
1. Keyboard control in English version, easy operation and maintenance.
2. Major functions: Drawing point, line, surface, arc, circle, irregular curve continuous complement and triaxial linkage.
3. Equipped with pro. software that has area display, translation rotating operation functions.
4. Be able to set size of gluing area, speed of gluing, dispensing time, stopping glue time. Stable glue exudation without glue leaking and dripping.
5. According to the production process, work platform can be installed with positioning PIN, glue guns, baseboard heating temperature controlling device.
6. General applications: Widely applied to fluid dispensing, e. G.: UV glue, AB glue, EPOXY(black glue), white glue, EMI conductive glue, silicon, epoxy resin, instant glue, silver glue, red glue, paste, thermal grease, welding control paste, transparent paint, screw fixative...
7. Applicable objects: Mobile phones, computer case, CD-ROM driver, printer, ink folder, PCB board, LCD, LED, DVD, digital camera, switches, connectors, relays, radiators, semiconductors, clocks, toys and medical appparutus.
1. Keyboard control in English version, easy operation and maintenance.
2. Major functions: Drawing point, line, surface, arc, circle, irregular curve continuous complement and triaxial linkage.
3. Equipped with pro. software that has area display, translation rotating operation functions.
4. Be able to set size of gluing area, speed of gluing, dispensing time, stopping glue time. Stable glue exudation without glue leaking and dripping.
5. According to the production process, work platform can be installed with positioning PIN, glue guns, baseboard heating temperature controlling device.
6. General applications: Widely applied to fluid dispensing, e. G.: UV glue, AB glue, EPOXY(black glue), white glue, EMI conductive glue, silicon, epoxy resin, instant glue, silver glue, red glue, paste, thermal grease, welding control paste, transparent paint, screw fixative...
7. Applicable objects: Mobile phones, computer case, CD-ROM driver, printer, ink folder, PCB board, LCD, LED, DVD, digital camera, switches, connectors, relays, radiators, semiconductors, clocks, toys and medical appparutus.
General specifications of Epoxy dispensing robot
| Model | PY-220D | PY-330D | PY-440D | PY-550D |
| Work Area | 200*200*100mm | 300*300*100mm | 400*400*100mm | 500*500*100mm |
| Travel speed | 500mm/sec | |||
| Resolution | 0.02mm | |||
| Repeatability | ±0.02mm | |||
| Operator system | LCD panel/keyboard | |||
| Drive Mode | Micro stepping motor/belt | |||
| Power | AC220V 50-60Hz 0.8KW | |||
| Size | 380*370*500mm | 480*500*600mm | 580*600*600mm | 640*700*720mm |
| Weight | 20KG | 30KG | 40KG | 50KG |
| Work Condition | Temperature:0-40°C, Moisture:20-90%RH | |||
Besides the Epoxy dispensing robot, we are also manufacturing:
Temperature & humidity test Chamber, Temperature & humidity Control Host, Walk In environmental Test Room, Precision hot air Oven, Salt Spray Tester, dustproof hot Oven, Rain/Spray Test Chamber, Dust Tester,Glue dispensing machine, Air Thermal Shock Tester, Liquid Thermal Shock Tester, Temperature humidity & Vibration Combined Testing Chamber, Burn-in testing equipment, Steam Aging Tester, Electromagnetic High Frequency Vibration Tester, Tensile Tester, Drop Tester, etc.
Other styles with different configurations are available upon request, welcome to enquire and purchase!
