Shenzhen Wanqiu Electronics Co., Ltd.
China Manufacturer with main products: Power Adapter, Speaker, Loudspeakers, Charger, AC/DC Power Adapter, Switching Power Supply, Mylar Speaker, Trumpet |

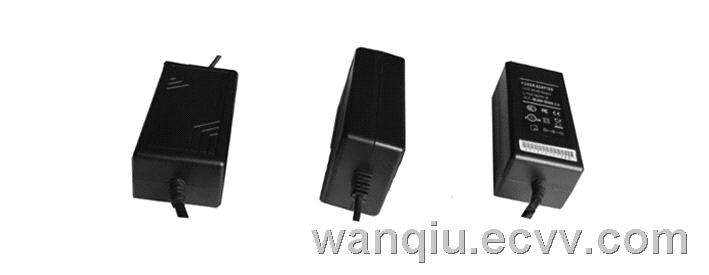

Digital Camera Charger
| FOB Price: | 0.10 - 1.00 USD/Piece |
|---|---|
| Supply Ability: | 50,000 Piece/Pieces per Week |
| Shipping: | 2~4 weeks |
| Payment Terms: | T/T |
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Guangdong in China |
| Packaging Details: | stable |
Specifications
Features:
* 100~240VAC input
* Small size, low weight and high efficiency
* Protection feature: short circuit, overload protection
* Natural air cooling system
* 100% full load burn-in test
* 1year warranty
* Size: 98×52×32mm
Specification
| Model No. | WQ-208 | ||||
| Output | DC output voltage | 9V | 12V | 15V | 24V |
| Output voltage Tolerance | ±1% | ±1% | ±1% | ±1% | |
| Rated output current | 2.5A | 2A | 1.5A | 1A | |
| Output current | 0~2.5A | 0~2A | 0~1.5A | 0~1A | |
| Output power | 22.5W | 24W | 22.5W | 24W | |
| Mvp-p | 90mVp-p | 120mVp-p | 150mVp-p | 200mVp-p | |
| DC voltage adjustable range | ±5% | ±5% | ±5% | ±5% | |
| Start, rise, maintain time | 1000ms, 30ms, 50ms/230VAC. | ||||
| Input | Input voltage | 100～240VAC 47～63Hz | |||
| AC Input current | Max 0.45A | ||||
| Efficiency | ≥78% | ≥80% | ≥83% | ≥85% | |
| Surge current | 40A/230V; Cold start | ||||
| Leakage current | <3.5mA/240VAC | ||||
| Protection Features | Overload protection | 115%~135% of Rated output power start overload protection | |||
| Protection way: hiccup mode, will recovery after removed abnormal load conditions. | |||||
| Over-voltage protection | 115%~135% Cutting output, automatic recovery | ||||
| Over-temperature protection | ≥105℃ Cutting output, automatic recovery | ||||
| Environment | Operating temperature & humidity | -10℃～+60℃; 20%～90%RH | |||
| Security | Pressure resistance |
Input and output: 1.5KVAC Input and earth: 1.5KVAC Output and earth: 0.5KVAC |
|||
| Insulation Resistance | Input and output: input and earth, output and earth: 100M Ohms/500VDC | ||||
| Others | Weight/ Package | 0.171kg/100PCS/17.1kg/20.4kg carton size:44*42.5*31.3cm | |||
Note:
1. All parameters are tested under the condition of 230V ac Voltage, rated load and 25℃ if no any particular mark.
2. Mvp-P is measured in 20Mhz with wide oscilloscope, and 12inches twisted-pair cable which with 0.1u and 47u capacitance in its end.
3. Tolerance is the sum total of the voltage setting error, voltage regulation and current regulation.
