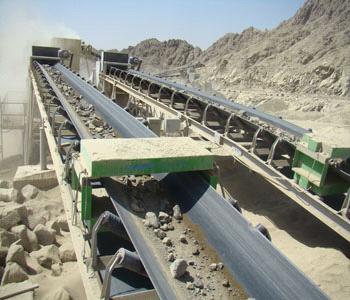

Introduction of Belt conveyor

Belt conveyor (Belt conveyer) is the materiel transporting machine which transports the materiel in a certain line. Conveyor belt also can be named continuous conveyor. The Belt conveyor can carry horizontal, oblique and vertical transporting and also can be composed into a space conveying line. This conveying line generally is fixed. The Belt conveyor's conveying ability is big and conveying distance is long. Belt conveyor also can complete several technological operations in the conveying process, so it is widely used in all kinds of industry.

The conveyor mainly has the following type: Belt conveyor, Plate conveyor, Scraper conveyor, Bucket conveyor, Overhead chain conveyor, etc.

Technical parameters of belt conveyor

Belt width(mm)	Conveying length(m) Power(kw)			Conveying speed(m/s)	Conveying amount(t/h)
500	<=12 3	12-20 4-5.5	20-30 5.5-7.5	1.3-1.6	78-191
650	<=12 4	12-20 5.5	20-30 7.5-11	1.3-1.6	131-323
800	<=6 4	6-15 5.5	15-30 7.5-15	1.3-1.6	278-546
1000	<=10 5.5	10-20 7.5-11	20-40 11-22	1.3-2.0	435-853
1200	<=10 7.5	10-20 11	20-40 15-30	1.3-2.0	655-1284
1400	<=10 11	10-20 18.5	20-40 22-37	1.3-2.0	893-1745
1600	<=10 15	10-20 22	20-40 30-45	1.3-2.0	1069-2195
