Specifications
Specifications
1.Large inhaling capacity flotation machine
2.Low consumption, reasonable circulation
3.ISO,CE,BV approved
1.Large inhaling capacity flotation machine
2.Low consumption, reasonable circulation
3.ISO,CE,BV approved

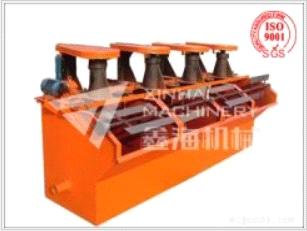

Flotation Machine
1.Large inhaling capacity flotation machine
2.Low consumption, reasonable circulation
3.ISO,CE,BV approved
1.Large inhaling capacity flotation machine
2.Low consumption, reasonable circulation
3.ISO,CE,BV approved
1. Brief introduction of flotation machine
Flotation Machine can be used to separate non-ferrous metal, ferrous metal, noble metal, non-metallic mine, chemical material. It can be used in roughing, scavenging, selection or reverse flotation. In the flotation process, after being mixed with drug, some qualified mineral attaches on bubble, floats on the surface of slurry and is scraped out, other mineral still stays in the slurry, so the separating purpose is finished.
Flotation Machine can be used to separate non-ferrous metal, ferrous metal, noble metal, non-metallic mine, chemical material. It can be used in roughing, scavenging, selection or reverse flotation. In the flotation process, after being mixed with drug, some qualified mineral attaches on bubble, floats on the surface of slurry and is scraped out, other mineral still stays in the slurry, so the separating purpose is finished.
2. Working Principle of flotation machine
The impeller is rotated by V-belt of motor and produces negative pressure by centrifugal function. Enough air is sucked to mix slurry, and slurry mixes drug at the same time. Mineral sticks on bubble completely and floats on the surface of slurry to form mineralized bubble. Useful bubble is scraped out by adjusting flashboard height and controlling liquid surface.
3. Features of flotation machine
1).Large inhaling capacity and low consumption.
2).Complete flotation circuit with inhaling air and slurry, no auxiliares are needed.
3).Process is easy to be changed.
4).Reasonable circulation of slurry decreases coarse sand sedimentation.
5).Automatic controlling device makes adjustment more convenient.
4. Types of flotation machine
We have various of flotation machine, such as SF0.37, SF0.7, SF1.2, SF2.8, XJK-0.13(1A), XJK-0.35(3A), XJK-0.62(4A), XJK-1.1(5A), XJK-2.8(6A) etc.
The impeller is rotated by V-belt of motor and produces negative pressure by centrifugal function. Enough air is sucked to mix slurry, and slurry mixes drug at the same time. Mineral sticks on bubble completely and floats on the surface of slurry to form mineralized bubble. Useful bubble is scraped out by adjusting flashboard height and controlling liquid surface.
3. Features of flotation machine
1).Large inhaling capacity and low consumption.
2).Complete flotation circuit with inhaling air and slurry, no auxiliares are needed.
3).Process is easy to be changed.
4).Reasonable circulation of slurry decreases coarse sand sedimentation.
5).Automatic controlling device makes adjustment more convenient.
4. Types of flotation machine
We have various of flotation machine, such as SF0.37, SF0.7, SF1.2, SF2.8, XJK-0.13(1A), XJK-0.35(3A), XJK-0.62(4A), XJK-1.1(5A), XJK-2.8(6A) etc.
5. Parameters
|
Model
|
Volume
|
Impeller dia(mm)
|
Capacity(m3/min)
|
Impeller speed(r/min)
|
Scraper speed(r/min)
|
Dimensions
L*W*H(mm)
|
Weight(t)
|
|
XJK-0.13(1A)
|
0.13
|
200
|
0.05-0.16
|
600
|
17.5
|
2110*865*990
|
0.35
|
|
XJK-0.23(2A)
|
0.23
|
250
|
0.12-0.28
|
500
|
17.5
|
2625*1130*1290
|
0.42
|
|
XJK-0.35(3A )
|
0.35
|
300
|
0.18-0.4
|
470
|
17.5
|
3012*1350*1327
|
0.45
|
|
XJK-0.62(4A)
|
0.62
|
350
|
0.3-0.9
|
400
|
26
|
3798*1464*1530
|
0.85
|
|
XJK-1.1(5A)
|
1.1
|
500
|
0.6-1.6
|
330
|
26
|
4679*1820*1942
|
1.24
|
|
XJK-2.8(6A)
|
2.8
|
600
|
1.5-3.5
|
280
|
26
|
7750*1600*1100
|
2.43
|
